Introduction
In high-pressure pipeline systems, valve reliability directly affects the safety and efficiency of the entire process. Industries such as oil & gas transportation, natural gas transmission, LNG, and petrochemical processing require valves that can withstand high pressure, temperature variations, and long-term continuous operation.

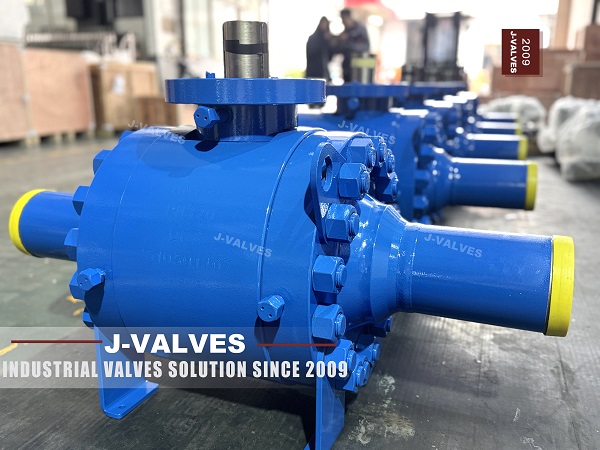

The Welded Trunnion Mounted Ball Valve is designed to provide excellent mechanical strength, reliable sealing performance, and reduced maintenance requirements. The valve shown in the image features a 3-piece welded end structure, LF2 low-temperature carbon steel material, and trunnion mounted ball design, making it suitable for demanding pipeline applications.
J-VALVES specializes in manufacturing high-performance welded trunnion mounted ball valves according to international standards, providing reliable solutions for critical energy and industrial projects.
What Is a Welded Trunnion Mounted Ball Valve?
A Welded Trunnion Mounted Ball Valve is a fixed ball valve with welded pipe ends instead of traditional flanged connections. The ball is supported by upper and lower trunnions, allowing it to remain stable under high-pressure conditions.
Unlike floating ball valves, the trunnion design transfers the pressure load from the ball to the trunnion support system, reducing seat stress and operating torque.
Main components include:
Fixed trunnion-supported ball
Welded valve body
Stem and anti-blowout structure
Double sealing seats
Fire-safe sealing system
Actuator mounting platform
This design makes it an ideal choice for large diameter and high-pressure pipeline systems.
Key Advantages of Welded Trunnion Mounted Ball Valves
1. Superior Strength for High Pressure Applications
The welded body structure provides excellent mechanical integrity compared with traditional bolted valve designs.
Advantages include:
Reduced potential leakage points
Improved structural strength
Better resistance to pipeline stress
Suitable for high-pressure environments
The LF2 material shown in the image is commonly used for low-temperature and high-pressure applications due to its excellent toughness and reliability.
2. Reliable Sealing Performance
The trunnion mounted design provides stable sealing performance even under high-pressure operation.
The pressure-assisted seat structure helps maintain tight sealing by pushing the seat toward the ball when pipeline pressure increases.
Benefits include:
Low leakage performance
Stable shut-off capability
Long sealing service life
Reliable operation under pressure fluctuations
For critical pipeline isolation, welded trunnion ball valves provide enhanced safety and operational reliability.
3. Low Operating Torque
Because the ball is supported by trunnions, the valve requires less torque compared with floating ball valve designs.
This provides:
Smaller actuator requirements
Easier operation for large sizes
Reduced operating energy consumption
Improved automation efficiency
The low torque feature makes welded trunnion mounted ball valves widely used in long-distance pipeline systems.
Welded End Design Advantages
The welded connection design eliminates the need for additional flange connections, providing several benefits.
1. Reduced Leakage Risk
Compared with flanged connections, welded ends reduce external leakage points and improve system integrity.
2. Space Saving Installation
The compact welded structure is suitable for:
Underground pipelines
Long-distance transmission lines
Limited installation areas
3. Long-Term Reliability
A welded connection provides excellent resistance against vibration, temperature cycling, and external mechanical stress.
Applications of Welded Trunnion Mounted Ball Valves
Oil and Gas Transmission Pipelines
These valves are widely used in:
Natural gas pipelines
Crude oil transportation systems
Compressor stations
Pipeline isolation points
Their high-pressure capability and reliable sealing performance ensure safe fluid control.
LNG and Low Temperature Systems
With suitable low-temperature materials such as LF2 carbon steel, welded trunnion mounted ball valves can be applied in:
LNG transportation systems
Cryogenic process pipelines
Gas processing facilities
The material provides excellent impact toughness and stable performance under low-temperature conditions.
Petrochemical Industry
Petrochemical systems often require valves that can handle high pressure and continuous operation.
Typical applications include:
Process pipelines
Storage systems
Refinery units
J-VALVES Advantages in Welded Trunnion Mounted Ball Valve Manufacturing
As a professional industrial valve manufacturer, J-VALVES provides customized welded trunnion mounted ball valve solutions for global energy and industrial markets.
1. Professional High Pressure Valve Manufacturing
J-VALVES has extensive experience in producing:
Trunnion mounted ball valves
Welded end ball valves
High pressure pipeline valves
Low-temperature service valves
2. Advanced Material Selection
According to application requirements, J-VALVES provides various material options, including:
LF2 low-temperature carbon steel
WCB carbon steel
Stainless steel
Duplex stainless steel
Special alloys
Material selection is optimized according to pressure, temperature, and operating media.
3. Strict Quality Control
Each welded trunnion mounted ball valve undergoes comprehensive inspection, including:
Material verification
Pressure testing
Seat leakage testing
Dimensional inspection
Functional operation testing
These procedures ensure reliable performance before delivery.
4. International Standard Compliance
J-VALVES welded trunnion mounted ball valves can be manufactured according to international standards, including:
API 6D
ASME B16.34
ISO 17292
NACE MR0175 (when required)
Conclusion
The Welded Trunnion Mounted Ball Valve is a reliable solution for high-pressure and long-distance pipeline applications. With its fixed ball structure, welded body design, low operating torque, and excellent sealing capability, it provides safe and efficient flow control for oil & gas, LNG, and petrochemical systems.
Through advanced manufacturing technology, professional engineering support, and strict quality management, J-VALVES delivers high-performance welded trunnion mounted ball valves designed for demanding industrial applications worldwide.
