Introduction
In industrial piping systems, valves are required to provide reliable shut-off performance, easy operation, and long service life under various working conditions. The Floating Ball Valve is one of the most widely used valve solutions due to its simple structure, excellent sealing capability, and cost-effective design.

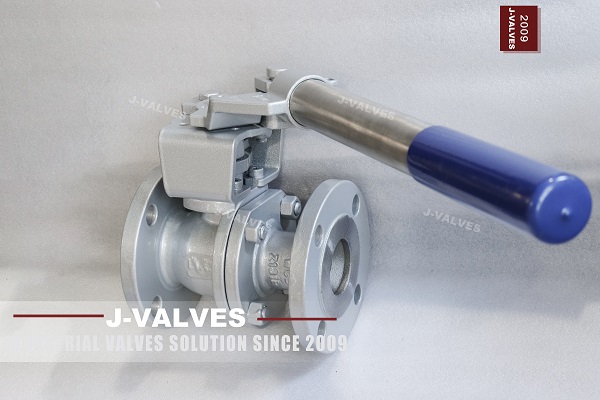

The floating ball valve shown in the image features a 2-piece body structure, WCB carbon steel material, flanged connection, and manual lever operation, making it suitable for general industrial applications such as oil & gas, chemical processing, water systems, and process pipelines.
J-VALVES specializes in manufacturing high-quality floating ball valves with reliable performance, strict quality control, and customized solutions for global industrial customers.
What Is a Floating Ball Valve?
A Floating Ball Valve is a type of quarter-turn valve where the ball is not fixed by a shaft or trunnion support. Instead, the ball is free to move slightly inside the valve body.
When the valve is closed, upstream pressure pushes the ball toward the downstream seat, creating a tight sealing force. This pressure-assisted sealing design allows the valve to achieve reliable shut-off performance.
Main components include:
Floating ball
Valve body
Stem
Seat rings
Sealing system
Handle or actuator
Due to its simple and compact structure, floating ball valves are widely used in low to medium pressure applications.
Key Advantages of Floating Ball Valves
1. Excellent Sealing Performance
One of the most important advantages of a floating ball valve is its reliable sealing capability.
When pipeline pressure increases, the floating ball moves slightly toward the seat, improving the sealing force.
Benefits include:
Tight shut-off performance
Reduced leakage risk
Reliable operation under pressure changes
Long sealing service life
This makes floating ball valves suitable for applications requiring frequent opening and closing operations.
2. Compact Design and Easy Maintenance
Compared with trunnion mounted ball valves, floating ball valves have a simpler structure with fewer internal components.
Advantages include:
Compact installation size
Lower maintenance requirements
Easy inspection and repair
Reduced overall equipment cost
The 2-piece body design shown in the image provides convenient assembly and maintenance while maintaining good mechanical strength.
3. Low Operating Torque
The quarter-turn operation design allows quick valve operation with minimal effort.
The floating ball valve provides:
Fast opening and closing
Simple manual operation
Easy actuator installation
Efficient flow control
For automated systems, pneumatic or electric actuators can be installed according to customer requirements.
Material Advantages of WCB Floating Ball Valve
The valve shown in the image uses WCB carbon steel, which is widely applied in industrial valve manufacturing.
WCB material provides:
Good mechanical strength
Reliable pressure resistance
Excellent cost performance
Suitable performance in general industrial environments
Typical applications include:
Oil pipeline systems
Gas processing equipment
Chemical plants
Industrial water systems
For more corrosive applications, J-VALVES can provide alternative materials such as stainless steel, duplex stainless steel, and special alloys.
Applications of Floating Ball Valves
Oil and Gas Industry
Floating ball valves are widely used in:
Fuel pipelines
Gas distribution systems
Process equipment
Utility systems
Their reliable shut-off capability helps improve system safety and operational efficiency.
Chemical Processing Systems
Chemical plants require valves with stable sealing performance and corrosion resistance.
Floating ball valves are commonly installed in:
Chemical transfer pipelines
Storage systems
Process control systems
Water Treatment and Industrial Applications
Due to their simple structure and easy operation, floating ball valves are also widely used in:
Water supply systems
Cooling water pipelines
Industrial equipment connections
Design Features of J-VALVES Floating Ball Valves
J-VALVES focuses on manufacturing reliable industrial valve solutions with optimized design and strict quality management.
1. Two-Piece Body Construction
The 2-piece body design provides:
Strong pressure capability
Convenient maintenance
Reliable structural performance
2. Advanced Sealing Technology
J-VALVES floating ball valves are designed with optimized sealing systems to ensure:
Stable shut-off performance
Reduced seat wear
Improved service life
Different sealing materials can be selected according to temperature and media requirements.
3. Flexible Operation Options
J-VALVES provides various operation solutions:
Manual lever operation
Gear operation
Pneumatic actuator
Electric actuator
This allows the valve to meet different industrial automation requirements.
J-VALVES Advantages in Floating Ball Valve Manufacturing
As a professional industrial valve manufacturer, J-VALVES provides customized floating ball valve solutions for international markets.
Professional Manufacturing Capability
J-VALVES controls the complete production process, including:
Material inspection
Precision machining
Assembly control
Pressure testing
Final performance inspection
Customized Engineering Support
Solutions can be customized according to:
Pressure class
Connection standards
Temperature requirements
Valve materials
Actuation methods
International Standard Compliance
J-VALVES floating ball valves can be designed according to international standards, including:
API 6D
ASME B16.34
ISO 17292
Conclusion
The Floating Ball Valve is a reliable and economical solution for industrial flow control applications. With excellent sealing performance, compact structure, low operating torque, and easy maintenance, it is widely used in oil & gas, chemical, water treatment, and general industrial systems.
Through advanced manufacturing technology, strict quality inspection, and professional engineering support, J-VALVES delivers high-performance floating ball valve solutions designed for reliable operation in global industrial applications.
