Introduction
In modern industrial pipeline systems, reliable flow control and safe shut-off performance are essential for ensuring continuous operation. For large-diameter and high-pressure applications, the Trunnion Mounted Ball Valve has become one of the most widely used valve solutions due to its excellent mechanical stability, low operating torque, and long service life.

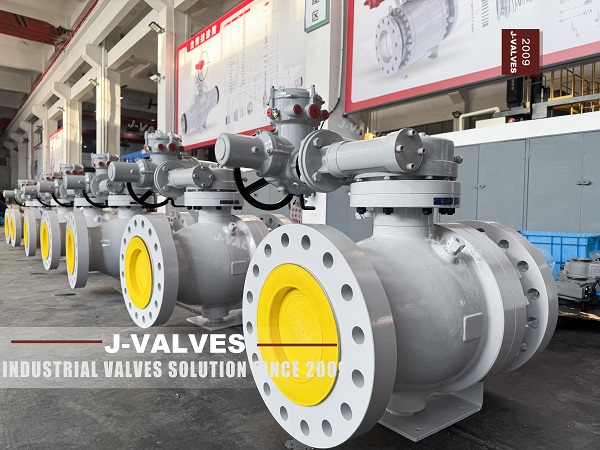

The valve shown in the image is a 10” 600LB WCB Carbon Steel Trunnion Mounted Ball Valve with electric actuator, designed for demanding industrial applications. With a robust carbon steel body, fixed ball structure, and automated operation system, this valve provides reliable performance for oil & gas pipelines, energy projects, petrochemicalfacilities, and industrial process systems.
J-VALVES specializes in manufacturing high-performance ball valve solutions, providing customized Carbon Steel Trunnion Mounted Ball Valves for global industrial applications.
What Is a Trunnion Mounted Ball Valve?
A Trunnion Mounted Ball Valve is a type of fixed ball valve where the ball is supported by two trunnions at the top and bottom. Unlike floating ball valves, the ball does not move with pipeline pressure.
This design provides several advantages:
Reduced operating torque
Improved pressure handling capability
Stable sealing performance
Suitable for large-size and high-pressure applications
The main components include:
Carbon steel valve body
Fixed ball
Trunnion support system
Seat rings
Stem assembly
Electric actuator
Key Advantages of Carbon Steel Trunnion Mounted Ball Valve
1. Excellent Performance for High Pressure Applications
The valve shown in the image adopts a 600LB pressure class design, making it suitable for high-pressure pipeline systems.
The WCB carbon steel body provides:
High mechanical strength
Good pressure resistance
Reliable structural integrity
Long service life
This makes carbon steel trunnion ball valves ideal for oil transmission, gas pipelines, and industrial process systems.
2. Stable Sealing Performance
One of the most important features of a trunnion mounted ball valve is its reliable sealing system.
The fixed ball structure reduces unnecessary movement and helps maintain consistent contact between the ball and seats.
Advantages include:
Reduced seat wear
Improved leakage control
Reliable shut-off performance
Better performance under pressure fluctuations
For critical pipeline isolation, this design provides enhanced operational safety.
3. Low Operating Torque and Automation Capability
Large-diameter valves often require significant operating force. The trunnion design reduces the load transferred to the valve stem.
Benefits include:
Lower operating torque
Smaller actuator requirements
Smooth opening and closing operation
Improved automation efficiency
The electric actuator configuration shown in the image allows remote operation and integration into automated control systems.
Structural Features of WCB Trunnion Mounted Ball Valve
1. Robust Carbon Steel Body
WCB carbon steel is widely used in industrial valves due to its excellent balance of strength, durability, and cost efficiency.
Typical advantages:
Strong pressure boundary
Good mechanical properties
Suitable for general industrial media
Reliable performance in harsh environments
2. Double Block and Bleed Capability
Many trunnion mounted ball valves can be designed with double block and bleed functionality.
This allows operators to:
Isolate upstream and downstream pressure
Release trapped cavity pressure
Verify sealing performance
This feature is especially valuable in oil & gas and energy applications.
3. Electric Actuation Design
The electric actuator improves operational efficiency by providing:
Remote control capability
Automated pipeline operation
Accurate valve positioning
Reduced manual operation requirements
It is widely applied in modern industrial automation systems.
Applications of Carbon Steel Trunnion Mounted Ball Valves
Oil and Gas Industry
Carbon steel trunnion ball valves are commonly used in:
Transmission pipelines
Compressor stations
Gas processing facilities
Oil transportation systems
Their high-pressure capability and reliable sealing make them suitable for critical pipeline services.
Petrochemical Industry
In petrochemical plants, these valves are used for:
Process isolation
Fluid transportation
Equipment protection systems
The robust design helps maintain safe and stable operation.
Power and Industrial Energy Systems
Trunnion mounted ball valves are also widely installed in:
Fuel systems
Industrial gas systems
Large pipeline networks
J-VALVES Advantages in Trunnion Mounted Ball Valve Manufacturing
1. Professional Ball Valve Engineering Experience
J-VALVES provides customized trunnion mounted ball valve solutions based on:
Pressure class requirements
Pipeline size
Operating temperature
Medium characteristics
Actuation requirements
2. Strict Quality Control
Each valve is manufactured with comprehensive inspection procedures, including:
Material inspection
Machining inspection
Pressure testing
Seat leakage testing
Functional operation testing
This ensures reliable performance before delivery.
3. Customized Industrial Valve Solutions
J-VALVES can provide:
Carbon steel trunnion mounted ball valves
Stainless steel ball valves
Low-temperature ball valves
DBB ball valve designs
Manual or actuated valve solutions
Products can be manufactured according to international standards such as:
API 6D
ASME B16.34
ISO 17292
Conclusion
The Carbon Steel Trunnion Mounted Ball Valve is an ideal solution for high-pressure and large-diameter pipeline applications. With its fixed ball structure, reliable sealing performance, low operating torque, and automation capability, it provides safe and efficient operation for demanding industrial systems.
Through professional engineering expertise, advanced manufacturing technology, and strict quality management, J-VALVES delivers reliable trunnion mounted ball valve solutions for oil & gas, petrochemical, energy, and industrial pipeline applications worldwide.
