Oil and gas industries operate with high‑risk fluid transportation. Pipelines, gathering stations and processing plants demand extreme safety and durability for every valve component. Many EPC contractors and project owners directly specify API 6D certified 2‑piece (2PC) floating ball valves instead of ordinary standard ball valves. Even though both belong to ball valve category, why does the oil‑gas sector favor API 6D two‑piece floating ball valves? This article compares standards, structure, field adaptability and life‑cycle maintenance cost.
I. What Is API 6D Certified 2‑Piece Floating Ball Valve
1. What Does API 6D Standard Mean
API 6D is a special specification published by American Petroleum Institute for pipeline valves applied to oil and natural gas transmission. This specification enforces strict requirements on shell strength, pressure‑temperature rating, fire‑safe test, anti‑static structure, service life cycle and field repairability. API 6D certification proves the valve has passed full validation for harsh pipeline service, different from general‑purpose industrial valve standards.

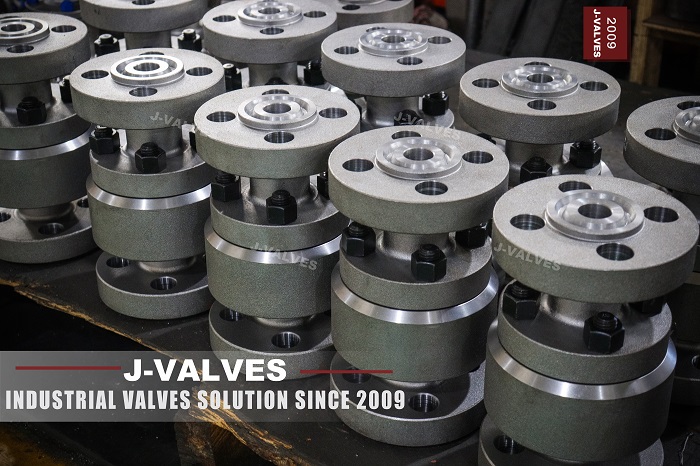

2. Structural Advantages of 2‑Piece Floating Ball Valve
2PC means two‑piece bolted body. The floating ball is not fixed by rigid shaft; fluid pressure pushes ball tightly against outlet seat to achieve tight shut‑off.
Compared with one‑piece standard ball valves:
1. Internal trim can be disassembled for on‑site repair without removing whole valve from pipeline;
2. Body wall thickness complies with API 6D shell calculation to resist pipeline pressure surge;
3. Easy to integrate mandatory fire‑safe and anti‑static structures required by oil‑gas codes.
II. Core Differences Between API 6D 2‑Piece Floating Ball Valve and Ordinary Ball Valve
1. Different Safety Qualification Level
General standard ball valves follow ASME B16.34 or domestic industrial standards for water and common chemical service. They have no mandatory fire‑safe, anti‑static design or pipeline surge pressure validation.
API 6D 2‑piece floating ball valve must satisfy:
Fire‑safe construction: metal‑to‑metal secondary sealing when soft seat fails under fire to prevent massive hazardous fluid leakage.
Anti‑static path: discharge static electricity generated by ball rotation to avoid ignition for flammable hydrocarbon medium.
Mandatory shell hydro‑test, gas tightness test to simulate cyclic pipeline pressure.
For crude oil and natural gas service, static spark and fire hazards are life‑threatening risks. Most ordinary ball valves lack these safety configurations and cannot meet oil‑gas project safety codes.
2. Sealing Performance for Hydrocarbon Medium
Oil and gas medium often contains solid particles, H₂S and cyclic high pressure. Seats on common ball valves may suffer internal leakage under pressure fluctuation, sealing performance drops fast after frequent pipeline start‑stop.
On API 6D floating ball valve, higher line pressure presses ball harder against seat for tighter shut‑off. Seat material options include reinforced PTFE, NYLON and metal seat for crude oil with particles and wet natural gas, minimizing seat leakage risk.
3. Total Cost from Installation to Maintenance
When one‑piece ordinary ball valve fails, the whole unit must be cut out and replaced, causing long‑time pipeline shutdown.
For API 6D two‑piece ball valve, technicians can open bolted body to inspect and replace ball & seat trim without fully removing valve from pipeline flanges. For remote field stations and long‑distance pipelines, on‑site maintainability greatly cuts downtime loss and spare‑part investment.
4. Resistance to Temperature & Pressure Cycle
Oil‑gas pipelines face sharp ambient temperature change and frequent pressure surge. API 6D regulates strict pressure‑temperature rating curve. Materials like WCB carbon steel and A105 forged steel shall complete low‑temperature impact test. Many ordinary ball valves only mark nominal pressure without low‑temperature impact validation, risking shell crack in cold field environment.
III. Typical Application Scenarios in Oil & Gas Industry
1. Shut‑off valves for crude oil & natural gas long‑distance transmission pipeline
2. Oil‑gas gathering stations, compressor stations and metering stations
3. Refinery and LNG terminal process pipeline
4. Downstream process manifold after wellhead
Note: 2‑piece floating ball valve works well for medium‑small size Class150‑Class600. For large‑size high‑pressure pipeline, fixed ball valve will be adopted instead.
IV. Conclusion: It Is Not That Standard Ball Valves Fail, But Oil‑Gas Projects Cannot Afford Safety Accidents
Ordinary ball valves are cost‑effective for water and general chemical working conditions. Nevertheless, oil and gas handle flammable explosive fluid. Valve leakage may trigger fire, explosion, plant shutdown and huge financial loss.
API 6D certification for 2‑piece floating ball valve is far more than a certificate. It represents complete system including body construction, fire‑safe anti‑static design, standardized test procedure and field service capability tailored for real harsh oil‑gas operating environment. This explains why numerous oil‑gas EPC projects and asset owners specify API 6D two‑piece floating ball valves.
