Introduction
Butt Weld Trunnion Ball Valves are widely used in oil and gas pipelines, natural gas transmission, petrochemical plants, LNG facilities, and other high-pressure process systems. Unlike flanged valves, their ends are directly welded to the pipeline, providing a compact and robust connection.
In Trunnion Ball Valve Construction, two-piece and three-piece body designs are common configurations. The choice depends on valve size, pressure class, maintenance requirements, and project specifications.
J-VALVES provides customized butt weld trunnion ball valve solutions with precision machining, material control, sealing optimization, and pressure testing.
1. Two-Piece Butt Weld Trunnion Ball Valve
A two-piece valve body consists of two main sections assembled around the internal components. This construction has a relatively simple pressure boundary and robust overall structure.
Its main advantages include:
Strong and compact body construction
Fewer body joints
Suitable for high-pressure service
Efficient integration with pipeline systems
Relatively straightforward manufacturing
For pipeline applications where structural strength and compact construction are priorities, a two-piece design can be an effective solution.

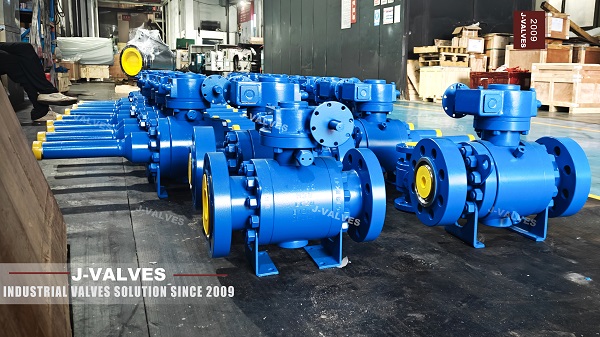

2. Three-Piece Butt Weld Trunnion Ball Valve
A three-piece construction divides the valve body into three sections, providing greater flexibility for assembly and access to internal components.
Its main advantages include:
Convenient internal component access
Easier maintenance
Flexible component replacement
Adaptability to customized valve configurations
The three-piece design can be particularly useful when maintenance and inspection accessibility are important project considerations.
3. Advantages of Butt Weld Connections
The butt weld connection directly joins the valve to the pipeline. This configuration can reduce the number of external bolted connections and provide a compact pipeline arrangement.
Key benefits include:
Compact installation
Reduced external dimensions
Strong pipeline connection
Suitable for high-pressure applications
Reduced dependence on external flange bolts
Proper welding procedures and post-weld inspection are essential. During installation, the effects of welding heat on valve seats and sealing components should also be considered.
4. Trunnion-Mounted Ball Design
The trunnion-mounted ball is a key element of this valve construction. Upper and lower trunnions support the ball mechanically, helping maintain stable positioning under pressure.
This design can provide:
Lower operating torque
Stable ball movement
Reduced stem loading
Suitability for larger valve sizes
Easy integration with pneumatic or electric actuators
Precision machining of the ball, trunnions, stem, and seats is essential for consistent valve performance.
5. Choosing the Appropriate Construction
There is no single construction that is suitable for every application.
A two-piece Butt Weld Trunnion Ball Valve may be preferred when a robust and relatively simple body configuration is required. A three-piece design may be more suitable when internal accessibility and maintenance flexibility are priorities.
Selection should consider:
Valve size
Pressure class
Operating temperature
Pipeline medium
Maintenance requirements
Installation conditions
Applicable standards
6. J-VALVES Manufacturing Advantages
J-VALVES focuses on professional engineering and controlled manufacturing of Butt Weld Trunnion Ball Valves.
Precision Machining: Accurate machining of the ball, seats, stem, and trunnions helps maintain proper alignment and operating performance.
Material Control: Carbon steel, stainless steel, low-temperature materials, and other alloys can be selected according to service conditions.
Customized Construction: Valve size, pressure class, bore configuration, body construction, butt weld dimensions, seat materials, and actuator options can be customized.
Quality Testing: Material verification, dimensional inspection, shell pressure testing, seat testing, and functional checks help ensure consistent product quality.
7. Typical Applications
Butt weld trunnion ball valves are commonly used in:
Oil and gas pipelines
Natural gas transmission
Petrochemical facilities
Refinery pipelines
LNG systems
Offshore platforms
Pipeline terminals
Industrial process systems
Conclusion
Two-Piece vs Three-Piece Butt Weld Trunnion Ball Valve Construction mainly differs in body configuration and maintenance accessibility. Two-piece designs emphasize robust and compact construction, while three-piece designs provide greater flexibility for internal access and maintenance.
With precision machining, customized materials and configurations, strict quality control, and professional engineering support, J-VALVES provides reliable butt weld trunnion ball valve solutions for demanding oil and gas, LNG, petrochemical, offshore, and industrial pipeline applications.
