I. Understand ASME B16.25 Standard for Butt‑Weld Valve Ends
ASME B16.25 is the critical American standard governing butt‑weld end dimensions, bevel profiles and wall‑thickness matching for industrial valves. It is widely adopted in oil, gas and petrochemical process piping systems.
Ball valves built to ASME B16.25 come with factory‑machined welding bevels, ready for direct butt‑weld connection to process pipes. It eliminates on‑site bevel machining errors, ensures consistent weld joint geometry and complies with ASME B31 pressure piping codes.
II. Configuration of Pneumatic Butt‑Weld Ball Valve with Handwheel Override
These shipped pneumatic butt‑weld ball valves are fitted with pneumatic actuators plus manual gear handwheel override, supporting both automatic air operation and emergency manual intervention.
1. Body material: A105 forged steel, metal‑to‑metal hard seat for high temperature & high pressure service;
2. End connection: Butt‑weld ends machined strictly per ASME B16.25 for pipe welding;
3. Instrument accessories: Solenoid valve, air filter regulator, limit switch for remote DCS signal feedback;
4. Manual override: Large hand‑wheel gearbox for valve opening/closing upon loss of air supply, guaranteeing plant operational safety.
III. Export Crate Packing Process for Heavy‑Duty Industrial Valves

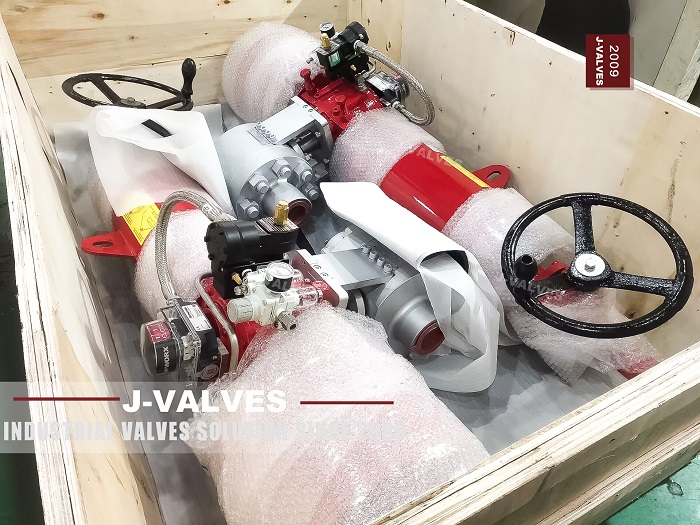

High‑pressure pneumatic ball valves are heavy precision fluid equipment. Export shipments adopt heat‑treated fumigated wooden crates to prevent transit damage.
1. Each valve is wrapped with bubble wrap to protect paint finish and delicate actuator instrument parts.
2. Protective covers seal butt‑weld bore ends, blocking wood chips and dust to safeguard internal sealing surfaces from scratches.
3. Internal fixing fixtures restrain valves inside crate, avoiding shifting and collision during sea and land transportation.
4. Fumigated wooden case meets overseas customs quarantine requirements. Inspection documents and ASME specification datasheets are supplied together with goods.
IV. Typical Application of ASME B16.25 Butt‑Weld Ball Valves
These ball valves serve refineries, chemical plants, oil‑gas gathering pipelines and power‑plant process systems for on‑off fluid control. Compared with flanged ball valves, butt‑weld construction delivers compact layout and removes potential gasket‑leak risks, ideal for long‑term continuous‑run industrial piping.
V. Key Points for Valve Selection & Sourcing
Confirm pipe wall thickness to match ASME B16.25 bevel class
Specify actuator type: double‑acting or spring‑return fail‑safe single‑acting
Clarify requirement for full instrument package: solenoid, limit switch etc.
For export orders, verify fumigated crate and complete documentation package
CTA：Contact us for full technical datasheet and shipment solution for ASME B16.25 pneumatic butt‑weld ball valves.
