Introduction
In high-pressure industrial piping systems, valve reliability is not optional — it is critical. Large-diameter pipelines in oil & gas, petrochemical plants, power stations, and offshore facilities demand robust isolation solutions that maintain sealing integrity under extreme pressure and fluctuating temperatures.

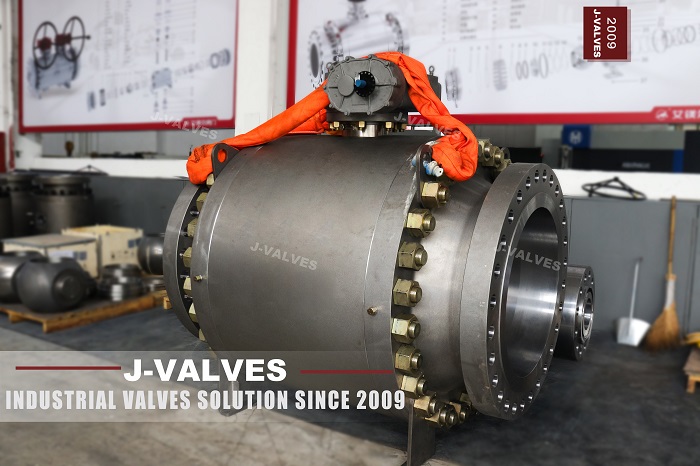

The J-VALVES Large Size Trunnion Ball Valve is engineered specifically for these demanding environments. With a trunnion-mounted design, reinforced body construction, and precision-machined sealing system, it delivers stable performance in high-pressure and heavy-duty applications.
This article explores its structure, working principle, technical advantages, and why it is preferred in industrial piping systems worldwide.
What Is a Large Size Trunnion Ball Valve?
A large size trunnion ball valve typically refers to a valve with a diameter above DN150 (6") and is designed with a fixed ball supported by upper and lower trunnions.
Unlike floating ball valves, the ball in a trunnion design remains mechanically supported. The line pressure pushes the seats against the ball, rather than forcing the ball downstream. This significantly reduces operating torque and enhances sealing stability under high pressure.
Key structural components include:
Forged or cast valve body
Upper and lower trunnion support
Spring-loaded or piston-type seats
Anti-blowout stem design
Fire-safe and anti-static features (optional)
Why Trunnion Design Matters in High Pressure Systems
1. Reduced Operating Torque
Large diameter valves handling high-pressure media require controlled torque for operation. The trunnion structure minimizes ball movement, reducing friction and enabling smoother actuation — especially important when paired with pneumatic or electric actuators.
2. Enhanced Sealing Performance
Under high pressure, seat rings are pressure-assisted to maintain tight sealing. This ensures:
Zero or near-zero leakage
Bidirectional sealing capability
Long-term sealing reliability
3. Structural Strength for Large Diameters
Industrial pipelines above 10", 20", or even 40" require high mechanical integrity. J-VALVES large size trunnion ball valves are designed with:
Thick wall body construction
High-strength forged materials (WCB, LCB, CF8M, F51, etc.)
Finite element stress analysis in design stage
Technical Features of J-VALVES Large Size Trunnion Ball Valve
Body Construction Options
2-piece bolted body
3-piece bolted body
Fully welded body (for buried or pipeline service)
Pressure Ratings
Class 150
Class 300
Class 600
Class 900
Class 1500
Class 2500
Available Materials
Carbon steel (ASTM A105 / WCB)
Stainless steel (CF8 / CF8M)
Duplex & Super Duplex
Low temperature materials (LF2, LCB)
Special alloy materials upon request
Sealing Materials
PTFE
RPTFE
PEEK
Metal-to-metal sealing for high temperature
Applications in Industrial Piping
J-VALVES large size trunnion ball valves are widely used in:
Oil & gas transmission pipelines
Petrochemical processing units
Refinery systems
LNG facilities
Power generation plants
Offshore platforms
In these sectors, valves must withstand:
High pressure
High flow velocity
Abrasive or corrosive media
Temperature fluctuation
The trunnion-mounted design ensures operational stability under these conditions.
Comparison: Trunnion vs Floating Ball Valve (Large Diameter Use)
Feature | Trunnion Ball Valve | Floating Ball Valve |
Ball Support | Fixed by trunnion | Supported by seats |
Suitable Size | Large diameter (6" and above) | Small to medium size |
Torque | Lower | Higher in large sizes |
High Pressure Performance | Excellent | Limited in large diameter |
Service Life | Long | Moderate |
For large size and high pressure systems, trunnion ball valves are generally the preferred solution.
Operational Safety and Standards Compliance
J-VALVES large size trunnion ball valves can be manufactured in compliance with:
API 6D
ASME B16.34
ISO 17292
Fire-safe testing standards (API 607 / API 6FA)
NACE MR0175 for sour service (optional)
Quality control includes:
Hydrostatic pressure testing
Seat leakage testing
Material PMI inspection
Third-party inspection upon request
Why Choose J-VALVES?
J-VALVES focuses on:
Large size valve manufacturing capability
Strict dimensional control
Stable supply chain for forged materials
Custom engineering for project-based requirements
Export experience for global EPC projects
For industrial piping systems requiring high pressure isolation, a reliable trunnion ball valve is essential. The large size series from J-VALVES provides strength, stability, and long-term sealing performance.
