Why Large Size Trunnion Ball Valves Matter in High-Pressure Systems
In modern industrial piping systems, especially in oil & gas, petrochemical, power generation, and pipeline transportation projects, large diameter valves must withstand extreme pressure, temperature fluctuations, and continuous operation. Selecting the right valve is not just about flow control — it is about long-term reliability, operational safety, and cost efficiency.

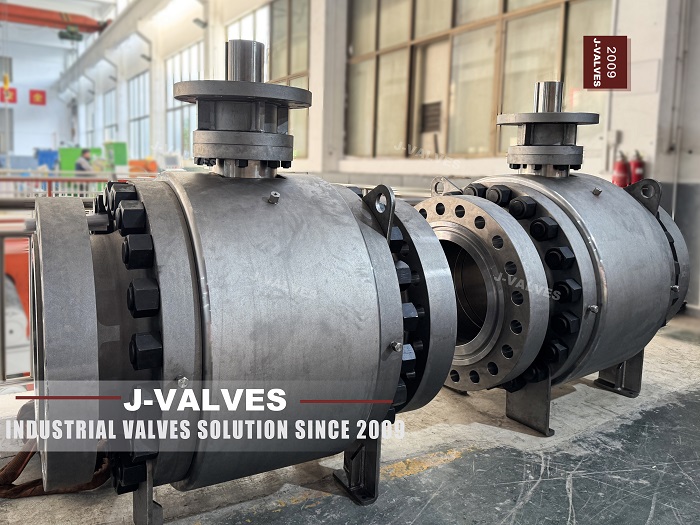

The J-VALVES Large Size Trunnion Ball Valve is engineered specifically for high-pressure industrial environments where stability, sealing integrity, and mechanical strength are critical.
What Is a Large Size Trunnion Ball Valve?
A trunnion mounted ball valve features a ball that is mechanically anchored at both the top and bottom. Unlike floating ball valves, the ball does not shift under pressure. Instead, system pressure pushes the seats against the ball, ensuring consistent sealing performance.
For large diameter valves (typically DN200 and above), this design significantly reduces operating torque and improves structural stability.
Key Features of J-VALVES Large Size Trunnion Ball Valve
1. High-Pressure Capability
Designed to meet international standards such as API 6D and ASME B16.34, J-VALVES large size trunnion ball valves are available in pressure classes ranging from Class 150 to Class 2500.
The rigid trunnion support prevents deformation under high differential pressure, ensuring reliable sealing even in demanding conditions.
2. Low Operating Torque
Large diameter valves can be difficult to operate manually. The trunnion-mounted design balances pressure on the ball, dramatically reducing torque requirements. This allows easy integration with electric, pneumatic, or hydraulic actuators.
3. Double Block and Bleed (DBB) Function
The valve supports double isolation, enabling safe maintenance and system integrity verification. This is particularly valuable in high-risk industrial environments.
4. Fire-Safe & Anti-Static Design
For applications in flammable environments, the valve structure complies with fire-safe testing standards. The anti-static device prevents static electricity accumulation, reducing operational risk.
5. Wide Material Selection
Available materials include:
Carbon steel (WCB, LCB)
Stainless steel (CF8, CF8M, F316)
Duplex and special alloys
Material selection can be optimized according to media type, corrosion resistance, and temperature requirements.
Application Industries
J-VALVES large size trunnion mounted ball valves are widely used in:
Oil & Gas transmission pipelines
LNG terminals
Petrochemical plants
Refinery processing units
Power generation systems
Offshore platforms
In these industries, high pressure ball valves must provide zero leakage, long service life, and minimal maintenance downtime.
Large Size vs Floating Ball Valve: Why Trunnion Is Preferred?
When valve size increases, floating ball designs face structural limitations:
Feature | Floating Ball Valve | Trunnion Ball Valve |
Large Diameter Suitability | Limited | Excellent |
High Pressure Resistance | Moderate | High |
Operating Torque | Higher | Lower |
Structural Stability | Lower | Higher |
For industrial piping systems requiring large diameter and high pressure resistance, trunnion ball valves are the more reliable choice.
Engineering Advantages for EPC Contractors
For EPC contractors and project engineers, choosing a reliable trunnion mounted ball valve manufacturer ensures:
Stable delivery timelines
Custom engineering support
Compliance with international standards
Reduced lifecycle cost
J-VALVES focuses on precision machining, strict quality inspection, and pressure testing before shipment to guarantee field performance.
Conclusion
The J-VALVES Large Size Trunnion Ball Valve is designed for high-pressure industrial piping systems where reliability and durability are non-negotiable. With advanced trunnion support structure, low operating torque, and robust sealing performance, it offers a dependable solution for critical industrial applications.
For projects requiring large diameter, high pressure ball valves with long service life and safety compliance, trunnion-mounted design remains the optimal engineering choice.
