I. Introduction
In chemical processing plants, aggressive media, pressure fluctuations, temperature changes, and sealing failure can quickly turn a valve into a weak point in the system. For operators focused on continuous production and lower downtime costs, “5 years of zero maintenance” is not just a slogan—it is a practical performance target.

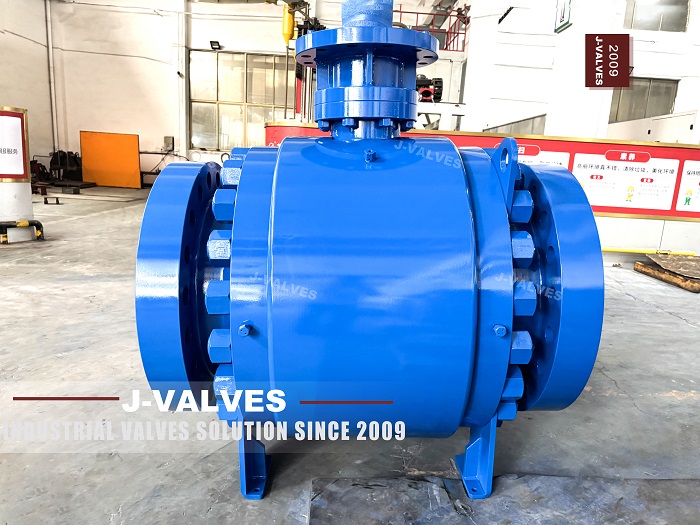

A Trunnion Mounted Ball Valve, also known as a trunnion mounted ball valve, is widely used in corrosive fluids, high-pressure pipelines, and demanding chemical applications. When combined with ISO 9001 quality management and CE compliance, and when engineered with the right materials, sealing system, and testing procedures, it can deliver long-term stable performance in severe corrosion service.
II. Why Chemical Corrosion Service Demands More from a Valve
Chemical media are often highly aggressive. Common challenges include:
Strong acids, alkalis, solvents, and salt exposure
Solid particles that erode sealing surfaces
Frequent pressure and temperature swings
High demand for production continuity
Typical valve failures in these conditions include:
Seat wear and leakage
Stem corrosion or sticking
Seal degradation
Coating breakdown
Frequent unplanned maintenance
That is why chemical service valves must be selected based on compatibility, not just price.
III. Why a Trunnion Mounted Ball Valve Is a Strong Choice
A Trunnion Mounted Ball Valve supports the ball at both ends, which distributes load more evenly and makes it especially suitable for large-size, high-pressure, and frequent cycling applications. Compared with a floating ball valve, it usually offers better stability in severe service.
Key advantages
Lower and more stable operating torque
Reliable sealing under demanding conditions
Better suited for large-diameter, high-pressure systems
More stable structure under media erosion
Bi-directional sealing options
For chemical plants aiming to reduce inspection frequency and shutdown risk, this design is highly attractive.
IV. The 5 Design Factors That Make 5 Years of Zero Maintenance Possible
1) Correct Material Selection
Every pressure-containing and sealing component must be matched to the media.
Typical options include:
Body: WCB, CF8M, 316L, alloy steel
Ball: 316, 316L, hard-faced or coated surface
Stem: corrosion-resistant stainless steel with surface hardening if needed
Seat: PTFE, RPTFE, PEEK, or metal seated design
Fasteners: upgraded stainless steel or coated hardware
The rule is simple: the material system must fit the chemistry.
2) Sealing Design That Resists Wear and Corrosion
Long service life depends heavily on the sealing package.
Consider:
Soft seats for medium temperature and tight shutoff
Metal seats for high temperature or erosive service
Spring-loaded seats to compensate for wear
Blowout-proof stem design
Anti-static construction for hazardous areas
3) Surface Protection
Corrosion often starts at the surface.
Effective protection may include:
Internal and external anti-corrosion coatings
Thermal spraying or plating
Hardened contact surfaces
Low-friction finishing to reduce sticking and wear
4) Manufacturing Precision
Even the best design will fail if machining is inconsistent.
Key controls include:
Ball-to-seat fit
Stem concentricity
Seat surface finish
Assembly tolerance
Pressure and leakage testing
5) Complete Factory Testing
A reliable Trunnion Mounted Ball Valve should not only be assembled correctly, but also fully tested.
Common tests include:
Shell strength test
Seat leakage test
High-pressure pneumatic test
Operating torque test
Optional fire-safe, low-temperature, or anti-static tests
V. What ISO 9001 + CE Certification Really Means
Many buyers only see the logo. The real value is the control behind it.
ISO 9001
ISO 9001 indicates a stable quality management system across procurement, production, inspection, traceability, and after-sales processes. For valves, this means:
More consistent production
Better batch-to-batch control
Clearer traceability
Lower defect rates
CE
CE indicates that the product meets relevant safety, health, and environmental requirements for the target market. For industrial valves, CE is not just a label—it supports compliance and export readiness.
Why the combination matters
With both ISO 9001 and CE, customers gain:
A traceable quality system
Better supply consistency
Easier project approval
Lower compliance risk
VI. How to Get Closer to “5 Years of Zero Maintenance”
To be precise, “zero maintenance” usually means maintenance is reduced to a very low level. To achieve that goal:
1) Confirm the operating conditions
Check media chemistry, temperature, pressure, solids content, and flow velocity.
2) Select the right valve structure
Choose the proper Trunnion Mounted Ball Valve design and seat configuration based on pressure class, bore size, and corrosion severity.
3) Match the actuation method
Manual, pneumatic, electric, or gear-operated designs must fit the duty cycle and torque demand.
4) Install correctly
Proper installation should ensure:
Clean piping
Accurate alignment
No extra pipeline stress
Correct support arrangement
5) Keep a basic inspection plan
Even for a 5-year low-maintenance target, a yearly visual and leakage inspection is still a wise practice.
VII. Typical Chemical Applications
Trunnion Mounted Ball Valves are especially suitable for:
Strong acid and alkali pipelines
Corrosive solvent systems
Chemical plant inlet and outlet control
High-pressure reaction systems
Slurry or particle-containing media
Marine, salt spray, and highly corrosive environments
When pressure, corrosion, and continuous operation all matter, a Trunnion Mounted Ball Valve is often the better choice.
VIII. Three Common Mistakes in Valve Selection
1) Focusing only on material, not on seat compatibility
Even premium materials fail if the sealing pair is wrong.
2) Focusing only on pressure rating, not media compatibility
High pressure does not automatically mean suitability for corrosive service.
3) Focusing only on purchase price, not total cost of ownership
A low-cost valve that needs frequent repair usually costs more over time.
IX. Conclusion
In severe chemical corrosion service, achieving 5 years of zero maintenance with a Trunnion Mounted Ball Valve is not a matter of luck. It comes from the combination of structural design, material compatibility, precision manufacturing, complete testing, and a controlled quality system. ISO 9001 supports process stability, CE supports compliance, and the real service life depends on whether the valve can remain sealed, corrosion-resistant, and mechanically stable in the actual operating environment.
For chemical plants that value reliability and low downtime, a properly engineered Trunnion Mounted Ball Valve is often the more economical and safer long-term choice.
X. FAQ
Q1: Why is a Trunnion Mounted Ball Valve better for corrosive service?
Because its supported structure distributes load more evenly, making it more stable in high-pressure and aggressive media applications.
Q2: What is the real value of ISO 9001 + CE certification?
ISO 9001 improves process consistency and traceability, while CE supports compliance and market access.
Q3: Can 5 years of zero maintenance really be achieved?
It can be approached closely when the application is correctly defined, the valve is properly selected, materials are compatible, and manufacturing and testing are strict.
