I. Introduction
In refineries, petrochemical units, and high-temperature pipeline systems, valves are responsible not only for flow isolation and control, but also for overall process safety. When the service involves flammable, high-pressure, and high-temperature media, valve failure during a fire can lead to far more than equipment damage. It can trigger a chain reaction that threatens the entire plant.

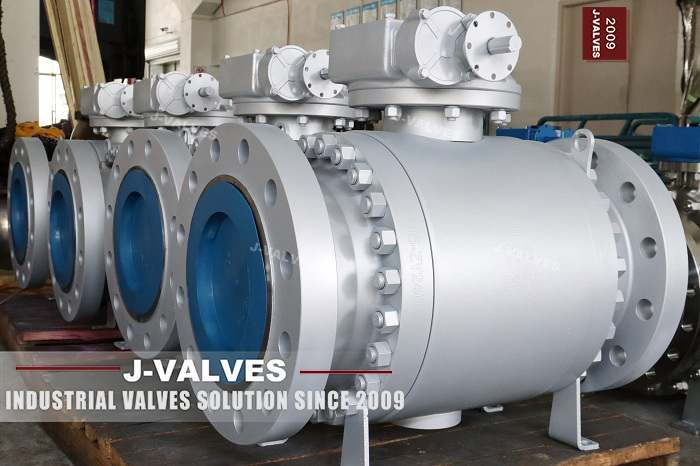

An API 607 fire-safe trunnion ball valve is designed for exactly this kind of high-risk environment. With fire-safe construction, metal backup sealing, and strict fire testing, it helps refineries maintain critical sealing performance under extreme conditions and strengthen operational safety.
II. What Is API 607 Fire Safe Certification?
API 607 is a fire testing standard for valves. It evaluates whether a valve can maintain basic sealing performance after being exposed to fire. The standard is designed to verify the valve’s ability to limit leakage when soft sealing materials are damaged by high temperature.
For refineries, API 607 certification is more than a test result. It is evidence that the valve is designed to reduce leakage risk during fire exposure and provide valuable time for emergency response.
III. Why Do Refineries Need Fire Safe Trunnion Ball Valves?
Refinery service is demanding for several reasons:
Continuous high-temperature operation creates thermal stress.
The process media is often flammable, increasing fire risk after leakage.
Operating pressures are high, so seal failure can quickly escalate.
Plant downtime is expensive, so reliability matters.
Trunnion ball valves are especially suitable for these conditions. Unlike floating ball valves, the ball is supported by trunnions, which reduces operating torque and improves performance in large-size, high-pressure, and frequent-cycle applications. When combined with fire-safe design, they become a highly reliable choice for refinery safety systems.
IV. How Does an API 607 Fire Safe Trunnion Ball Valve Improve Safety?
1. Metal-to-Metal Backup Sealing
Soft seats may fail quickly in a fire. A fire-safe trunnion ball valve typically includes a metal backup sealing path that helps preserve sealing capability after the soft seat is damaged.
2. Blowout-Proof Stem Design
The stem is one of the most important safety components. A blowout-proof design reduces the risk of stem ejection under abnormal pressure or fire exposure and helps minimize external leakage points.
3. Anti-Static Device
Static discharge is a serious ignition concern in refinery environments. An anti-static design helps conduct electrical charges away from the ball, stem, and body, reducing the chance of sparks.
4. High-Temperature Material Selection
Body, stem, ball, and sealing materials must be selected for the actual service temperature and media conditions. Common options include carbon steel, stainless steel, alloy steel, and high-temperature sealing materials.
5. Strict Fire Testing
API 607 testing simulates real fire exposure through high-temperature burning, cooling, and leakage evaluation. This makes it a critical benchmark for safety-focused valve procurement in refineries.
V. Typical Refinery Applications
API 607 fire safe trunnion ball valves are commonly used in:
Crude oil transmission lines
Catalytic cracking units
Hydrocracking and hydrotreating systems
Storage and transfer pipelines
High-temperature thermal oil circulation systems
Emergency shutdown systems in refining units
In these applications, the valve must withstand high temperature and pressure while maintaining stable operation and long service life. API 607 certification adds an important layer of confidence.
VI. What Should You Check When Selecting an API 607 Fire Safe Trunnion Ball Valve?
1. Certification Authenticity
Make sure the supplier can provide complete API 607 fire test documentation, not just a “fire safe” label.
2. Sealing Design
Check whether the valve has a meaningful metal backup sealing solution beyond the soft seat.
3. Material Compatibility
High-temperature, sour, corrosive, or particle-laden media require different material selections. Pressure class alone is not enough.
4. Maintenance Accessibility
Refineries value maintenance efficiency. A compact and service-friendly trunnion ball valve is often a better fit for continuous process units.
5. Anti-Static and Blowout-Proof Features
These safety features directly affect valve performance in hazardous service.
VII. The Real Value for Refineries
Fire-safe certification is not an optional upgrade. It is part of the plant safety strategy. An API 607 fire safe trunnion ball valve can help refineries:
Reduce leakage risk during fire exposure
Improve plant safety levels
Lower unplanned shutdown losses
Strengthen compliance and procurement confidence
Support long-term operation in severe service conditions
Over the full lifecycle, a certified fire-safe valve often offers better total cost of ownership than a standard valve.
VIII. Conclusion
In refinery high-temperature service, valve safety is never a minor issue. API 607 fire-safe trunnion ball valves combine structural redundancy, material optimization, and rigorous testing to help maintain sealing performance during extreme events and serve as a critical line of defense for safe production.
