Introduction
In modern pipeline engineering systems, safety, isolation, and maintenance efficiency are critical requirements—especially in oil & gas, petrochemical, and high-pressure process industries. The Double Block and Bleed (DBB) ball valve is designed to provide a highly reliable isolation solution by combining two sealing barriers and a bleed/vent system within a single valve assembly.

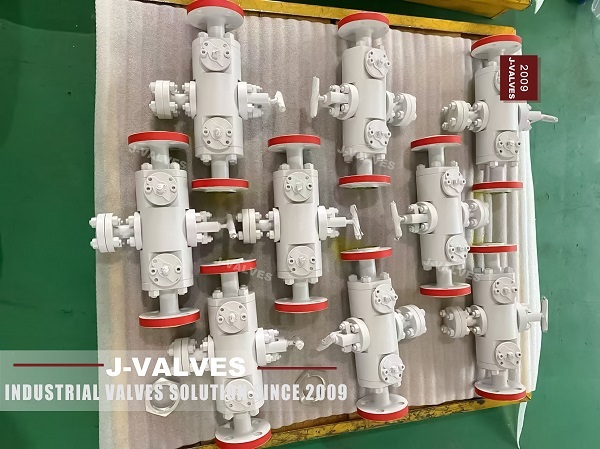

The configuration shown represents a high-performance DBB ball valve assembly with flanged ends, engineered for compact installation, high integrity sealing, and safe maintenance operation in critical pipeline systems.
What Is a DBB Ball Valve?
A Double Block and Bleed (DBB) ball valve is a valve system that provides:
1. Two independent sealing barriers (upstream and downstream)
2. A central bleed/vent cavity
3. Zero-leakage isolation capability (under specified standards)
It is designed to isolate pipeline media safely while allowing pressure monitoring or venting between the sealing elements.
Working Principle of DBB Ball Valve
The DBB valve operates through three functional stages:
1. Primary Isolation (Upstream Seal)
The first ball element blocks flow from the upstream pipeline.
2. Secondary Isolation (Downstream Seal)
The second ball element provides an additional independent sealing barrier.
3. Bleed / Vent Function
The middle cavity between the two sealing points is:
1. entilated
2. Drained
3. Pressure monitored
If pressure is detected in the cavity, it indicates potential seal leakage.
This structure ensures double safety isolation with real-time leakage verification.
Structural Design of DBB Ball Valve
1. Integrated or Modular Body Design
DBB valves can be:
1. Integrated DBB structure (compact forged or cast body)
2. Two-valve + bleed block assembly
The integrated design provides:
1. Reduced leakage points
2. Compact installation footprint
3. Improved mechanical reliability
2. Flanged End Connection
The valve in the image uses flanged connections, offering:
1. Easy pipeline installation and maintenance
2. Strong mechanical sealing performance
3. Compatibility with ASME B16.5 piping systems
4. High resistance to vibration and thermal stress
3. Ball & Seat System
Each sealing stage uses a precision-engineered ball and seat system:
1. Soft seat materials (PTFE / RPTFE / NYLON / PEEK) or metal seats
2. Bidirectional sealing capability
3. Spring-loaded or self-energized seat design
4. Low torque operation with high sealing reliability
4. Bleed Valve / Drain Port
The central bleed system includes:
1. Needle valve or small ball valve
2. Pressure monitoring port
3. Drain or vent function
This is essential for:
1. Leakage detection
2. Safe maintenance isolation
3. Pressure release before disassembly
Key Advantages of DBB Ball Valves
1. Double Safety Isolation
Two independent sealing barriers significantly reduce leakage risk.
2. Maintenance Safety
Allows safe maintenance of downstream equipment without shutting down the entire system.
3. Compact System Integration
Replaces multiple valves with a single compact unit.
4. Leak Detection Capability
Bleed function provides real-time verification of sealing integrity.
5. High Pressure Performance
Suitable for medium to high-pressure pipeline systems.
Typical Applications
DBB ball valves are widely used in industries requiring high safety standards:
1. Oil and gas transmission pipelines
2. Refinery and petrochemical plants
3. Offshore and subsea systems
4. Natural gas compressor stations
5. Chemical processing systems
6. Metering and sampling skids
7. Pressure testing and isolation systems
Material and Engineering Options
To meet different industrial requirements, DBB ball valves are available in:
1. Carbon steel (A105 / WCB)
2. Stainless steel (F304 / F316)
3. Low-temperature steel (LF2 / LF2M)
4. Corrosion-resistant alloys
Additional engineering options include:
1. Anti-static design
2. Fire-safe certification (API 607 / API 6FA)
3. NACE MR0175 sour service compliance
4. Extended stem for insulation or underground use
Manufacturing Advantages – J-VALVES Engineering
As a professional industrial valve manufacturer, J-VALVES provides high-performance DBB ball valve solutions designed for global energy and process industries.
Key manufacturing strengths include:
1. Precision machining for sealing surfaces
2. Advanced seat technology for low leakage rates
3. Strict compliance with API 6D, ASME B16.34, ISO standards
4. 100% hydrostatic and pneumatic testing
5. Full material traceability and inspection documentation
6. Custom design for project-specific pipeline systems
Quality Testing and Inspection
Each DBB ball valve undergoes rigorous testing:
1. Shell pressure test
2. Seat leakage test
3. Cavity bleed verification test
4. Fire-safe testing (if required)
5. NDT inspection (UT/RT/PT/MT)
This ensures reliable performance in critical isolation applications.
Conclusion
The Double Block and Bleed (DBB) ball valve is an essential safety component in modern pipeline systems, providing reliable dual isolation and pressure monitoring capability in a single compact design. Its advanced sealing structure and bleed functionality make it indispensable in high-risk industries such as oil, gas, and petrochemical processing.
With advanced manufacturing capabilities and strict quality control, J-VALVES delivers high-performance DBB valve solutions that meet international standards and ensure long-term operational safety and reliability.
