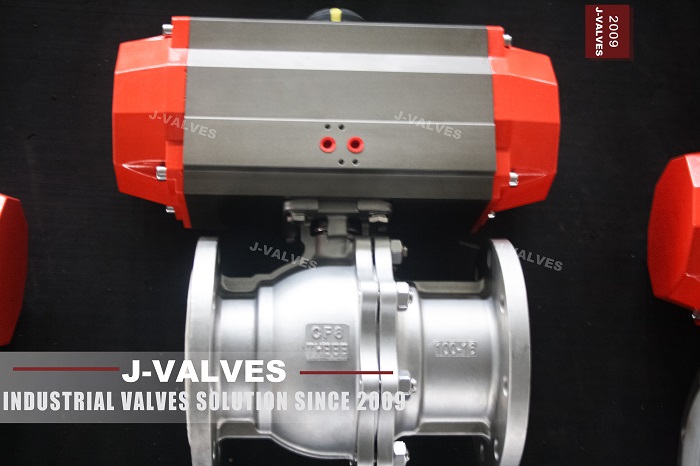

In the world of industrial valves, ensuring the reliability and safety of components is paramount. The J-Valves CF8 DN100 PN16 Pneumatic Floating Ball Valve is no exception. This valve, designed for precision and durability, adheres to a multitude of international certifications and standards that guarantee its performance and quality.
1.Design and Manufacturing Standards
The J-Valves CF8 DN100 PN16 Pneumatic Floating Ball Valve is manufactured in accordance with several key design and manufacturing standards. These include:
- API 6D: This standard, set by the American Petroleum Institute, specifies requirements for pipeline valves, including ball valves, used in the oil and gas industry. It covers design, materials, testing, and marking, ensuring the valve meets the stringent demands of these applications.
- API 608: This standard focuses on the manufacturing and quality control of small-bore valves, including ball valves. It ensures that the valve is manufactured to high standards of precision and reliability.
- BS 5351: This British standard specifies requirements for steel flanged and butt-welding end valves for the petroleum and natural gas industries. It ensures that the valve is suitable for use in these demanding environments.
2.Pressure and Temperature Standards
The valve is also designed to meet specific pressure and temperature standards, ensuring it can operate safely and efficiently under various conditions. These include:
- ASME B16.34: This standard, set by the American Society of Mechanical Engineers, covers the pressure-temperature ratings, materials, design, dimensions, examination, testing, and marking of valves. It ensures that the valve can withstand the specified pressures and temperatures without failure.
3.Face-to-Face Dimension Standards
The face-to-face dimensions of the valve are standardized to ensure compatibility with other components in a piping system. The relevant standard is:
- ASME B16.10: This standard specifies the face-to-face or end-to-end dimensions of valves, ensuring that the valve can be easily integrated into existing systems and that it meets the required dimensional tolerances.
4.Flange Standards
The flange connections of the valve are designed to meet specific standards, ensuring a secure and reliable connection. These include:
- ASME B16.5: This standard specifies requirements for steel pipe flanges and flanged fittings, including dimensions, tolerances, and pressure-temperature ratings.
- ASME B16.47: This standard covers large diameter steel flanges for pipe and fittings, ensuring that the flanges are suitable for use in high-pressure applications.
5.Testing and Inspection Standards
To ensure the valve meets the required quality and safety standards, it undergoes rigorous testing and inspection in accordance with:
- API 598: This standard specifies requirements for the testing and inspection of valves, including ball valves, to ensure they are free from defects and can operate reliably.
- API 6D: In addition to its role in design and manufacturing, API 6D also covers testing and inspection requirements, ensuring the valve meets all necessary performance criteria.
6.Additional Certifications
The J-Valves CF8 DN100 PN16 Pneumatic Floating Ball Valve also holds several additional certifications that further attest to its quality and reliability:
- ISO 9001: This international standard specifies requirements for a quality management system, ensuring that the valve is manufactured to high standards of quality and consistency.
- ISO 14001: This standard specifies requirements for an environmental management system, ensuring that the manufacturing process is environmentally friendly and sustainable.
- ISO 45001: This standard specifies requirements for an occupational health and safety management system, ensuring that the manufacturing process is safe for workers.
- CE Marking: This marking indicates that the valve complies with the essential requirements of relevant European health, safety, and environmental protection legislation.
- SIL3: This certification indicates that the valve meets the safety integrity level 3 requirements, ensuring it can be used in safety-critical applications.
- ISO 15848: This standard specifies requirements for the control of emissions of fluid sealing devices, ensuring that the valve is environmentally friendly and safe for use in applications where emissions control is critical.
7.Conclusion
The J-Valves CF8 DN100 PN16 Pneumatic Floating Ball Valve is a high-quality industrial valve that adheres to a wide range of international certifications and standards. These standards and certifications ensure that the valve is designed, manufactured, tested, and inspected to the highest possible standards, making it a reliable and safe choice for a variety of applications. Whether used in the oil and gas industry, chemical processing, or other demanding environments, this valve is built to perform and endure.
