1. Two different ways to isolate a line

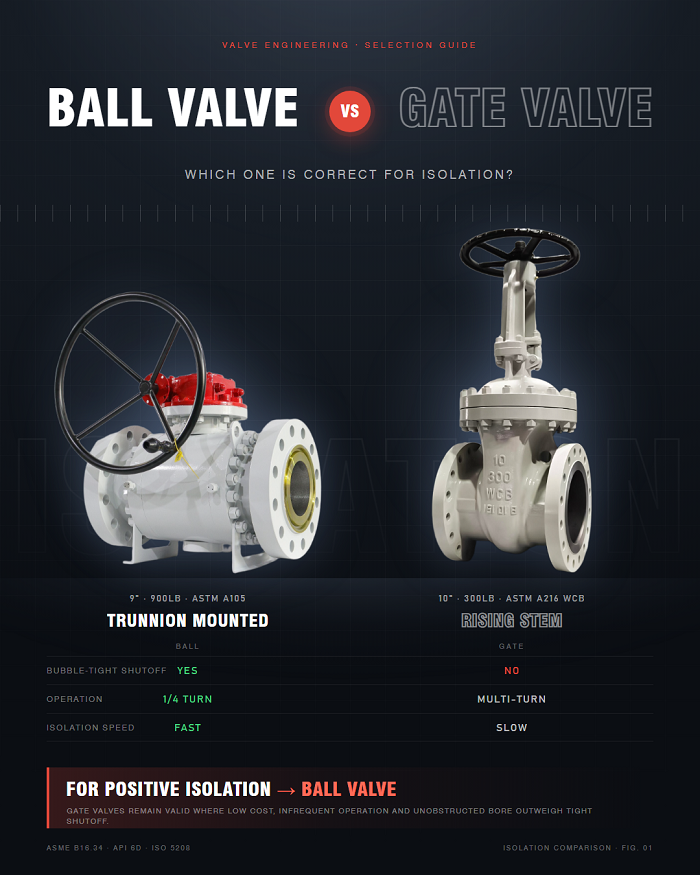

A ball valve isolates by rotating a bored sphere a quarter turn against a seat, while a gate valve isolates by lowering a flat disc into the flow path over several turns. That single mechanical difference drives almost every practical decision that follows: stroke time, sealing quality, wear pattern, envelope size and maintenance method. The ball valve gives a fast quarter-turn stroke and a bubble-tight seal in most designs; the gate valve gives a straight-through bore and a low pressure drop but a longer stroke. Both isolate a line, but they do so with different consequences at the seat.
2. Head to head comparison
The comparison below covers the criteria that appear most often in isolation specifications. Ball valves are commonly specified from 1/2 to 56 inch, while gate valves dominate above about 24 inch in many pipeline specifications. A ball valve normally seals tight on its own, whereas a gate valve relies on line pressure and a flexible wedge to seat, so the two behave differently as the line pressure falls.
| Criterion | Ball valve | Gate valve | Notes |
|---|---|---|---|
| Sealing | Bubble-tight, single or double seat | Tight mainly with pressure assistance | Ball holds low pressure better |
| Stroke | Quarter turn | Multiple turns | Ball suits automation |
| Pressure drop | Low, full bore available | Very low, straight through | Both offer full bore options |
| Size range | 1/2 to 56 inch available | Favoured on very large lines | Cost rises with size for both |
| Wear | Seat wear, ball stays round | Wedge and body guide wear | Ball is easier to re-seat |
| Actuation | Quarter-turn actuator, simple | Multi-turn actuator or gearbox | Ball needs a smaller actuator |
The table reflects general practice; a specific project still overrides it with its service conditions and client standard.
3. Where the ball valve wins
The ball valve wins wherever tight isolation, fast operation or automation is required. On a vent, drain, sampling or pig trap line, the bubble-tight seat matters more than pressure drop, and the quarter turn makes automated shutoff practical. Ball valves also suit frequent cycling, because the seat wipes the ball on every stroke and keeps the sealing surface clean. In sour service and cryogenic service the ball valve is common because seal materials and body designs are well understood. The same logic applies on instrument and utility lines, where operators value the visible quarter-turn position and the ability to add a padlockable handle or a limit switch without a gearbox. Below about 12 inch, a ball valve is usually the lower cost and lower weight choice for isolation.
4. Where the gate valve is still correct
The gate valve remains correct on large, low-frequency, fully open or fully closed lines where pressure drop must be minimal and the line stays at steady pressure. On a 36 inch water transmission header that is opened once a season, a gate valve offers a straight-through bore and a low operating cost that a ball valve of the same size cannot match. Gate valves also tolerate high temperature in the simple flexible-wedge form, and they remain common in legacy piping where the support structure was built around their envelope. The multi-turn handwheel lets an operator apply a gradual, controlled force that a quarter-turn lever cannot, which reduces water hammer on a long line. Where the line has to be throttled, neither valve is the right answer.
5. Decision rules for a specification
A short decision path keeps isolation specifications consistent. Start with the duty: if the valve is cycled often, automated, or required to seal with no pressure assistance, choose a ball valve. If the line is large, low-cycle, and pressure drop is the priority, choose a gate valve. Then check the secondary constraints: buried service favours a gate or a fully welded ball valve, automation favours a ball valve, and severe throttling favours a globe or control valve rather than either. Finally, confirm the standard that governs the order, since API 6D, API 600 and API 602 each cover different valves, and the marking and testing requirements follow from that choice.
6. Frequently Asked Questions
Which one seals more tightly?
A ball valve seals more tightly. Its seat is in continuous contact with the ball and holds a bubble-tight seal even at low line pressure, while a gate valve relies on line pressure and a flexible wedge to force the disc against the seats. That is why ball valves are preferred for isolation where seal quality matters, including vents, drains and sampling lines.
Which is better above 24 inch?
Above roughly 24 inch a gate valve is usually the more economical isolation choice, because a straight-through gate has a lower pressure drop and a smaller, lighter body than a ball valve of the same bore. Ball valves are still available up to 56 inch, but at those sizes the cost, weight and actuator demand rise sharply. Large, low-cycle headers therefore tend to use gate valves.
Which suits buried service?
A gate valve suits buried service because it has a compact round body and a simple flanged joint, and it tolerates soil loads once boxed. A fully welded ball valve is equally suited where tight isolation and maintenance-free duty are required. Standard bolted ball valves are less suitable, because the body joint and stem seal are harder to inspect once buried.
