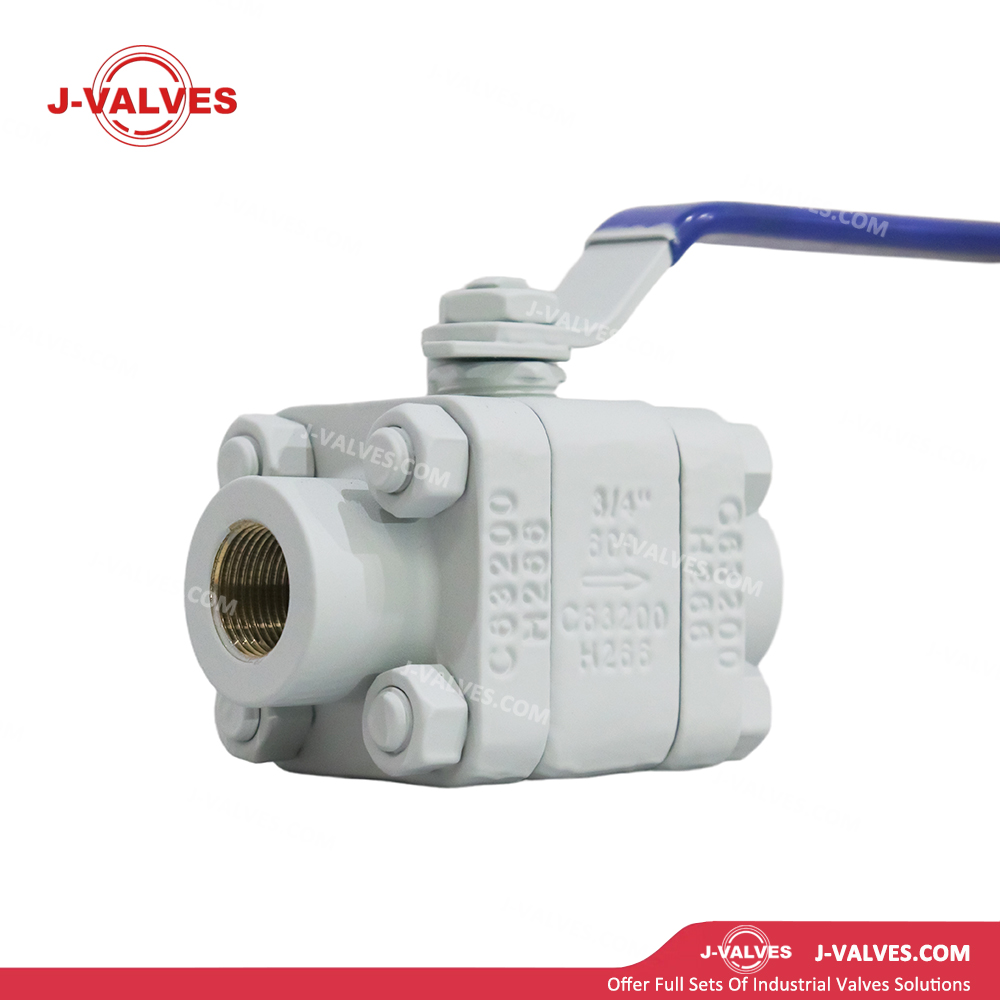

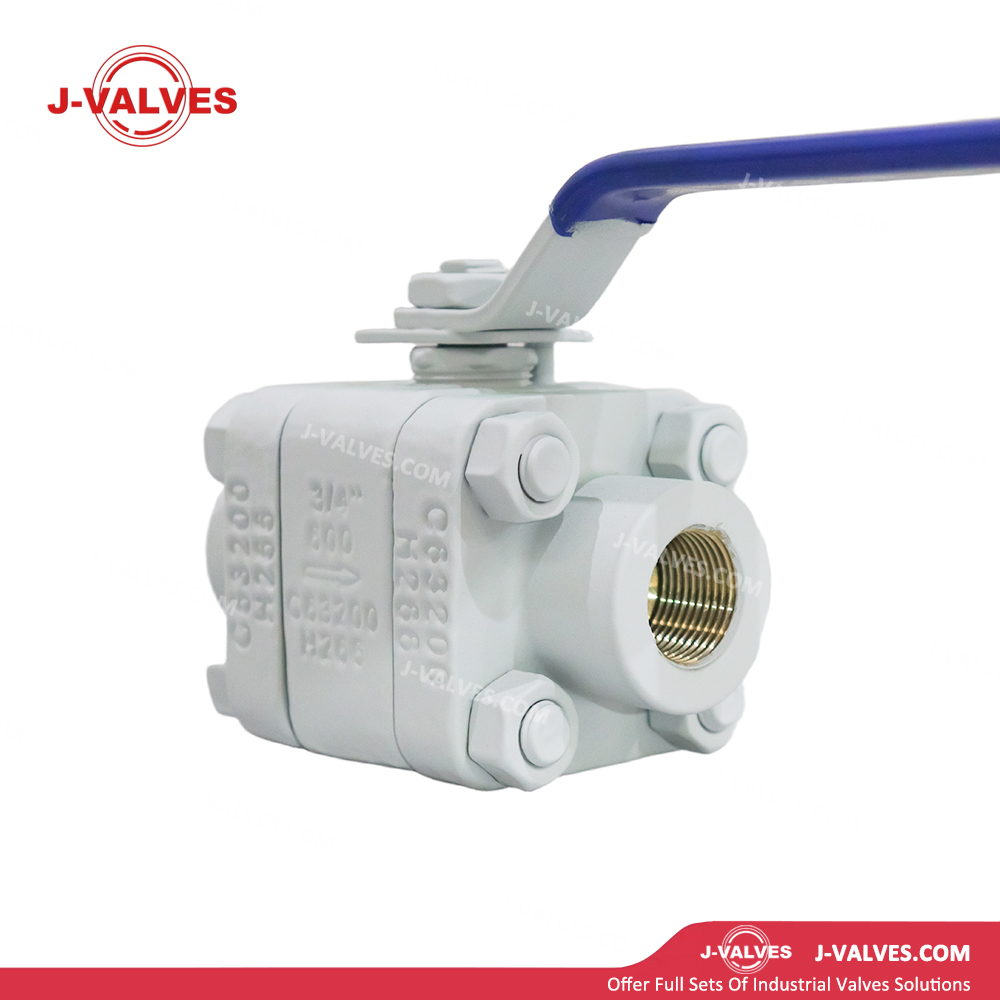

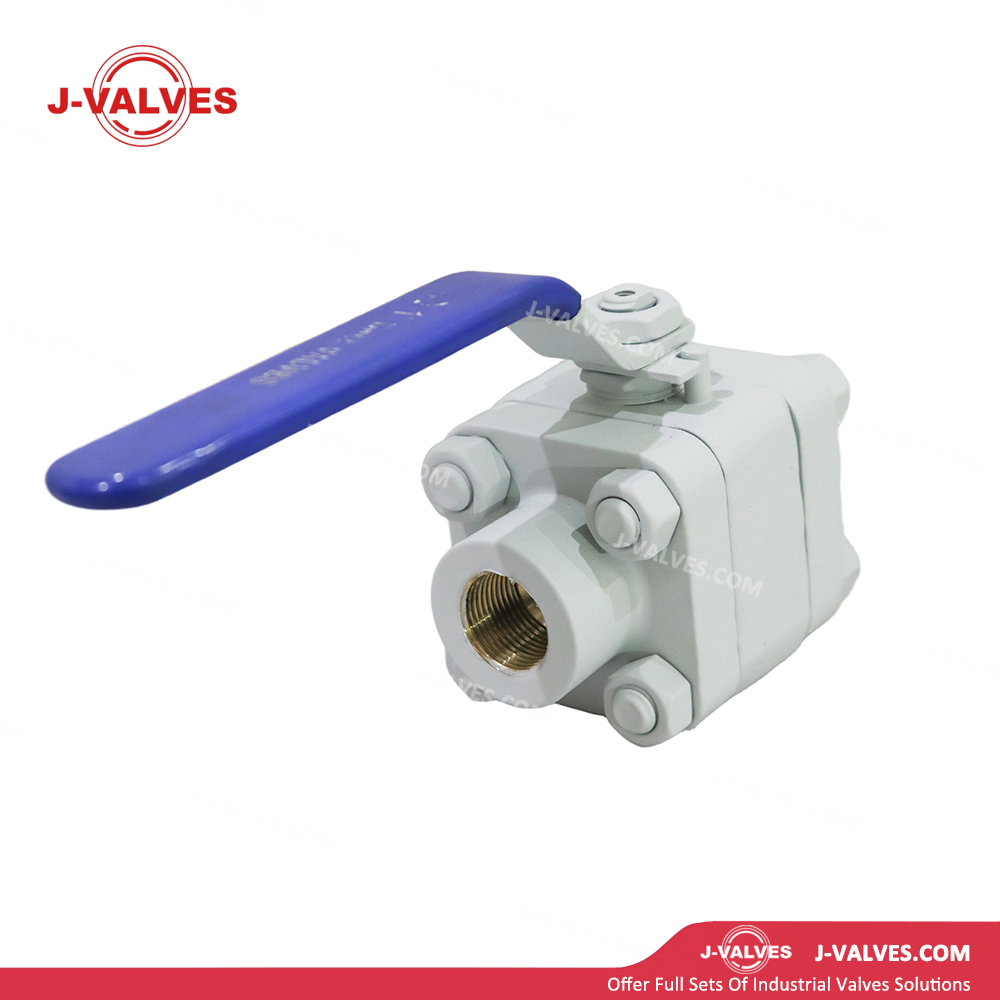

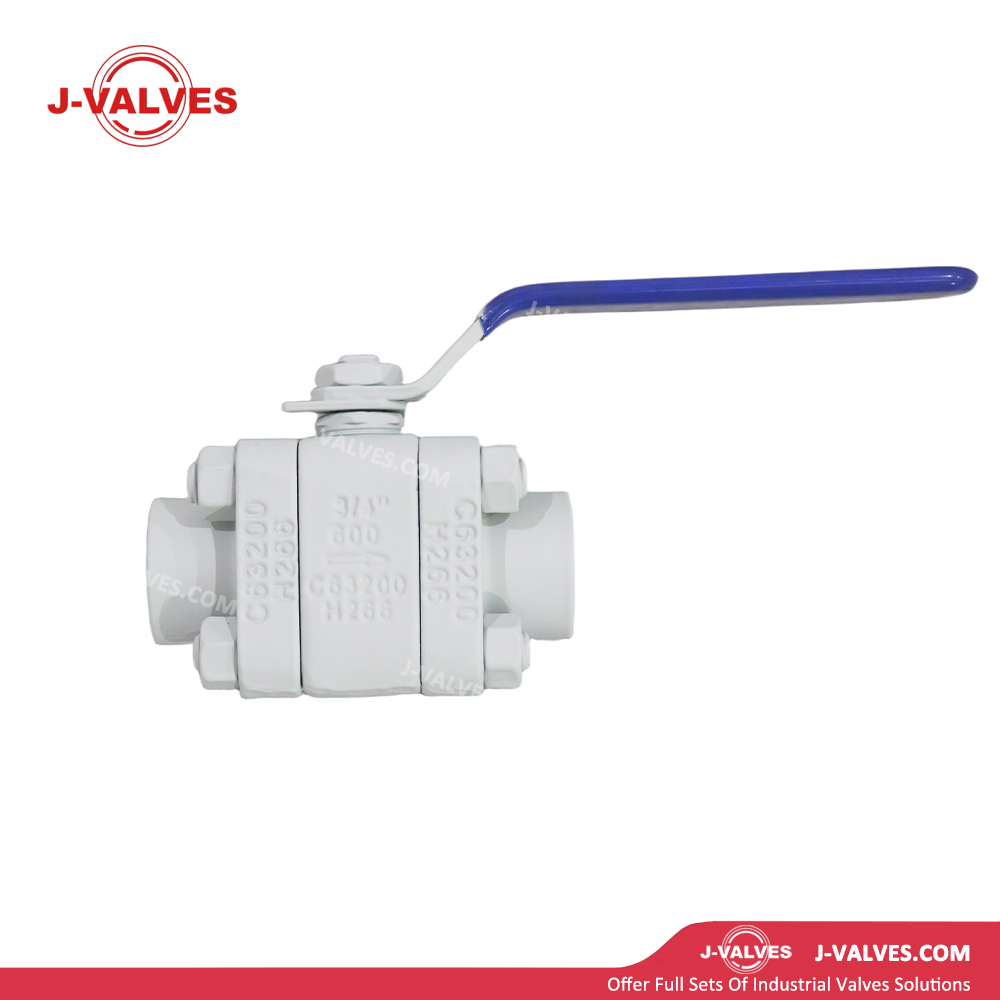

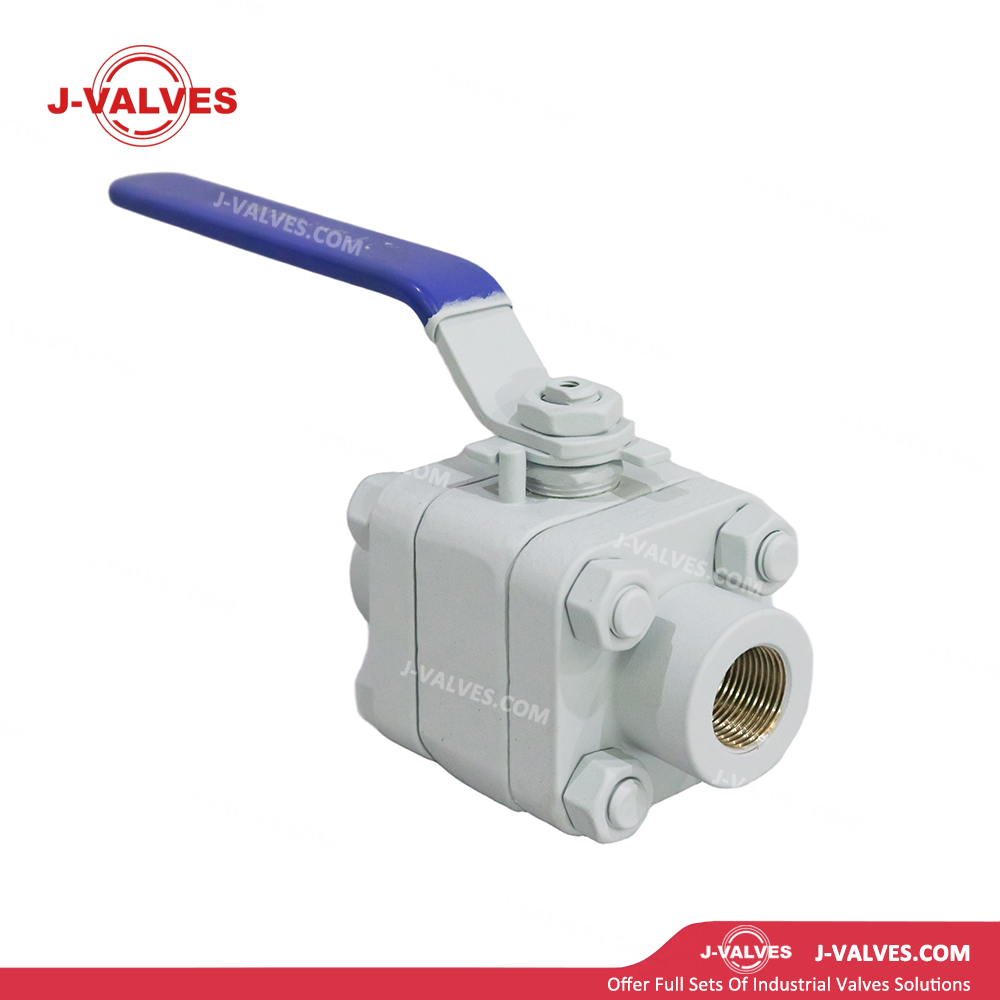

3/4" 600LB C63200 High Pressure Ball Valve, Nickel Aluminum Bronze, Three Piece Body

Overview of the J-VALVES 3/4" 600LB C63200 High Pressure Ball Valve

The J-VALVES 3/4" 600LB C63200 high pressure ball valve is a compact, three piece bolted body valve engineered for corrosive and high pressure service where standard carbon or stainless steel would suffer from chloride attack or galvanic corrosion. The body, end caps, and ball are machined from UNS C63200 nickel aluminum bronze, an alloy that combines high strength with outstanding resistance to seawater, brine, and oxidizing media. At 3/4 inch (DN20) and Class 600 (PN100) rated pressure, the valve isolates lines up to 990 psi (68 bar) at ambient temperature and maintains structural integrity across the full pressure-temperature envelope of ASME B16.34.

Unlike a two piece or one piece ball valve, the three piece construction allows the body to be removed from the line without disturbing the pipeline. The end caps remain bolted to the piping while the centre body section is unbolted, giving full access to the ball, seats, and stem for inline maintenance or replacement. This design is preferred in process skids, marine manifolds, and offshore platform modules where downtime is costly and valve change-out must be fast.

The valve is offered with threaded NPT ends to ASME B1.20.1 or socket weld ends to ASME B16.11, making it compatible with Schedule 160 and XXS high pressure piping without the weight and cost of flanged connections. A blow-out proof stem, live-loaded gland packing, and anti-static device are standard. The operating handle is carbon steel with a vinyl dip grip, and a lockable lever is available for lock-out tag-out compliance.

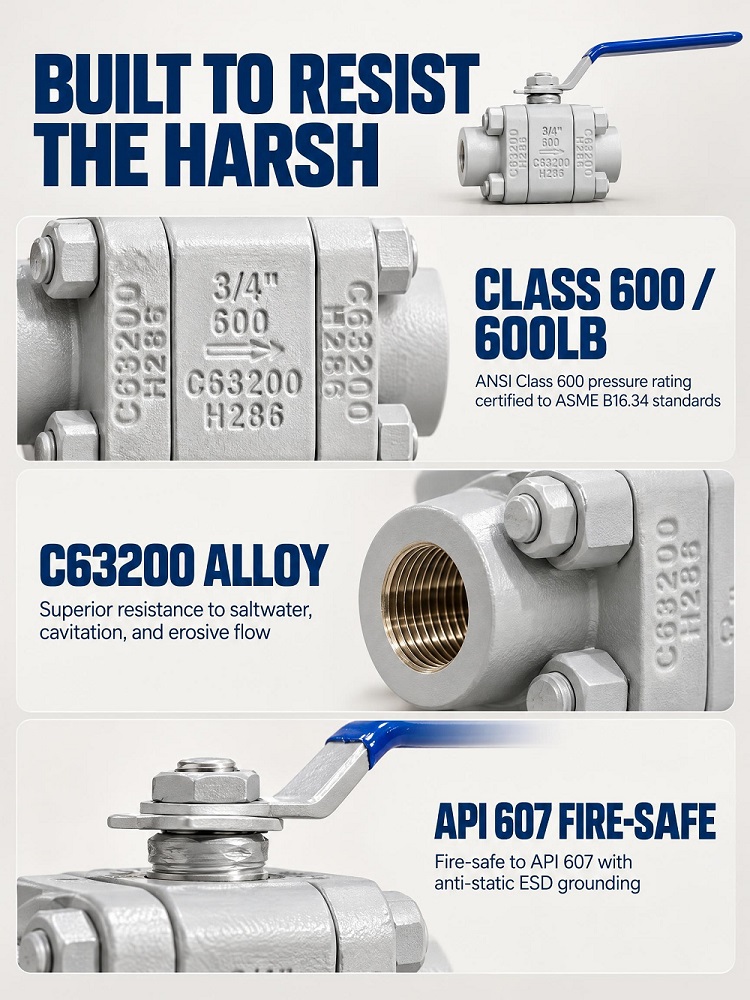

Why C63200 Nickel Aluminum Bronze

UNS C63200 is a nickel aluminum bronze containing approximately 9% aluminum, 4.5% iron, and 5% nickel, with the balance copper. The alloy forms a dense, adherent aluminum oxide film on the surface that resists seawater corrosion, cavitation, and impingement attack far better than 316 stainless steel in chloride-rich environments. Where 316L suffers from pitting and crevice corrosion in warm seawater, C63200 maintains a stable passive layer and shows negligible weight loss over extended exposure.

The mechanical properties of C63200 also suit high pressure valve construction. Yield strength is typically 240 MPa (35 ksi) and tensile strength exceeds 620 MPa (90 ksi) in the hot worked and tempered condition, giving the thin-walled 3/4 inch body enough strength to hold 1.5 times the 600LB rating during hydrostatic shell testing. Hardness is controlled below 200 HB to maintain seat conformity and to avoid galling against the stainless steel stem.

C63200 is widely specified in marine engineering, desalination plants, offshore oil and gas, and shipboard systems. It is the material of choice for seawater ball valves on naval vessels, platform firewater loops, reverse osmosis skids, and coastal chemical injection lines. The alloy is also resistant to biofouling in seawater, reducing the maintenance frequency compared to coated carbon steel valves.

Design and Construction

The valve body is a three piece bolted assembly: a centre body section with the ball cavity, and two end caps that carry the NPT or socket weld connection. The centre section is cast or forged from C63200 and then finish-machined on CNC turning centres to hold the ball bore concentricity within 0.05 mm. End caps are likewise C63200 and are faced with a precision gasket surface that seals against a spiral wound or PTFE envelope gasket trapped between the body and cap flanges.

The ball is a solid C63200 sphere with a through port matching the nominal pipe bore, polished to a 0.4 μm Ra surface finish to reduce seat wear and operating torque. The ball is drilled with a stem slot that engages a C63200 or 17-4PH stainless steel stem. The stem is bottom-entry, retained by a shoulder inside the body so that line pressure cannot blow the stem out of the bonnet even if the gland is removed. A thrust washer under the stem shoulder carries the axial load and keeps the stem centred.

Seats are spring-energized PTFE or reinforced PTFE (RPTFE) as standard, with PEEK available for temperatures above 150 °C. The seat is a floating design: line pressure acting on the downstream seat face pushes the seat against the ball, increasing the seal as pressure rises. This self-energizing action gives bubble-tight shut-off at low pressure and maintains seal integrity at the 600LB rating. The seat geometry is designed so that the ball is free to move slightly on the upstream seat, preventing pressure lock when thermal expansion traps fluid in the body cavity.

The stem seal uses multiple V-ring PTFE packing rings compressed by a live-loaded gland follower. The live load is provided by Belleville disc springs that compensate for packing cold flow and thermal cycling, keeping the seal tight over thousands of cycles without manual re-torquing. An anti-static spring connects the ball to the stem and the stem to the body, maintaining electrical continuity and preventing static charge build-up in hydrocarbon or solvent service.

The handle is a carbon steel lever with a vinyl-dipped grip, drilled for padlock attachment in the open and closed positions. A spring-return handle is optional for fail-close or fail-open automatic operation. Gear operators are not normally fitted to 3/4 inch ball valves because the torque is within the manual limit, but a pneumatic or electric actuator can be mounted via an ISO 5211 adapter plate on request.

Material Specifications

Every pressure-retaining component is either C63200 nickel aluminum bronze or a compatible alloy selected to avoid galvanic corrosion in seawater. The bolted body joint uses ASTM A193 B8M stainless steel bolts with a PTFE-coated spiral wound gasket; the PTFE filler prevents seawater ingress at the flange interface. Stem packing is virgin PTFE or graphite-PTFE composite, and the handle is epoxy-coated carbon steel to resist atmospheric corrosion on deck or in engine rooms.

Technical Specifications

The following values apply to the standard C63200 / PTFE trim configuration with NPT ends. Values may shift when socket weld ends, PEEK seats, or actuator mounting are specified.

Standards and Compliance

The valve is designed to API 608 for metal ball valves with flanged, threaded, and welding ends, with pressure-temperature ratings and wall thickness governed by ASME B16.34. End threads follow ASME B1.20.1 for NPT and ASME B16.11 for socket weld dimensions. Shell and seat testing are carried out to API 598, with the shell held at 1.5 times the rated pressure and each seat tested at 1.1 times the rated pressure in both directions.

For marine and offshore use the valve can be supplied with ABS, DNV, or Lloyd’s Register type approval, and the C63200 material is certified to ASTM B148 with a mill test report showing chemical composition and mechanical properties. The nickel aluminum bronze alloy meets the requirements of MIL-V-24624 for seawater valves on US Navy vessels and is listed in the ASTM corrosion tables for continuous seawater exposure.

PED 2014/68/EU compliance documentation is available for European installations, and the valve can be marked with the CE symbol when supplied with a notified body assessment. Fire safe testing to API 607 is available as an option with graphite packing and metal secondary seats, though the standard PTFE seat version is not fire safe rated.

Manufacturing and Quality Control

J-VALVES manufactures the C63200 high pressure ball valve from certified C63200 bar stock or investment castings. Each heat of material is tested for chemical composition by optical emission spectroscopy and for mechanical properties by tensile and hardness testing before release to the machine shop. The material certificate records the heat number, chemical analysis, tensile strength, yield strength, elongation, and hardness, and is supplied with the valve as an EN 10204 3.1 document.

CNC machining produces the body bore, seat pockets, stem bore, and end connection threads or weld prep to drawing tolerances. The ball is turned and then lapped to achieve the 0.4 μm Ra surface finish required for low-torque sealing. Seat pockets are machined with a profile that matches the PTFE seat radius, ensuring uniform contact pressure around the ball circumference.

Assembly is carried out in a clean environment to prevent contamination of the seats or ball surface. The stem is inserted through the bottom-entry bore, the packing is stacked and compressed by the live-loaded gland, and the handle is fitted and pinned. The valve is then cycled ten times to seat the packing and to verify smooth operation before testing.

The eight-step quality sequence covers incoming material, machining dimensions, assembly function, shell strength test, seat leakage test, dimensional final inspection, coating and marking, and document package verification. Shell testing pressurises the body to 1,485 psi with water and holds the pressure while joints and the stem seal are inspected for weeping. Seat testing applies 1,089 psi to each seat in turn and checks for bubble leakage past the seat into the downstream port. No leakage is acceptable; any valve that shows a bubble is disassembled, inspected, and re-seated before retest.

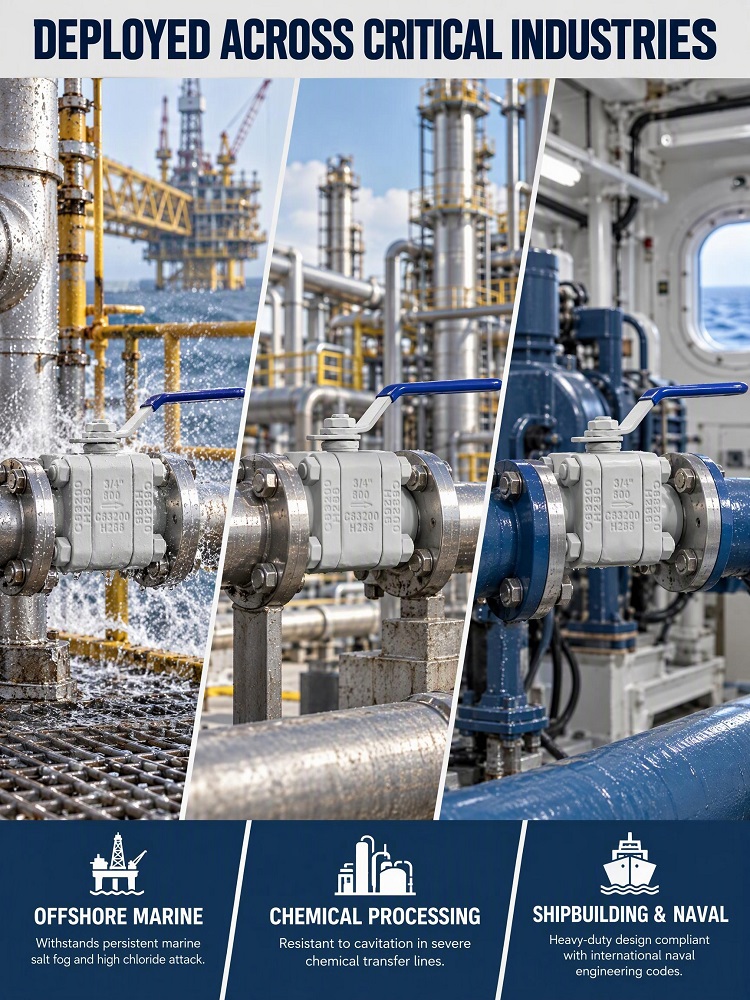

Applications and Industry Service

The C63200 nickel aluminum bronze ball valve is specified wherever seawater or brine is the process fluid and the pressure rating reaches the 600LB class. On offshore platforms the valve isolates firewater ring mains, seawater lift pumps, cooling water loops, and chemical injection skids. The alloy resists both general corrosion and localized pitting in aerated seawater at temperatures up to 50 °C, giving a service life measured in decades rather than years.

In desalination plants the valve handles high pressure brine on the reject side of reverse osmosis membranes, where chloride concentration is several times that of normal seawater. The three piece body allows fast seat replacement during scheduled maintenance without cutting the high pressure tubing. Ball valves in this service are often cycled daily, and the PTFE seat with C63200 ball gives low wear rates and predictable torque over thousands of cycles.

Shipboard applications include seawater cooling for main engines and generators, ballast systems, and firefighting mains. The compact 3/4 inch size fits into the dense piping runs of engine rooms, and the lockable handle meets maritime safety requirements for valve position indication. Navy and coast guard vessels often specify C63200 valves to MIL-V-24624 for reliability in combat or rescue conditions.

Onshore coastal chemical plants use the valve for chlorine dioxide, hypochlorite, and brine transfer where both corrosion resistance and high pressure containment are needed. The nickel aluminum bronze body is also compatible with aliphatic hydrocarbons and aromatic solvents, extending the valve’s use into chemical process isolation beyond marine service.

Installation, Operation and Maintenance

Before installation inspect the NPT threads or socket weld ends for damage and confirm the valve bore is free of debris. For NPT installation apply a thread sealant compatible with the process fluid; PTFE tape is acceptable for water and oil service, but anaerobic sealant is preferred for gas service to prevent tape fragments from entering the line. Tighten the valve into the female fitting by the hex on the end cap, not by the handle or body, to avoid distorting the seat alignment.

For socket weld installation align the pipe squarely in the socket and maintain the 1.5 mm root gap required by ASME B16.11. Weld with a nickel bronze or compatible filler metal to match the C63200 base metal chemistry. Allow the weld to cool naturally; do not quench, as rapid cooling can stress the bronze and reduce corrosion resistance. After welding, pressure test the joint before putting the line into service.

During operation the valve is cycled by rotating the handle 90 degrees. The handle position indicates port alignment: parallel to the pipe is open, perpendicular is closed. Do not use the handle as a lever to tighten the valve into the line or to support piping weight. If the valve is fitted with a spring-return handle, verify the return direction before pressurising; a spring-return configured for fail-close will snap shut when released.

For inline maintenance, isolate and depressurise the line, then unbolt the body bolts and remove the centre section while leaving the end caps in the pipeline. Inspect the seats for wear or extrusion, the ball for scoring, and the stem packing for leakage. Replace worn seats with the same material grade and reassemble with a new gasket. Re-torque the body bolts to the specified pattern and retest the seat at 1.1 times the rated pressure before returning to service.

How to Specify and Order

To place an order, state the nominal size (3/4 inch / DN20), pressure class (Class 600), body material (C63200 nickel aluminum bronze), end connection type (NPT or socket weld), seat material (PTFE, RPTFE, or PEEK), and handle type (standard lever, lockable lever, or spring return). Indicate whether marine type approval, PED documentation, or fire safe testing is required, and quote the design standard, usually API 608.

Standard specifications are accepted from a minimum order of one piece, with regular lead time of 2 to 3 weeks for stock material sizes. The delivery file includes the EN 10204 3.1 material certificate for C63200, a dimensional report, a hydrostatic test report with pressure and duration records, and a packing list. Export packaging uses a wooden case with the valve bore plugged and the threads or weld ends protected by plastic caps. Third party inspection and witness testing can be arranged on request, and the results are added to the final document package.
