1. What fusion bonded epoxy is and why water systems use it
Fusion bonded epoxy, or FBE, is a thermoset powder coating applied to a prepared steel surface and cured in place to form a hard, continuous film. Water transmission and desalination systems use it because internal corrosion is the main threat to a carbon steel valve body, and a properly applied FBE layer separates the steel from the water without closing the bore or changing the flow path. Because the film is formed by heat rather than by solvent, FBE contains no volatile organic compounds and cures in only a few minutes. For potable water, the coating chemistry is selected to meet the relevant contact standard before the valve is approved. The film is applied after the body has been machined and finished, so the coating has to be masked off at flange faces, seat pockets and threaded ports to preserve the sealing dimensions.
2. Coating build-up step by step
Coating quality is decided by surface preparation more than by the powder itself. The sequence below reflects the stages that determine whether the film will stay bonded for the life of the valve.
| Stage | Specification typical | Check |
|---|---|---|
| Surface preparation | Abrasive blast to near white metal | Anchor profile around 50 to 100 microns |
| Pre-heat | Part heated above the powder cure temperature | Substrate temperature recorded |
| Application | Electrostatic spray of FBE powder | Film thickness checked wet and dry |
| Curing | Held until full cure is reached | Gel time or differential scanning check |

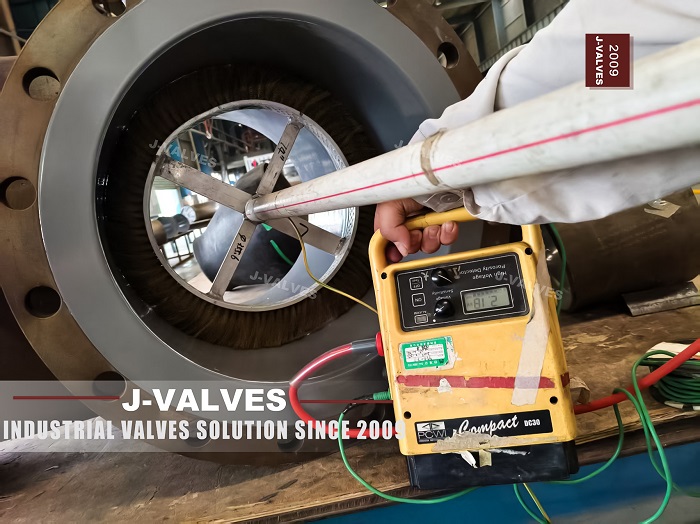

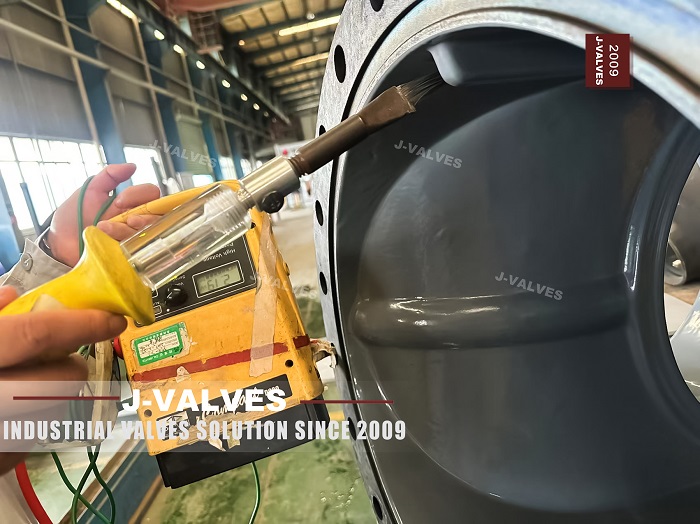

| Inspection | Holiday test across the coated surface | No spark at the test voltage |
A film that is thick enough and fully cured resists undercutting at a scratch; a film that is thin or under-cured will not.
3. FBE compared with internal lining and duplex body material
FBE is only one route to a corrosion-resistant water valve. Cement mortar lining is common in large pipes but is rarely used inside a valve, because the liner cannot survive ball rotation. A rubber or PTFE lining gives a chemically inert surface but adds wall thickness and can be damaged at the seat. Choosing a solid duplex body removes the coating entirely and gives a corrosion-resistant valve that can be machined and re-machined, at a much higher material cost than carbon steel with FBE. In most specifications, carbon steel with internal FBE is the economical choice for large water valves, while duplex is reserved for seawater or high-chloride duty.
4. Handling and coating repair on site
FBE film is hard but brittle, and most field damage comes from slings, chains and impact during handling rather than from the water itself. Valves should be lifted from the body or the flange faces with web slings, never from the coating, and stored so the coated surface does not rest on the ground. If a small area is damaged, the standard repair is a two-part epoxy patch, applied to a clean, dry surface and allowed to cure before the line is filled. Damage that exposes bare steel across a large area, or that reaches a seat or sealing surface, is normally treated as a coating failure and the valve is returned to the workshop.
5. Typical valve scopes in water and desalination plants
Water and desalination plants use coated ball valves across a predictable set of duties. Raw water intake and brine lines carry the most aggressive conditions and often combine FBE with a corrosion-resistant trim. Filter and membrane trains need tight isolation, so bubble-tight ball seats are specified. Distribution and treated water lines favour carbon steel bodies with internal FBE for cost and for flow. In every case the coating specification, the holiday test result and the repair procedure travel with the valve, so the plant can match the coating on later purchases and keep internal protection consistent across the whole line. Brine and concentrate lines are the exception in cost terms, because they carry the highest chloride load and often justify a higher alloy or a thicker coating.
6. Frequently Asked Questions
How thick is an FBE coating?
A single-layer FBE coating is typically 300 to 500 microns thick, applied over an abrasive blast profile of about 50 to 100 microns. The exact figure is set by the pipeline or valve specification and by the powder used. Thickness is checked both wet and dry, and an uneven film is trimmed back rather than built up, because a very thick coat can crack on cooling.
Is FBE applied internally or externally?
FBE can be applied to either surface, but in water valves it is most often the internal coating, because the internal surface faces the water and is the corrosion-critical side. External FBE is used on buried pipelines and can also be applied to a valve body for soil burial. The same process serves both, but internal coating demands extra care around the seat and the bore.
Can damaged FBE coating be repaired?
Yes, small areas of damage can be repaired on site with a two-part epoxy patch applied to a clean, dry surface. The patch is a field repair, not an equivalent to the original heat-cured film, so it should be limited to minor damage. Large areas, or damage at a seat or sealing surface, usually require the valve to be returned for re-coating.
