I. What is API 6D Standard for Pipeline Ball Valves
API 6D published by American Petroleum Institute is the globally‑recognized specification for pipeline valves used in oil, gas and petrochemical sectors. It covers design calculation, manufacturing rules, material requirements, fire‑safe construction, blow‑out proof stem, and mandatory factory test protocols for ball valves, gate valves and check valves.

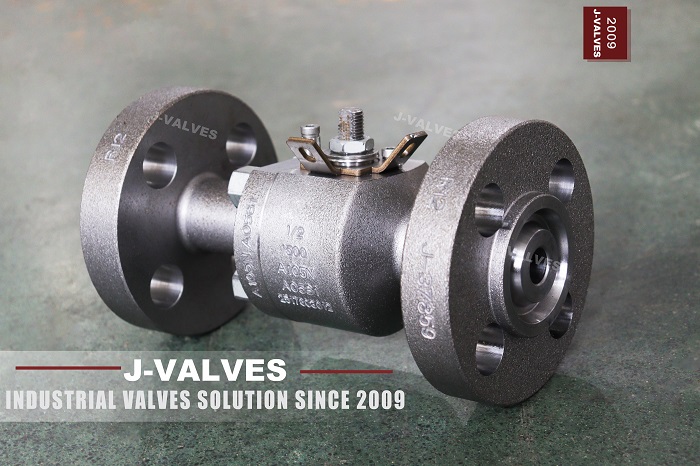

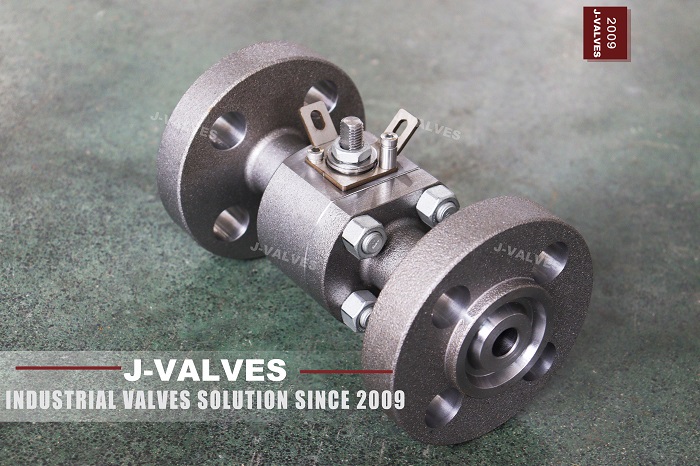

For the compact high‑pressure 1/2" 1500LB A105N two‑piece flanged ball valve, API 6D sets strict minimum wall thickness, ASME B16.5 flange dimension compliance, pressure‑temperature rating, fire‑safe features and leakage acceptance criteria. Valves complying with full API 6D requirements deliver reliable safety for pressurized flammable process fluid pipelines, different from general‑purpose industrial ball valves.
II. Core Specification Breakdown: 1/2", Class 1500LB & A105N Forged Steel
NPS 1/2 (DN15) Small‑Bore High‑Pressure Ball Valve
NPS 1/2 is a small nominal size. Many users misunderstand small‑size valves cannot handle high pressure. This 2‑piece ball valve is rated Class 1500, perfectly suited for instrument take‑off lines, sampling loops and branch connections where compact footprint and high differential pressure are required.
Class 1500LB Pressure Rating
Class 1500 is a high‑pressure class following ASME B16.34. Actual allowable working pressure varies with operating fluid temperature. Flange ends comply with ASME B16.5 RF raised‑face flange, for direct bolt‑on connection with matching process piping flanges.
A105N Forged Carbon Steel Body
A105N means A105 carbon steel forging with Normalized heat treatment. Normalization refines internal grain structure and improves low‑temperature impact resistance, preventing brittle fracture under high‑pressure service.
A105N forged steel works well for oil, natural gas and non‑corrosive process fluid, service temperature range: ‑29℃ ~ +425℃. Two‑piece (2‑piece / 2P) bolted body construction enables convenient disassembly for ball and seat inspection & on‑site maintenance.
III. Key API 6D Mandatory Features
1. Blow‑out‑proof stem: Stem assembled from inside valve body. API 6D mandatory design prevents stem ejection under internal pressure for operator safety.
2. Fire‑safe construction: When soft seats melt during fire events, metal‑to‑metal secondary sealing still limits hazardous medium leakage.
3. Optional DBB (Double Block & Bleed): DBB configuration can isolate upstream & downstream pressure and vent cavity pressure for safe maintenance work.
4. Full‑scope factory test: Each API 6D ball valve shall undergo body hydrostatic test, high‑low pressure seat leakage test with formal test reports.
IV. Typical Application Industries
1. Oil refinery high‑pressure process piping
2. Natural gas gathering & compressor station small‑bore branches
3. Power plant auxiliary high‑pressure lines
4. Petrochemical instrument isolation & sampling loops
5. Oil & gas well site surface pipeline system
Note: A105N carbon steel is NOT suitable for strong corrosive fluid. For corrosive service, select stainless steel material such as A182‑F316 / CF8M.
V. Practical Valve Selection Guidance
1. Verify full API 6D compliance: Do not only check appearance. Request material certificate, normalized heat‑treatment document and API required test reports.
2. Confirm flange standard: Class 1500 flange dimension ASME B16.5. Avoid mismatching different flange standards.
3. Operating temperature limit: Working pressure derates when service temperature exceeds A105N rated range up to 425℃.
4. Actuator option: Manual lever as standard; can be fitted with pneumatic or electric actuator for remote automatic operation.
VI. Conclusion
The 1/2" 1500LB A105N two‑piece flanged ball valve implements API 6D authoritative pipeline valve standard. It combines robust A105N forged steel pressure‑containing performance and maintainable two‑piece body design. For small‑bore high‑pressure industrial applications, API 6D qualified forged ball valves minimize leakage risk and body failure risk to guarantee long‑term pipeline system stability.
