Introduction
In modern oil & gas, petrochemical, and industrial pipeline systems, Reduced Bore Trunnion Mounted Ball Valves are widely used due to their high pressure capability, stable operation, and excellent sealing performance.
Compared with floating ball valves, the trunnion mounted design provides additional ball support, reducing operating torque and improving reliability in large diameter and high-pressure applications.
J-VALVES specializes in manufacturing high-performance Reduced Bore Trunnion Mounted Ball Valves for demanding pipeline systems worldwide.
1. Structural Features of Reduced Bore Trunnion Ball Valve

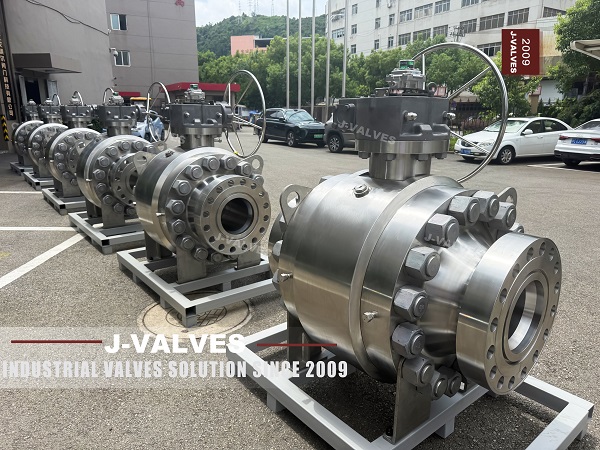

A Reduced Bore Trunnion Mounted Ball Valve adopts a fixed ball structure supported by upper and lower trunnions.
Main features include:
Fixed ball design
Reduced flow passage diameter
High-pressure resistance
Low operating torque
Compact and robust structure
The trunnion support system minimizes the load transferred to the valve seats, improving sealing stability and extending service life.
2. Advantages of Reduced Bore Design
Compared with full bore ball valves, reduced bore designs offer advantages in specific applications:
Smaller valve size and weight
Lower manufacturing cost
Reduced installation space
Suitable for high-pressure pipeline systems
The optimized flow channel design maintains reliable performance while meeting pipeline operation requirements.
3. Reliable Sealing Performance
For critical pipeline applications, sealing reliability is essential.
J-VALVES Trunnion Mounted Ball Valves feature:
Double sealing seat design
Fire-safe structure
Anti-static protection
Emergency sealant injection system
These features help reduce leakage risks and ensure safe operation under demanding conditions.
4. Industrial Applications
Reduced Bore Trunnion Mounted Ball Valves are commonly used in:
Oil and gas transmission pipelines
Natural gas processing systems
Petrochemical plants
Power generation facilities
High-pressure industrial pipelines
They are especially suitable for applications requiring frequent operation and long-term reliability.
5. J-VALVES Advantages in Trunnion Mounted Ball Valve Manufacturing
As a professional industrial valve manufacturer, J-VALVES provides customized ball valve solutions according to customer requirements.
Professional Engineering Capability
J-VALVES designs valves according to international standards, including:
API 6D
ASME B16.34
ISO 14313
Advanced Manufacturing Process
J-VALVES applies:
Precision machining technology
High-quality material selection
Professional assembly processes
Strict pressure and leakage testing
to ensure stable performance and long service life.
Conclusion
The Reduced Bore Trunnion Mounted Ball Valve provides an efficient solution for high-pressure pipeline applications requiring reliable isolation, low operating torque, and durable performance.
With professional manufacturing experience, advanced technology, and strict quality control, J-VALVES delivers high-performance trunnion mounted ball valve solutions for oil & gas, petrochemical, and industrial applications worldwide.
