Introduction

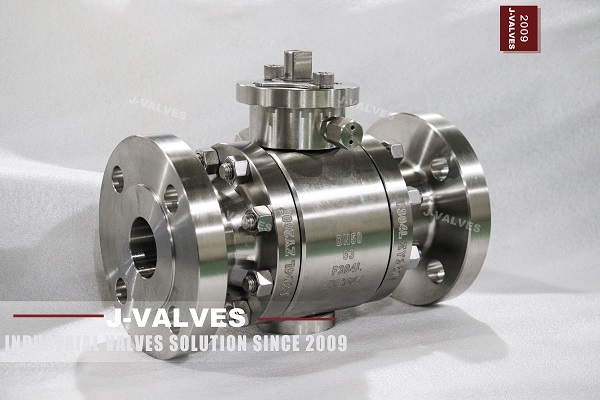

In modern industrial pipeline systems, valve sealing performance is one of the most important factors affecting safety, reliability, and maintenance costs. The Stainless Steel Trunnion Ball Valve is widely used in oil & gas, LNG, petrochemical, chemical, and energy industries due to its strong structure, stable operation, and excellent shut-off capability.
The core technology of a trunnion ball valve is its sealing system. Through optimized seat design, advanced materials, and precise manufacturing processes, stainless steel trunnion ball valves can achieve reliable isolation performance and meet strict leakage requirements in critical applications.
J-VALVES specializes in manufacturing high-performance trunnion mounted ball valves with customized sealing solutions for various industrial conditions.
Working Principle of Trunnion Ball Valve Sealing
A Trunnion Ball Valve uses a fixed ball structure supported by upper and lower trunnions. Unlike a floating ball valve, the ball remains stable during operation and does not move significantly under pipeline pressure.
The seat rings move slightly toward the ball surface to create effective sealing contact. This structure provides:
Stable ball positioning
Reduced operating torque
Improved sealing reliability
Longer service life
The fixed ball design makes trunnion ball valves especially suitable for large-size and high-pressure pipeline applications.
Soft Seat Technology in Stainless Steel Trunnion Ball Valves
Soft seat design is one of the most common sealing solutions for stainless steel trunnion ball valves. The seat materials usually include PTFE, reinforced PTFE, and other high-performance polymer materials.
The flexible characteristics of soft seat materials allow the seat to maintain close contact with the ball surface, providing excellent sealing performance.
The main advantages of soft seat technology include:
Excellent low leakage performance
Reliable shut-off capability
Lower friction during operation
Smooth opening and closing process
Soft seated trunnion ball valves are widely applied in natural gas pipelines, oil systems, process equipment, and general industrial applications where tight sealing performance is required.
Advantages of Soft Seat Sealing Design
The soft seat structure provides excellent sealing ability even under low-pressure conditions. The elastic sealing surface can compensate for small machining variations and maintain reliable contact with the ball.
Key benefits include:
Improved sealing efficiency
Reduced operating torque
Lower maintenance requirements
Suitable for frequent valve operation
For applications requiring reliable isolation and minimal leakage, soft seat trunnion ball valves provide an effective solution.
Metal Seat Technology in Trunnion Ball Valves
For severe operating conditions, metal seat technology provides enhanced durability and reliability.
Metal seated stainless steel trunnion ball valves use hardened metal sealing surfaces, making them suitable for applications involving:
High temperature
Abrasive media
Frequent operation
Severe service conditions
Compared with soft seat designs, metal seats offer better resistance against mechanical wear, erosion, and temperature changes.
Benefits of Metal Seat Design
Metal seat trunnion ball valves are designed for long-term operation in demanding environments.
Their advantages include:
Excellent wear resistance
Strong temperature capability
Improved resistance to particle damage
Extended service life
These features make metal seated trunnion ball valves suitable for refineries, power plants, chemical facilities, and high-performance industrial systems.
Zero Leakage Design of Stainless Steel Trunnion Ball Valves
For critical isolation applications, achieving reliable sealing with minimal leakage is essential.
The Trunnion Ball Valve Sealing system combines several important design elements:
Precision-machined ball surface
Optimized seat geometry
High-quality sealing materials
Accurate assembly control
Through these technologies, stainless steel trunnion ball valves can provide:
Reliable shut-off performance
Reduced leakage risks
Improved operational safety
Longer maintenance intervals
J-VALVES designs sealing systems according to different operating conditions to ensure stable performance throughout the valve service life.
Applications of Stainless Steel Trunnion Ball Valves
Oil and Gas Industry
Stainless steel trunnion ball valves are widely used in:
Oil and gas transmission pipelines
Offshore platforms
Gas processing facilities
Storage and transportation systems
Their reliable sealing capability helps ensure safe operation in critical pipeline networks.
LNG and Low Temperature Applications
With suitable material selection and sealing design, stainless steel trunnion ball valves can be applied in LNG and low-temperature systems.
Typical applications include:
LNG terminals
Gas processing equipment
Cryogenic auxiliary pipelines
Chemical and Industrial Applications
Stainless steel trunnion ball valves are also suitable for:
Corrosive media systems
Process isolation pipelines
High-pressure industrial equipment
The combination of stainless steel material and advanced sealing technology improves system reliability.
J-VALVES Advantages in Stainless Steel Trunnion Ball Valve Manufacturing
1. Professional Sealing Solution Design
J-VALVES provides customized sealing solutions based on operating conditions, including:
Soft seat design
Metal seat design
Fire-safe sealing structure
Low-temperature sealing solutions
Engineers select appropriate materials and sealing structures according to pressure, temperature, and media requirements.
2. Strict Stainless Steel Material Control
Material quality directly affects valve performance. J-VALVES applies strict inspection procedures, including:
Material verification
Chemical composition analysis
Mechanical property testing
Machining quality inspection
This ensures reliable material performance for demanding industrial applications.
3. Advanced Manufacturing and Testing
Each stainless steel trunnion ball valve undergoes comprehensive testing, including:
Shell pressure testing
Seat leakage testing
Functional operation testing
Dimensional inspection
These processes help guarantee stable sealing performance before shipment.
4. Customized Industrial Valve Solutions
J-VALVES provides stainless steel trunnion ball valve solutions with:
Different pressure classes
Various connection designs
Manual or actuator operation
Soft seat and metal seat options
Customized material selections
Products can be manufactured according to international standards, including:
API 6D
ASME B16.34
ISO 17292
Conclusion
The sealing technology of a Stainless Steel Trunnion Ball Valve plays an important role in ensuring safe and reliable pipeline operation. Through advanced soft seat and metal seat designs, these valves can provide excellent sealing performance for different industrial environments.
With professional engineering experience, strict quality management, and advanced manufacturing capability, J-VALVES delivers reliable Trunnion Ball Valve Sealing solutions for oil & gas, LNG, petrochemical, and industrial pipeline applications worldwide.
