For oil & gas, chemical and high‑pressure process piping, valve reliability is critical for plant safety.
ASME B16.34 is the global leading standard covering valve pressure‑temperature ratings, material limits, dimensional and design requirements. API 598 specifies mandatory inspection and pressure test procedures for final valve acceptance, including shell strength and seat tightness tests.

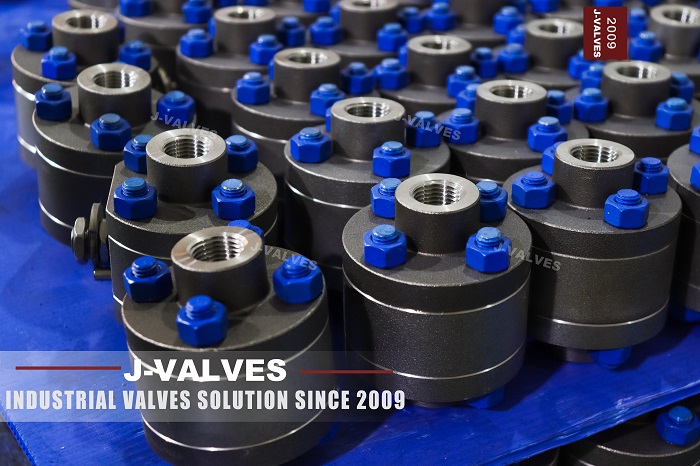

The forged steel 3‑piece (3PC) threaded ball valve is engineered to ASME B16.34 and fully tested per API 598. It combines high‑strength forged body, separable three‑piece construction and threaded end connection, making it a preferred choice for small‑bore high‑pressure industrial pipelines.
1. ASME B16.34 Forged Body Design for Severe High‑Pressure Service
Under ASME B16.34 specification, pressure class, allowable material stress and pressure‑temperature charts are strictly controlled.
The valve body is hot forged from A105 carbon steel, F304 or F316 stainless steel. Compared with cast valve bodies, forged steel delivers dense metallurgical structure, minimizing porosity and casting defects, offering better resistance to shock and cyclic high‑pressure load.
The three‑piece bolted construction supports multiple thread end options: NPT, BSPT, BSPP. Compact size fits instrument loops, equipment skids and confined installation space. Pressure ratings cover Class 800 and 1000 WOG for oil, gas, steam and chemical service.
2. Full‑scope API 598 Factory Testing for Shell Integrity & Bubble‑tight Shut‑off
Superior design must be verified by standardized testing. Every finished valve undergoes API 598 required tests: hydrostatic shell test at 1.5 times rated working pressure, bi‑directional seat leakage test. Soft‑seat version achieves bubble‑tight zero leakage, meeting acceptance criteria for most industrial EPC projects.
API 598 test report is widely required in tender specifications as key proof of valve quality.
3. 3‑Piece Body for Simplified In‑line Maintenance & Lower TCO
The biggest advantage of the 3PC design is serviceability. The valve consists of two end body sections plus central cartridge assembly (ball, seats, stem).
Technicians do NOT need to unthread the valve from existing pipework. Simply loosen body bolts, remove the central internals to replace seats, seals and stem packing on‑site. It cuts plant downtime drastically and reduces total cost of ownership over valve service life.
4. Threaded End + Full‑Port Design: Fast Installation & Low Flow Resistance
Threaded connection enables quick assembly without welding, ideal for small‑bore sizes from DN8 to DN50. Full‑port bore option minimizes pressure drop across the valve for liquid and gas media.
Quarter‑turn 90‑degree operation delivers fast open/close action. ISO 5211 top mounting pad is available for direct mounting of pneumatic or electric actuators to realize automated remote control.
5. Typical Industrial Applications
Oil & Gas: process branches, compression loops, sampling systems
Fine Chemical: high‑pressure solvent and corrosive fluid isolation
Power plant & steam service, high‑pressure water treatment
Skid‑mounted equipment, instrument piping packages
Conclusion
Forged steel 3PC threaded ball valve combines standardized engineering from ASME B16.34 and strict validation via API 598 testing. Forged body provides robust high‑pressure performance; three‑piece construction reduces maintenance expense; threaded ends allow rapid field installation. For small‑size high‑pressure process applications, it is a balanced selection for safety, cost‑efficiency and maintainability.
