Introduction

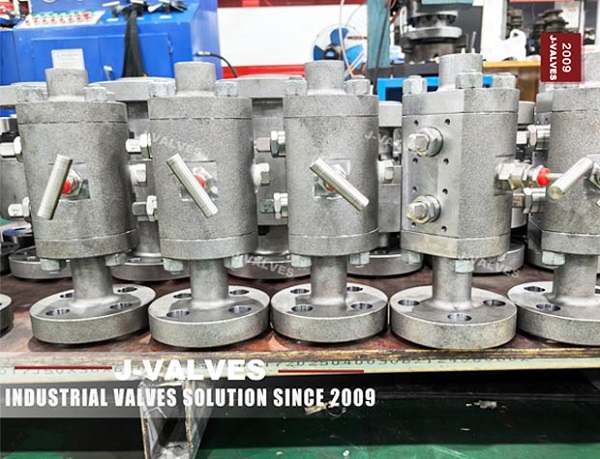

In modern industrial pipeline systems, reliable isolation performance is essential for ensuring safe operation and reducing maintenance risks. The Floating DBB Ball Valve (Double Block and Bleed Ball Valve) is widely used in small-diameter and medium-pressure applications due to its compact structure, excellent sealing capability, and efficient isolation function.
Unlike traditional floating ball valves, the Floating DBB Ball Valve integrates a double block and bleed design, allowing operators to achieve upstream and downstream isolation with a single valve. This makes it an ideal solution for applications requiring higher safety standards, space-saving installation, and reliable shut-off performance.
J-VALVES specializes in manufacturing high-quality DBB ball valve solutions, providing customized floating ball designs for oil & gas, petrochemical, LNG, and industrial pipeline applications.
Working Principle of Floating DBB Ball Valve
A Floating DBB Ball Valve uses a floating ball structure, where the ball is not fixed by a trunnion but is allowed to move slightly under pipeline pressure.
When the valve is closed:
Upstream pressure pushes the ball toward the downstream seat.
The ball creates a tighter contact with the seat sealing surface.
The double block structure provides two independent sealing barriers.
The bleed function allows pressure release and cavity monitoring.
This self-adjusting sealing principle helps improve shut-off reliability, especially in smaller diameter pipelines.
Key Design Features of Floating DBB Ball Valve
1. Compact Floating Ball Structure
The floating ball design provides a simple and efficient internal structure.
Compared with trunnion mounted ball valves, floating DBB ball valves feature:
Fewer internal components
Smaller overall dimensions
Lower weight
Easier installation
These advantages make them especially suitable for compact pipeline systems where installation space is limited.
2. Advantages in Small Diameter Applications
Floating DBB Ball Valves are commonly applied in smaller pipeline sizes due to their excellent cost-performance ratio.
Typical advantages include:
Compact valve body design
Lower manufacturing cost
Easy operation
Reduced maintenance requirements
They are widely used in:
Instrumentation systems
Sampling pipelines
Process isolation lines
Skid-mounted equipment
For small bore applications, the floating design provides sufficient sealing performance without requiring the more complex support structure of a trunnion ball valve.
3. Reliable Double Block and Bleed Function
The main feature of a DBB Ball Valve is its ability to provide double isolation and pressure release.
The design allows operators to:
Isolate upstream pressure
Isolate downstream pressure
Release trapped cavity pressure
Confirm sealing condition
This reduces the risk of unwanted fluid migration and improves safety during inspection or maintenance activities.
Sealing Characteristics of Floating DBB Ball Valve
1. Pressure Assisted Sealing
The floating ball design uses pipeline pressure to enhance seat contact.
Higher upstream pressure generates additional force between the ball and seat, improving sealing efficiency.
Benefits include:
Reliable shut-off performance
Reduced leakage possibility
Stable operation under changing pressure conditions
2. Soft and Metal Seat Options
Depending on operating conditions, Floating DBB Ball Valves can be equipped with different sealing solutions.
Common options include:
PTFE soft seats for general applications
Reinforced polymer seats for improved durability
Metal seats for high-temperature or demanding services
This flexibility allows the valve to adapt to different industrial requirements.
Applications of Floating DBB Ball Valve
Oil & Gas Systems
Floating DBB Ball Valves are widely used in:
Fuel gas systems
Instrument isolation
Pipeline branch connections
Metering systems
Their compact design makes them suitable for space-limited installations.
Petrochemical and Chemical Plants
In process industries, these valves provide reliable isolation for:
Equipment maintenance
Sampling systems
Process control lines
LNG and Energy Applications
For auxiliary LNG systems and energy facilities, floating DBB ball valves provide:
Reliable shut-off
Compact installation
Improved operational safety
J-VALVES Advantages in Floating DBB Ball Valve Manufacturing
1. Professional Valve Design Capability
J-VALVES develops Floating DBB Ball Valve solutions according to different application requirements, including:
Valve size selection
Pressure rating
Material selection
Seat design
Manual or actuated operation
2. Strict Manufacturing Quality Control
J-VALVES applies comprehensive inspection procedures throughout production:
Raw material verification
Precision machining inspection
Pressure testing
Seat leakage testing
Functional operation testing
This ensures reliable valve performance for industrial applications.
3. Customized Industrial Solutions
J-VALVES can provide Floating DBB Ball Valves with options including:
Carbon steel body
Stainless steel construction
Low-temperature materials
Fire-safe design
Anti-static structure
Different connection types
Products can be manufactured according to international standards:
API 6D
ASME B16.34
ISO 17292
Conclusion
The Floating DBB Ball Valve combines the advantages of floating ball technology with double block and bleed functionality, providing a compact, reliable, and efficient isolation solution for small and medium pipeline applications.
With its pressure-assisted sealing design, space-saving structure, and flexible application capability, it has become an important valve solution for oil & gas, petrochemical, LNG, and industrial systems.
Through professional engineering experience, advanced manufacturing technology, and strict quality control, J-VALVES provides high-performance Floating DBB Ball Valve solutions designed for safe operation and long service life.
