Double Block and Bleed (DBB) ball valves are essential components in industrial piping systems where safety, isolation, and maintenance efficiency are paramount. Unlike standard ball valves, DBB valves offer dual isolation points with an intermediate bleed mechanism, allowing operators to safely confirm isolation before maintenance. A critical aspect of their design is the flange connection, which directly impacts performance, installation flexibility, and system reliability.

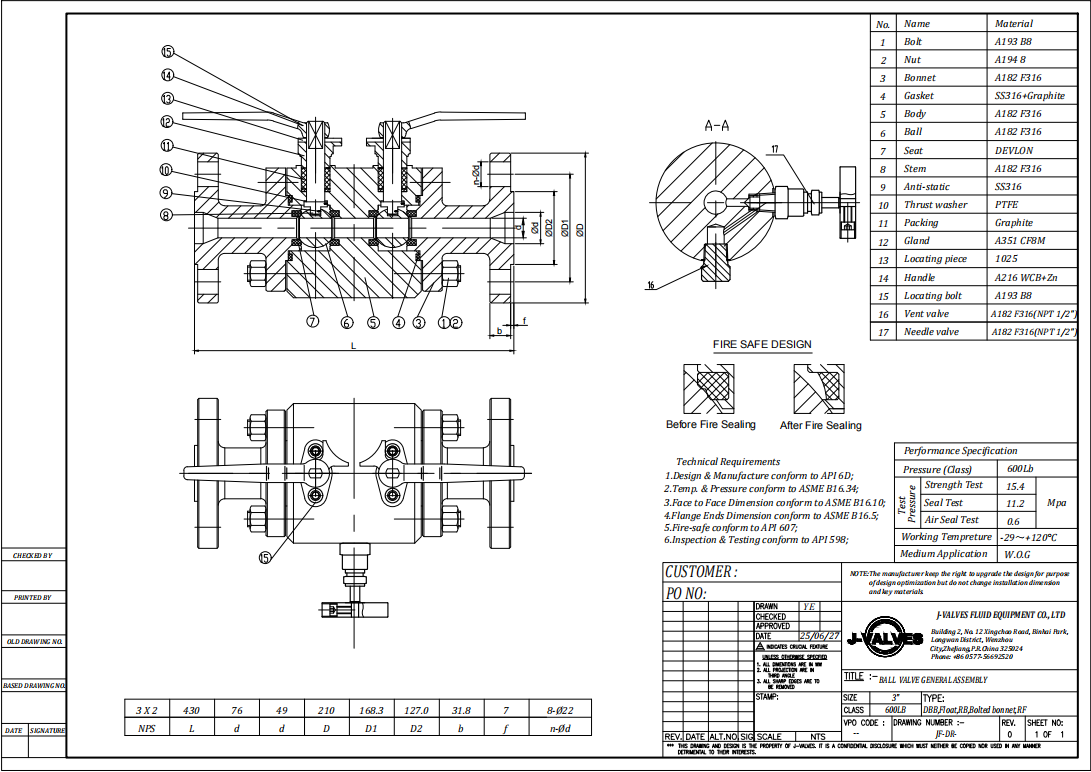

DBB flange ball valve.png

1. Understanding DBB Ball Valve Flange Design

What is a DBB Ball Valve Flange?

A flange is a flat, protruding rim or collar at the end of a valve, designed to connect piping systems using bolts, gaskets, and nuts. In DBB ball valves, flanges must withstand high pressures, prevent leakage, and maintain alignment between the double-blocking balls and the bleed system.

Key Flange Design Features

1.Standardization: Flanges for DBB ball valves are typically designed to meet ANSI/ASME B16.5 or B16.47 standards, ensuring compatibility with industrial pipelines.

2.Raised Face or Flat Face: Most DBB flanges have a raised face to improve sealing with gaskets under high pressure. Flat face flanges may be used for specific applications, such as corrosive environments.

3.Bolt Patterns: Proper bolt hole distribution is critical for maintaining uniform compression on the gasket, avoiding leaks and ensuring structural integrity.

4.Material Compatibility: DBB flanges are often made from stainless steel, carbon steel, or high-performance alloys to match valve body materials and resist corrosion, temperature, and pressure variations.

2. Advantages of Flanged DBB Ball Valve Design

1.Ease of Installation and Removal: Flanged connections allow DBB valves to be bolted directly to piping, simplifying installation and replacement without welding.

2.High Pressure and Temperature Ratings: Proper flange design ensures the valve can withstand extreme operating conditions in industrial systems, including oil, gas, chemical, and power applications.

3.Leak Prevention: The combination of a well-designed flange and suitable gasket material ensures tight sealing even under high differential pressures.

4.Maintenance Efficiency: Flanged DBB valves can be quickly removed or replaced without disturbing surrounding piping, reducing downtime.

3. Applications of Flanged DBB Ball Valves

DBB ball valves with flanged ends are widely used in industries that demand reliable isolation and safe maintenance. Common applications include:

3.1 Oil and Gas Industry

  • High-pressure pipelines require DBB valves to isolate sections during maintenance.

  • Flanged designs allow easy replacement in remote or offshore installations.

3.2 Chemical and Petrochemical Plants

  • Corrosive fluids and toxic chemicals necessitate double-block isolation to protect operators.

  • Flanged valves provide secure connections in process piping networks.

3.3 Power Generation

  • Steam and condensate lines use DBB valves to isolate turbines or boilers safely.

  • Flanged connections simplify shutdown procedures and routine inspections.

3.4 Water Treatment and Industrial Fluids

  • Used in high-flow pipelines for clean or dirty water systems.

  • Flanged DBB valves allow quick maintenance with minimal disruption.

4. Considerations for Selecting Flanged DBB Valves

1.Pressure and Temperature Rating: Ensure the valve and flange materials meet system requirements.

2.Corrosion and Chemical Resistance: Match materials to fluid type for longevity.

3.Installation Space: Flanged valves require more space compared to threaded or welded connections.

4.Maintenance Access: Consider flanged designs for systems that need frequent isolation and inspection.

5. Conclusion

DBB ball valves with flanged connections combine the benefits of double isolation and easy maintenance with the robustness of a standardized flange design. They are essential in high-pressure, high-temperature, and hazardous fluid systems, where safety, reliability, and operational efficiency are critical. Proper selection of flange material, size, and installation ensures long-term performance and reduces downtime across industrial applications.
