The seat is the real pressure-temperature limit
A ball valve is only as capable as the polymer or metal that seals against the ball. The body casting, the stem and the flange rating set the outer envelope, but the seat insert decides the working limit, because it is the part that must seal at every cycle. A valve can be machined from ASME Class 2500 material and still be constrained to a modest pressure once the polymer softens. Unfilled PTFE, the most common soft seat, is typically applied up to about 200 C in continuous service; above that it deforms under load and loses sealing force. The same body fitted with a metal seat is normally suitable to 650 C. This is why the pressure-temperature curve on a datasheet follows the seat material rather than the body material. J-VALVES builds soft seated and metal seated ball valves from 1/2 to 56 inch (DN15 to DN1400) across ASME Class 150 to 2500, and the seat is selected before the valve is quoted.
Material by material comparison

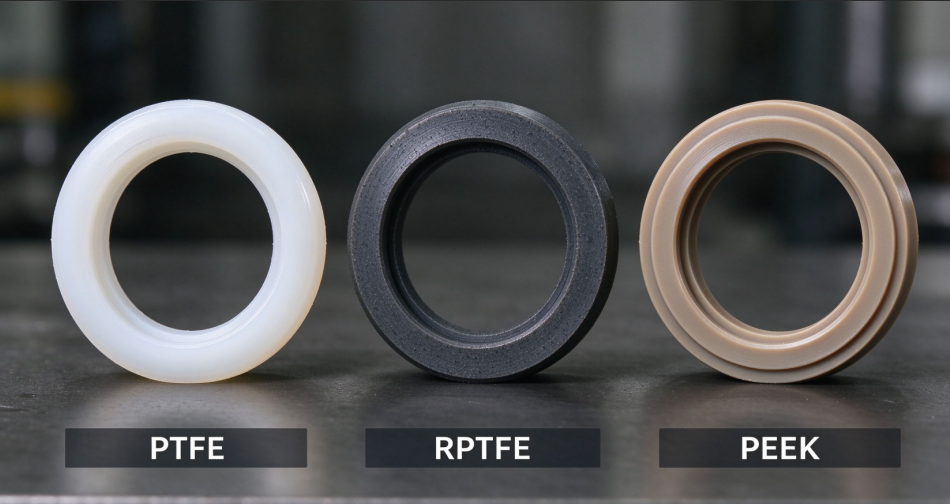

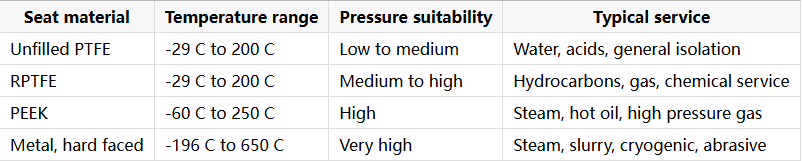

Four seat families cover most industrial enquiries, and each trades temperature range against chemical tolerance and cost. Unfilled PTFE gives the widest chemical resistance and the lowest friction, but the narrowest thermal window, and it cold flows under sustained load. Reinforced PTFE, usually written RPTFE and filled with glass or carbon, keeps a similar temperature ceiling while resisting deformation and extrusion far better, which is why it is the default for hydrocarbon and gas isolation. PEEK pushes the continuous limit to roughly 250 C with much higher mechanical strength, so it tolerates higher pressure and more frequent cycling. Metal seats, hard faced or coated, take the valve to 650 C where no polymer survives. Values in the table are typical for each family and must be confirmed against the real service conditions before a valve is ordered.
How soft seat derating works above 38 C
Polymer seats are rated at ambient temperature, and in most specifications the published pressure rating starts to fall from about 38 C. The mechanism is straightforward. As the polymer warms it loses stiffness, so the line pressure that presses it against the ball also begins to deform it. A seat that holds a full rating at ambient may be limited to a fraction of that value at 100 C, and the allowable pressure continues to fall as the temperature approaches the material ceiling. Derating tables must therefore be read at the maximum operating temperature, not at the design temperature of the line. Buyers should confirm that the quoted pressure is the value at the hottest condition the valve will actually see, including upset and clean-out cases, rather than the headline ambient figure on the first page of a catalogue.
Selection flow for common services
Work backwards from the service rather than from a preferred material. First fix the maximum continuous temperature and the maximum differential pressure across the seat. Then check chemistry, because aggressive acids and oxidisers point to PTFE or RPTFE while steam above 200 C points to PEEK or metal. Then check cycling, because a valve that strokes daily needs a seat that resists extrusion, which usually means a reinforced polymer rather than unfilled PTFE. Then check particle content, since slurry and solids service almost always justifies a metal seat even where temperature alone would allow a polymer. In most specifications the sequence ends with a fire-safe requirement, because a soft seated valve that loses its seat in a fire must still demonstrate limited leakage under API 607 or ISO 10497.
Failure modes: extrusion, cold flow and swelling
Three failure modes account for most soft seat problems in the field. Extrusion occurs when differential pressure pushes the polymer into the clearance between the ball and the seat pocket; it accelerates as the metal warms and the polymer softens, and it is controlled by tighter machining clearances, anti-extrusion rings and reinforced material. Cold flow is slow permanent deformation under steady load, so a seat that seals correctly on day one can lose sealing force after months under static pressure. Swelling follows chemical attack, typically from amines, some solvents and aromatic hydrocarbons, and shows up as rising torque together with a seat that no longer seals. Because the seat is a replaceable item, spare seats are supplied separately and a change of seat material can be advised without altering the body or the trim.
Frequently Asked Questions
Why choose RPTFE instead of PTFE? RPTFE resists deformation and extrusion better than unfilled PTFE while keeping a similar temperature ceiling of about 200 C. The glass or carbon filler stiffens the polymer, so it holds sealing force under higher differential pressure and longer static periods. For hydrocarbon, gas and general chemical isolation, RPTFE is normally the safer default. PTFE remains a valid choice for aggressive chemicals at low pressure.
Is PEEK suitable for steam service? PEEK is suitable for many steam services and is typically applied up to about 250 C, which covers saturated steam at common plant pressures. It carries much higher mechanical strength than PTFE or RPTFE, so it tolerates higher differential pressure and more frequent cycling. Above that limit, or where superheated steam and severe cycling combine, a metal seated valve with a hard faced ball is the more reliable choice.
What causes seat extrusion? Seat extrusion is caused by differential pressure driving the polymer into the clearance between the ball and the seat pocket. It worsens as temperature rises and the polymer softens, and it is most severe with unfilled PTFE under high pressure. Tighter machining clearances, anti-extrusion rings and reinforced materials such as RPTFE or PEEK reduce the risk substantially.
