In industrial piping systems, valve performance is not only about sealing ability or pressure rating. A valve must also fit the pipeline correctly. For a trunnion mounted ball valve, the ASME B16.10 standard plays an important role because it defines the face-to-face dimensions that help ensure proper installation, interchangeability, and system compatibility.
For industries that rely on high-pressure flow control, such as oil and gas, petrochemical processing, power generation, and water treatment, accurate dimensions are essential. A valve that meets the correct standard can reduce installation issues, simplify maintenance, and improve long-term reliability.
I. What Is ASME B16.10?
ASME B16.10 is a valve standard that specifies the face-to-face and end-to-end dimensions of valves. In practical terms, it defines the length between the two connection faces of a valve. This measurement is critical because it allows valves from different manufacturers to fit into piping systems without unnecessary modification.
For trunnion ball valves, this standard is especially important. These valves are commonly used in demanding applications where installation accuracy and interchangeability matter. When the face-to-face dimensions follow a recognized standard, engineers can design with confidence and installers can work with fewer surprises on site.
II. Why Face-to-Face Dimensions Matter
Face-to-face dimensions may seem like a simple measurement, but they have a major impact on the entire project.
If the valve length is incorrect, it can lead to misalignment, flange mismatch, excessive pipe stress, and installation delays. Proper dimensions also affect surrounding equipment such as actuators, supports, insulation, and access space for maintenance. In replacement projects, standardized dimensions are even more valuable because they help reduce downtime and avoid costly rework.
In short, face-to-face dimensions are one of the key factors that determine whether a valve is truly installation-friendly.
III. How ASME B16.10 Supports Trunnion Ball Valve Applications

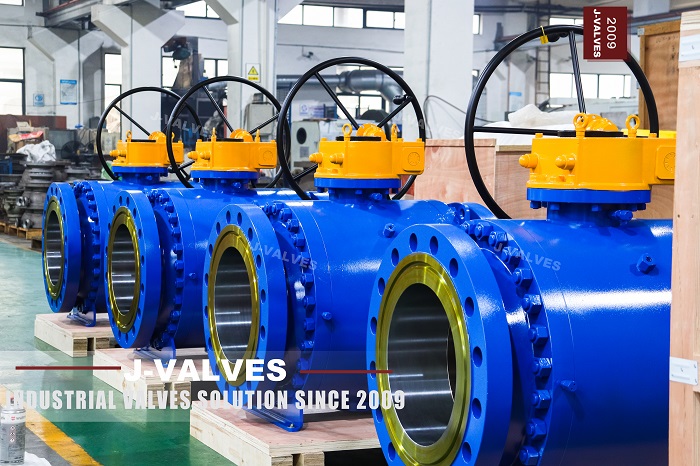

A trunnion mounted ball valve is designed for larger sizes and higher pressures. Its ball is supported by trunnions, which reduces operating torque and improves performance in continuous service.
When this valve type follows ASME B16.10 dimensional requirements, it offers several advantages:
easier integration into existing piping systems
better interchangeability between brands
more accurate plant layout and design
fewer on-site adjustments during installation
This is especially valuable in large industrial projects where even small dimensional differences can affect schedule, cost, and safety.
IV. Installation Fit: What to Check Before Assembly
Even when a valve complies with ASME B16.10, proper installation still requires careful verification.
Start by confirming the nominal size, pressure class, and end connection type. Next, check the actual face-to-face dimension against the project drawing. This is especially important when replacing an existing valve, because field conditions may differ from design assumptions.
It is also important to confirm the valve orientation, actuator position, and maintenance clearance. In piping systems with thermal movement or structural constraints, the installer should avoid forcing the valve into place. Excessive pipe stress can damage the valve body, seals, or connected piping.
For critical applications, additional requirements such as fire-safe design, anti-static protection, and leakage performance should also be reviewed.
V. Engineering Value of Standardized Dimensions
A trunnion ball valve that follows ASME B16.10 does more than meet a drawing requirement. It supports a more efficient and reliable project workflow.
Standardized dimensions help teams:
reduce installation errors
simplify procurement and replacement
improve valve interchangeability
shorten maintenance shutdowns
support better piping design coordination
For owners and operators, these benefits can translate into lower lifecycle costs and improved system uptime.
VI.Typical Industries
ASME B16.10 trunnion ball valves are widely used in:
oil and gas pipelines
refining and petrochemical plants
gas transmission and processing
power stations
marine and offshore systems
industrial water treatment facilities
These sectors often require strong pressure handling, stable sealing performance, and reliable installation fit.
VII. How to Choose the Right Trunnion Ball Valve
When selecting a valve, consider the following points:
compliance with ASME B16.10 face-to-face dimensions
pressure class and service conditions
body material and corrosion resistance
seat material and temperature range
fire-safe and anti-static requirements
connection style and project compatibility
The best valve is not only one that meets pressure requirements. It is also one that fits the pipeline properly and performs reliably over time.
VIII. FAQ
1. What does ASME B16.10 cover?
It covers face-to-face and end-to-end dimensions for valves to improve interchangeability and installation compatibility.
2. Why is face-to-face dimension important for trunnion ball valves?
Because it directly affects how the valve fits into the piping system, including alignment, maintenance access, and replacement compatibility.
3. Is ASME B16.10 applicable to all ball valves?
It applies to valve sizes and types covered by the standard. Product specifications should always be checked before installation.
4. What is the most common installation issue?
The most common issues are dimensional mismatch, pipe stress, and insufficient clearance for actuators or maintenance.
IX. Conclusion
ASME B16.10 trunnion ball valves offer more than dimensional consistency. They help improve installation fit, reduce project risk, and support long-term reliability in demanding industrial systems. For engineers, buyers, and plant operators, choosing a valve with standardized face-to-face dimensions is a practical way to improve both performance and efficiency.
If your project requires dependable trunnion ball valve solutions, focusing on dimensional standardization and installation compatibility will help ensure a smoother and more successful result.
