Home News Two Piece Stainless Steel 150LB Flange Floating Ball Valve with ISO5211 Mounting Pad
Publish Time: 2022-07-11
Views: 2
Author: Site Editor
Origin:
Website:
Inquire

Size 1/2’’ to 8’’, A351 CF8 material, 150LB pressure, each size 200 sets delivery to America customer for their own equipment.

This order all valves produce in investment casting to America customer. Our stainless steel ball valve design to API6D and API608, fire safe design and anti-static device, ISO5211 high mounting pad type also has locking device to meet customer’s requirements. Stainless Steel Ball Valve is soft seat, temperature range from -196℃ to 200 ℃ with different seat materials, such as PCTFE for super low temperature, PPL for high temperature in different working conditions. Ball type is floating type in pressure 150LB and 300LB. If need bigger pressure, we will suggest to use fixed ball type.

Generally floating ball valve can not use high pressure working conditions, and soft seat could reach zero leakage, which show better performance.

Hope this time customer could be satisfied with our products again, we insist on long-term cooperation business, improve ourselves and make win-win market.

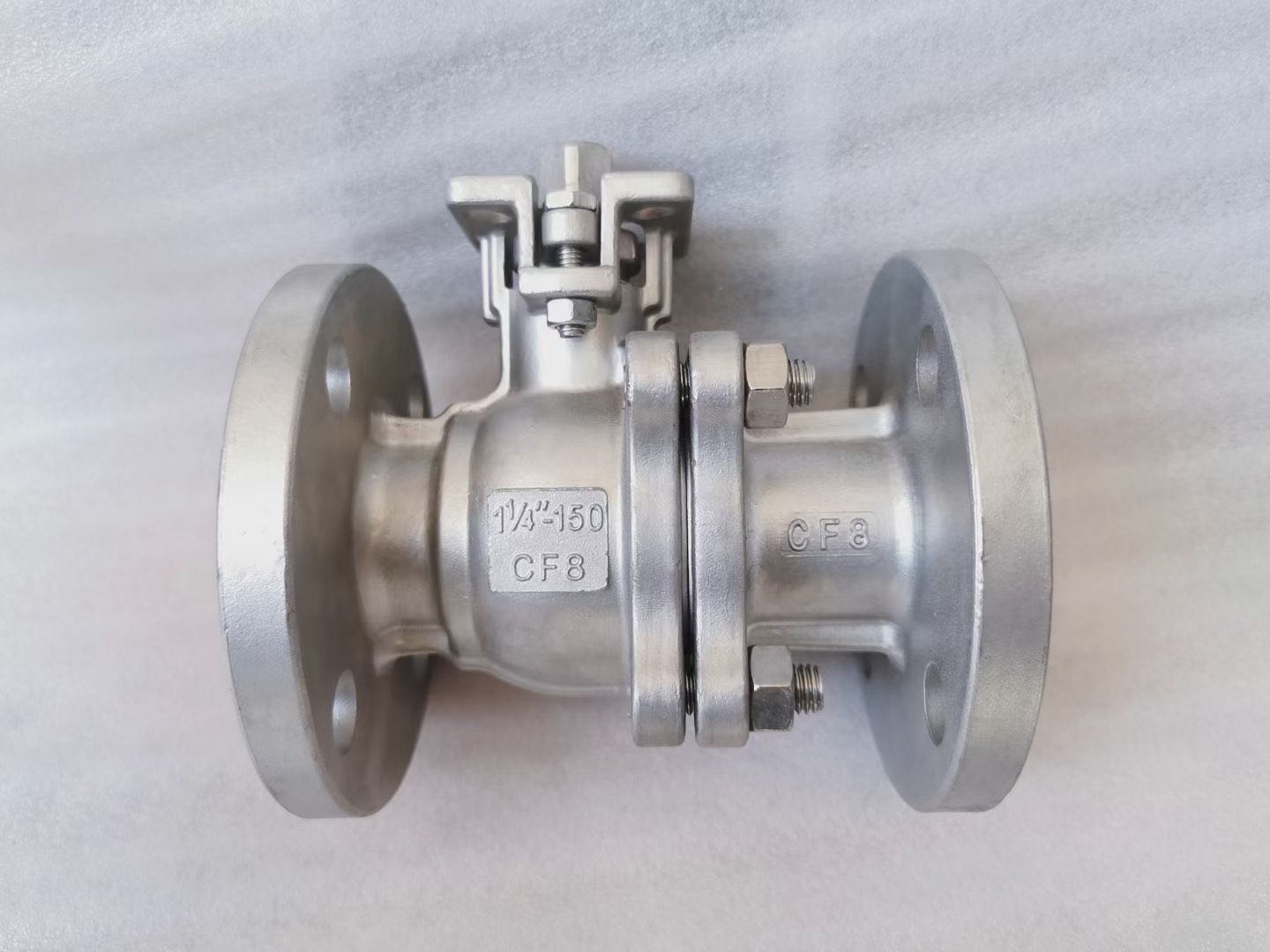

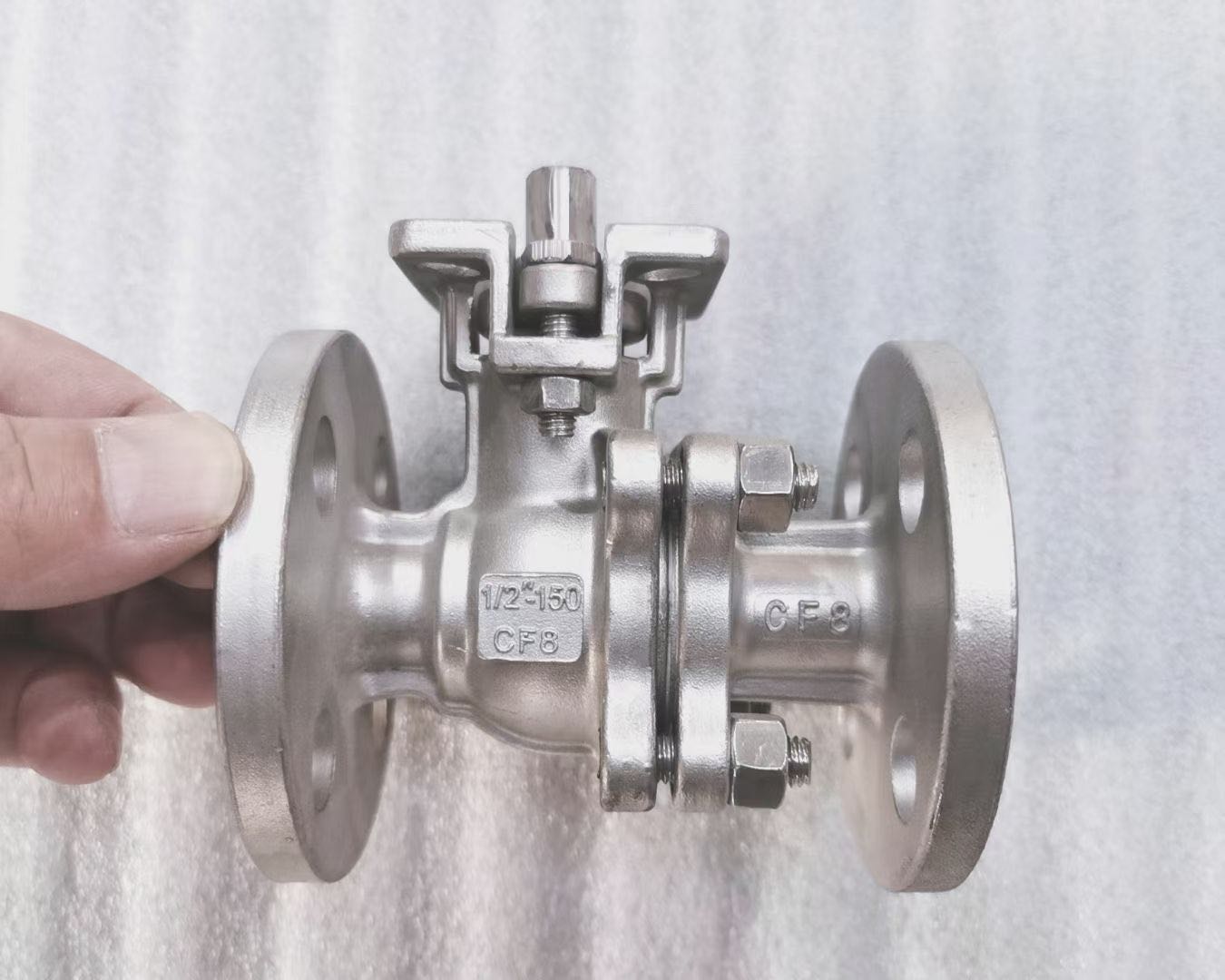

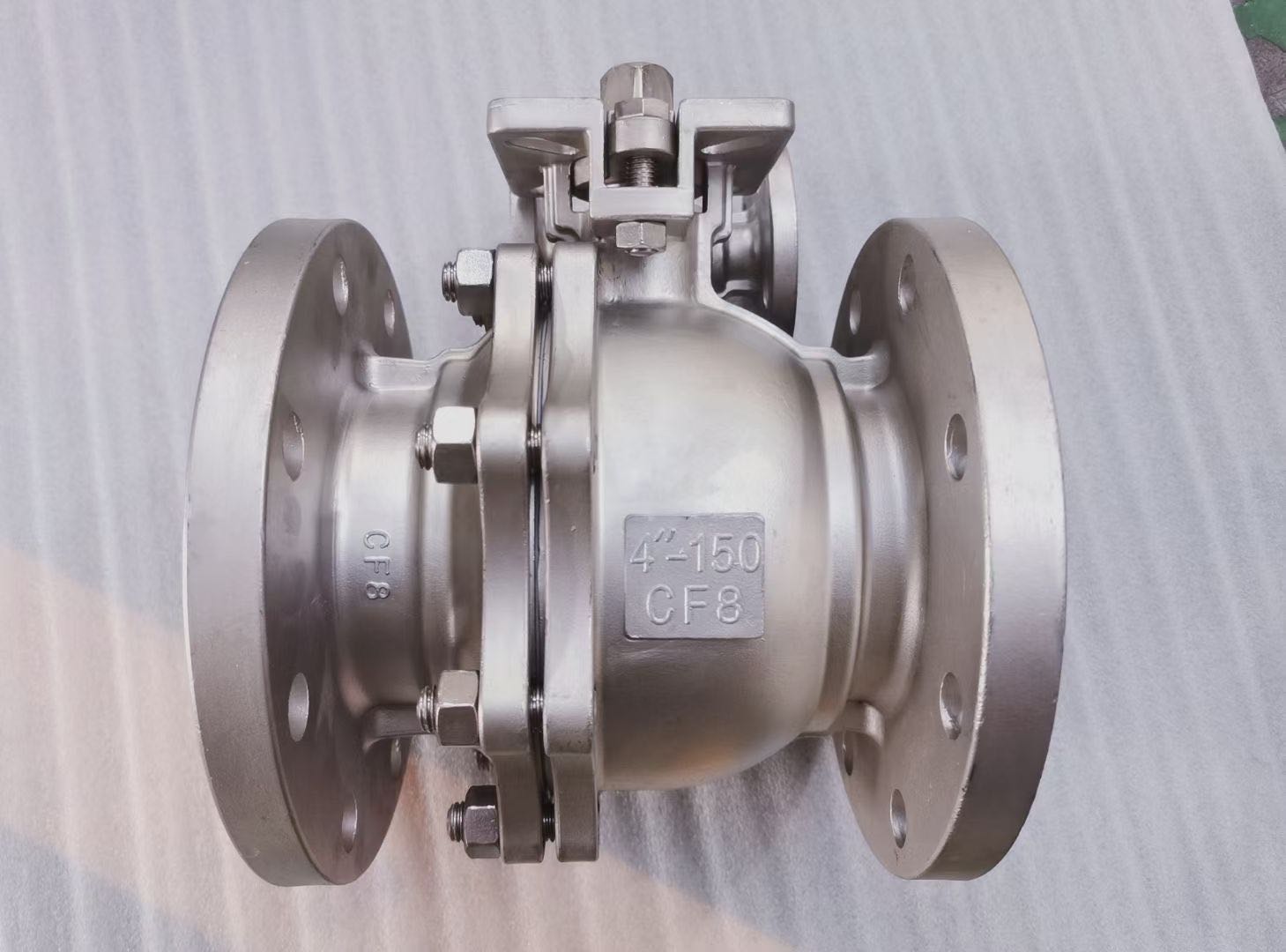

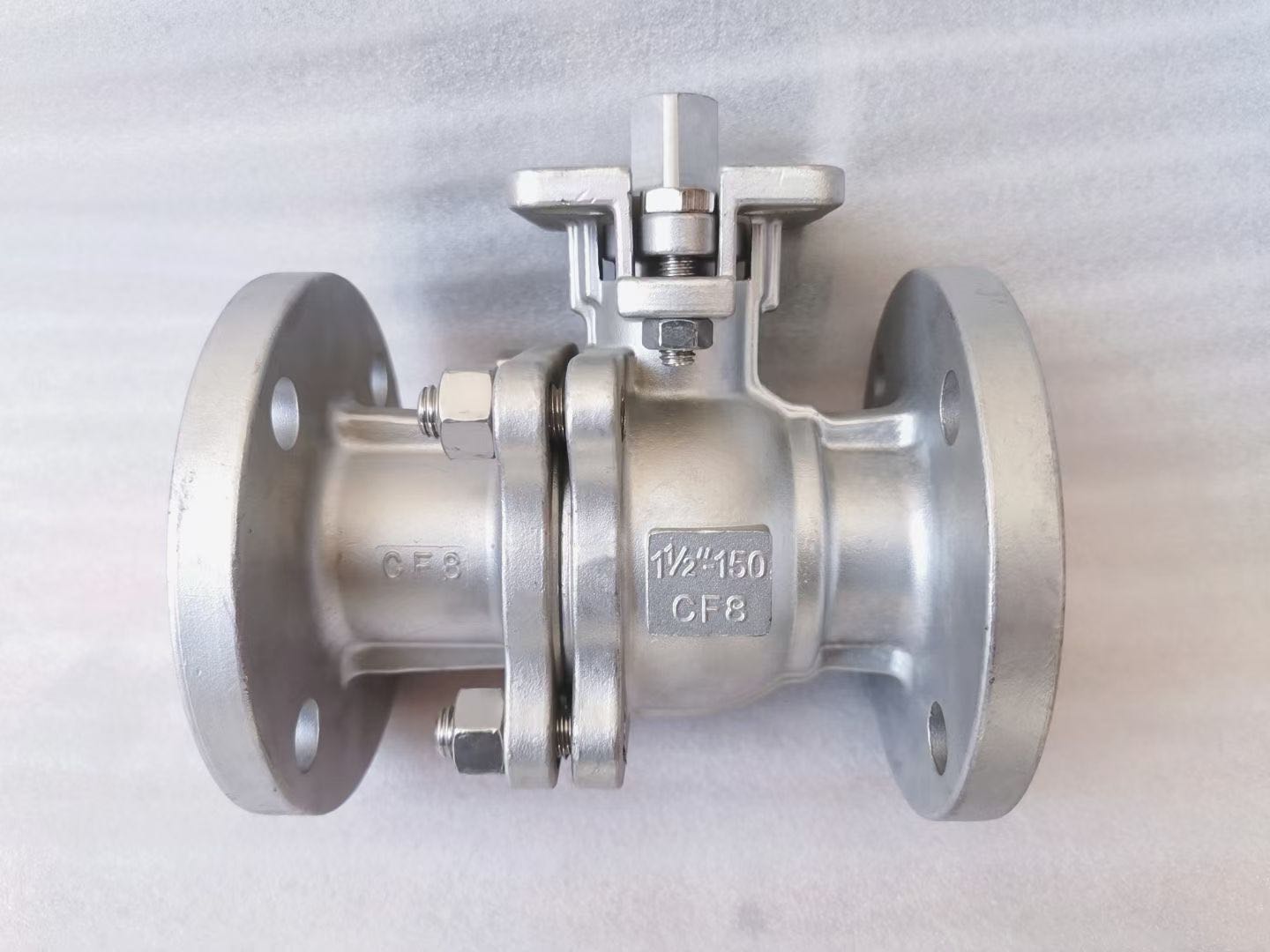

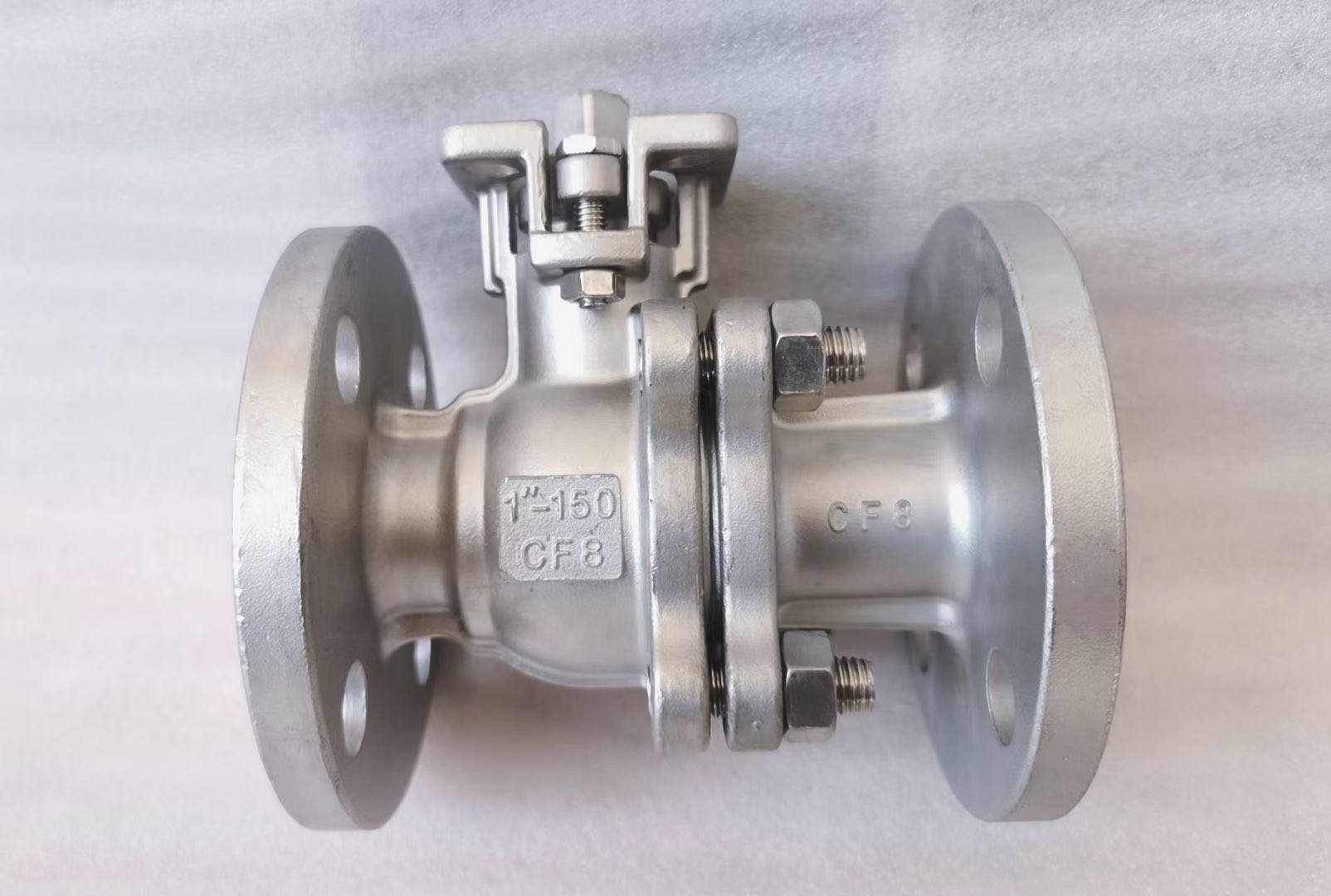

stainless steel flange floating ball valve with ISO5211 direct mounting pad2pc flange floating CF8M ball valvestainless steel flange floating ball valve with ISO5211 high mounting padstainless steel flange floating ball valve with ISO5211 mounting padstainless steel flange floating CF8M ball valve
