Home News Three Eccentric Center Metal Seat CF8M Flange Butterfly Valve with Worm Operated
Publish Time: 2022-07-11
Views: 2
Author: Site Editor
Origin:
Website:
Inquire

100 pcs DN200 CF8M flange butterfly valve delivery to Europe. Thanks for customer choose us, and looking forward to our next cooperation.

Three eccentric center butterfly valve, also called triple offset butterfly valve, generally is metal seat, bi-directional & tight sealing. Traditional metal seat butterfly valve don’t have high performance, and leakage rate is high, after trying many times, three eccentric center butterfly valve was born. It has high performance, overlay high temperature and corrosion resistant alloy steel on valve seat, fix multi-layer soft sealing on valve disc, which makes it better in high temperature, high pressure, and corrosion resistance. And three eccentric center butterfly valve has longer service life and higher leakage level compared to traditional meta meat butterfly valve.

Customers choose this type butterfly valve, is a wise choice, hope they could have good experience with our products.

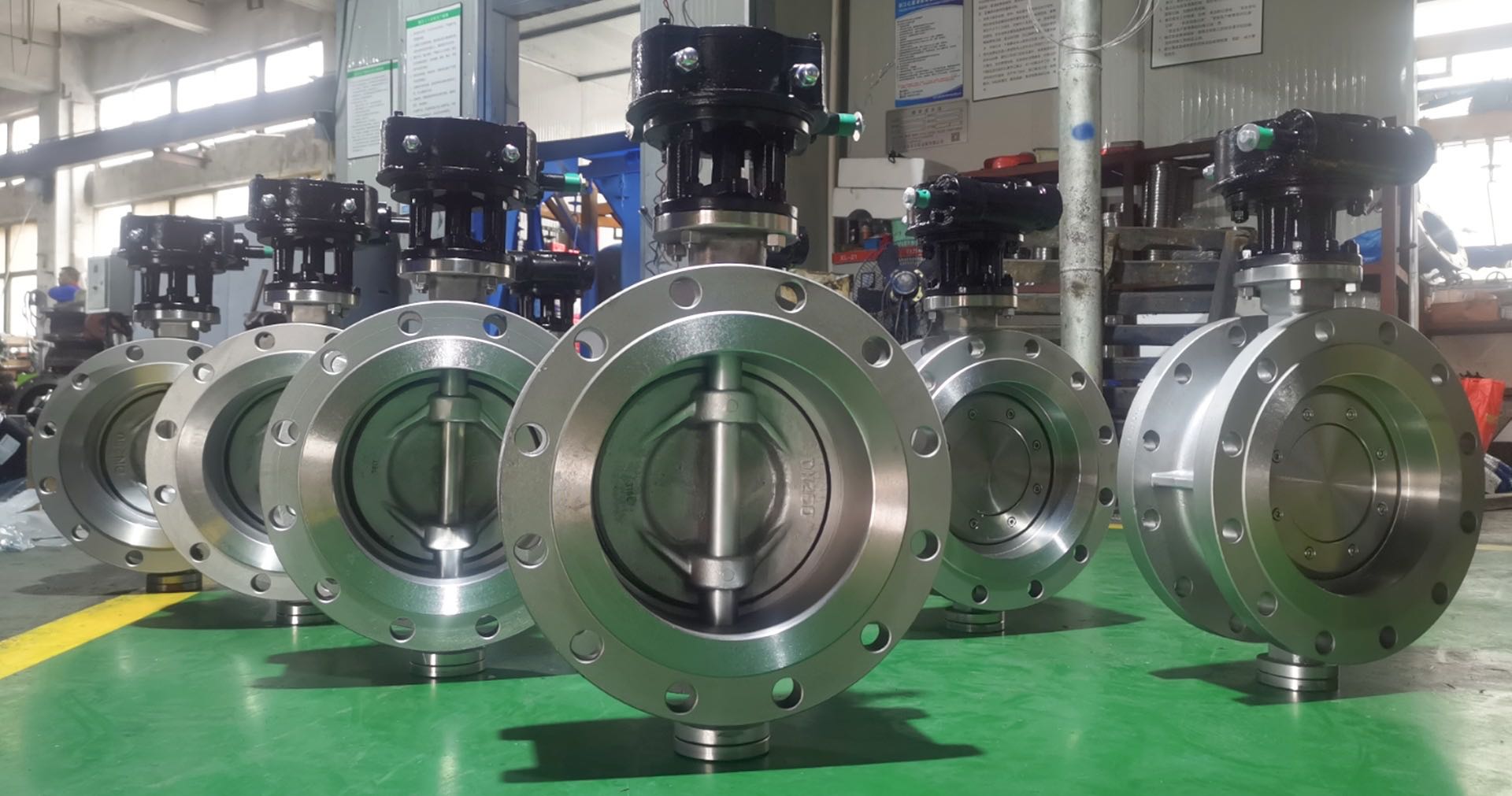

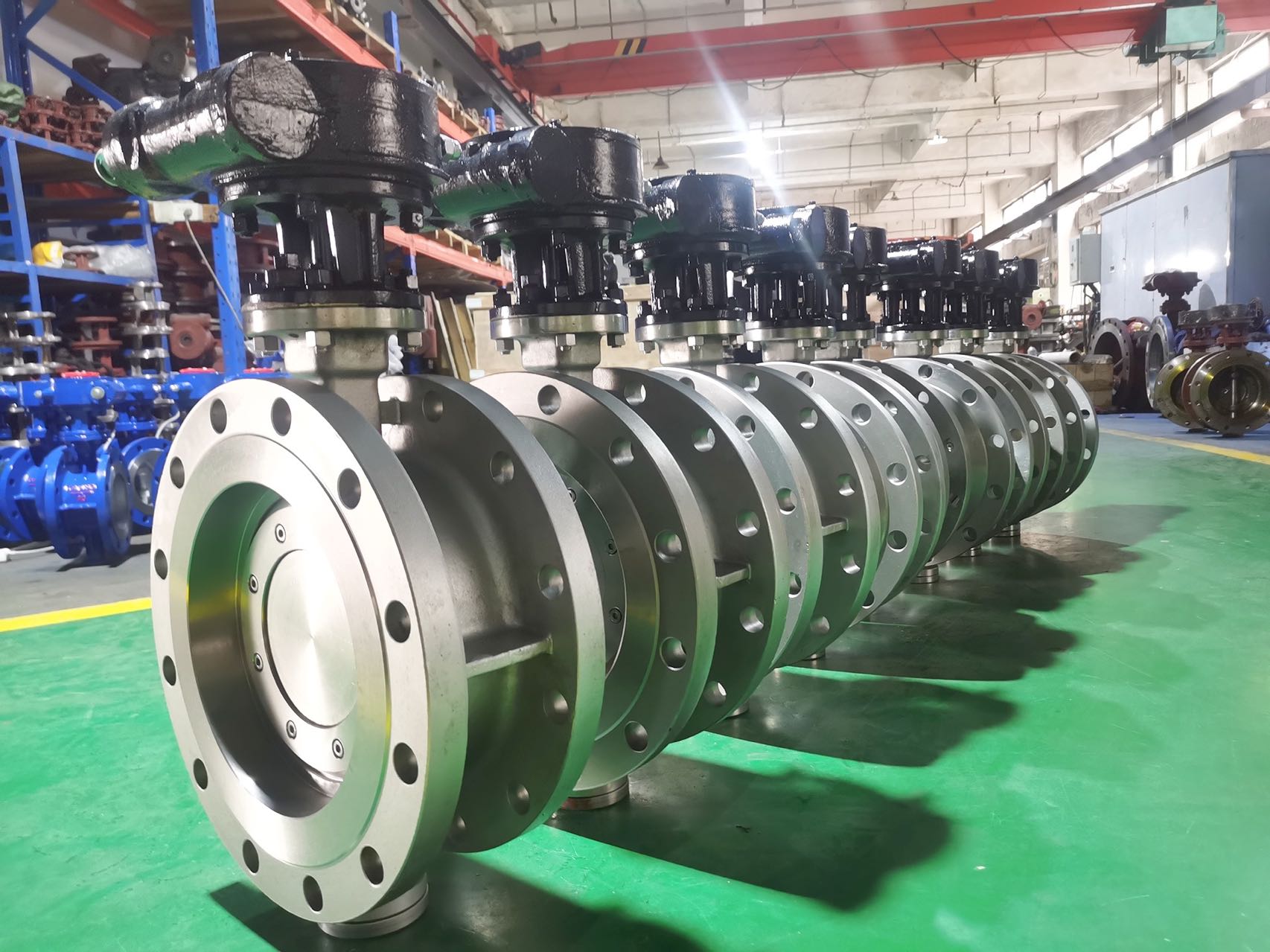

flange SS worm gear butterfly valvetriple offset stainless steel flange buttefly valve
