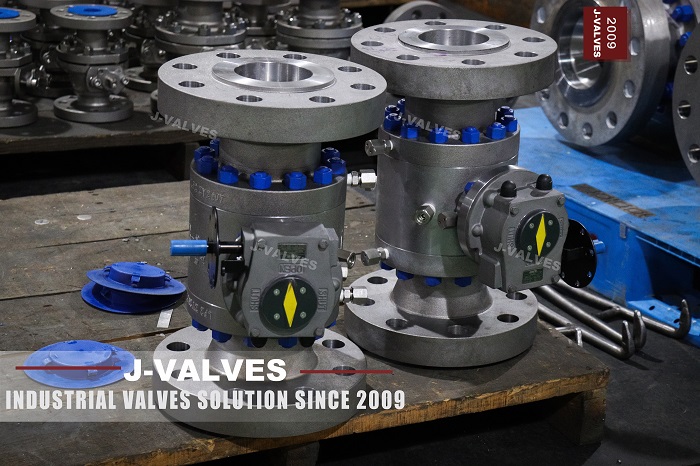

In demanding industrial environments, safety and reliability are not optional. A 12 inch API 6D trunnion mounted ball valve fire safe is designed for pipelines where shutoff performance, pressure resistance, and emergency protection are essential. It is widely used in oil, gas, petrochemical, and energy applications because it combines strong sealing performance with fire-safe protection.
Compared with many standard valves, a trunnion mounted ball valve offers better control under high pressure and large diameter conditions. When combined with a fire-safe design, it becomes an important safeguard for systems that must remain dependable even during extreme events.
I.What Makes a Trunnion Mounted Ball Valve Different?
A trunnion mounted ball valve uses a ball supported by top and bottom trunnions. This design reduces torque during operation and helps the valve perform more smoothly, especially in larger sizes such as 12 inches and above.
For operators, the main benefits include:
Lower operating torque
Better stability under high pressure
Strong sealing performance
Longer service life
Easier automation with actuators
This is why trunnion ball valves are often chosen for critical pipeline isolation, where dependable shutoff is required and manual operation may not always be practical.
II.Why Fire Safe Design Matters
A fire safe ball valve is engineered to maintain a certain level of sealing integrity even after exposure to fire. In industrial plants, fire risk can never be ignored. If a fire damages the soft sealing elements, the valve should still provide a backup metal-to-metal sealing path to help reduce leakage.
This feature is especially important in:
Oil and gas transmission systems
Refining and petrochemical plants
LNG and fuel handling facilities
Power generation projects
Offshore and onshore pipeline networks
A fire safe design helps improve system resilience and supports safer emergency response.
III.Key Advantages of a 12 Inch API 6D Fire Safe Trunnion Ball Valve
1. Excellent Shutoff Performance
The trunnion design supports the ball on both ends, which helps maintain stable sealing contact. This is especially valuable in large diameter pipelines where pressure differences can be significant.
2. Lower Operating Torque
Because the ball is mechanically supported, less force is needed to open or close the valve. This can reduce actuator size, lower energy use, and make operation more efficient.
3. Fire Safety Protection
The fire safe structure helps the valve keep functioning after high-temperature exposure. Even if soft seats are damaged, the valve can still offer a secondary sealing function.
4. Suitable for High Pressure and Large Diameter Service
A 12 inch valve is commonly used in main line applications. The trunnion mounted structure is ideal for handling the mechanical load and pressure demands of these systems.
5. Better Automation Compatibility
Many large pipeline systems use electric, pneumatic, or hydraulic actuators. A low-torque trunnion ball valve is easier to automate and integrate into control systems.
6. Reduced Maintenance Risk
A well-designed valve can reduce leakage concerns, minimize unplanned shutdowns, and improve long-term operating stability.
IV.Typical Applications
A 12 inch API 6D trunnion mounted ball valve fire safe is commonly used in:
Crude oil pipelines
Natural gas transmission lines
Refinery process units
Petrochemical plants
Compressor stations
LNG terminals
Tank farm piping systems
Industrial isolation services
For these applications, the valve must do more than just open and close. It must deliver dependable sealing, safe operation, and strong performance in harsh conditions.
V.Installation Guide: Best Practices for Better Performance
Correct installation is essential for long-term valve performance. Even the best valve can underperform if installed incorrectly.
1. Check the Valve Before Installation
Inspect the valve body, seat, stem, flange ends, and internal cavity. Make sure there is no shipping damage, contamination, or foreign material inside the valve.
2. Confirm Pipeline Alignment
The pipeline should be properly aligned before installation. Misalignment can create unnecessary stress on the valve body and flanges.
3. Clean the Piping System
Flush the pipeline before installation to remove welding slag, dust, and debris. Small particles can damage the sealing surfaces during startup.
4. Observe Flow Direction Requirements
Some valve designs may require attention to pressure direction or seat orientation. Always follow the manufacturer’s installation instructions.
5. Tighten Bolts Evenly
Use the correct bolt sequence and torque values to avoid uneven flange loading. This helps prevent leakage and body stress.
6. Test the Valve After Installation
After installation, perform pressure testing and functional checks. Confirm smooth operation, full opening and closing, and acceptable sealing performance.
7. Use the Right Actuator Setup
If the valve is automated, confirm that the actuator torque, travel stops, and accessories are properly adjusted.
VI.Maintenance Tips to Extend Service Life
A trunnion mounted ball valve usually offers long service life, but regular inspection still matters.
Check stem sealing areas for wear
Monitor actuator performance
Inspect flange connections periodically
Verify smooth operation during shutdown cycles
Replace damaged seals according to maintenance schedule
Preventive maintenance is always more cost-effective than emergency repair.
VII.Application Case: Pipeline Isolation in a Refinery
In a refinery isolation line, a 12 inch fire safe trunnion mounted ball valve may be used to separate critical process sections. During routine operation, the valve provides reliable shutoff with low operating torque. In an emergency fire scenario, the fire safe design adds an important backup sealing layer, helping reduce the risk of uncontrolled leakage.
This makes the valve a practical choice for facilities that prioritize process safety, shutdown reliability, and compliance with industrial standards.
VII.Why This Valve Is a Smart Investment
When buyers compare industrial valves, they often focus on initial cost. But for critical service, the real value comes from long-term reliability, safety, and reduced downtime. A 12 inch API 6D trunnion mounted ball valve fire safe offers all three.
It is a strong solution for projects that need:
Secure isolation
Stable performance
Fire risk protection
Large diameter capability
Easy integration with automation
For operators, engineers, and project managers, this valve type delivers both safety and operational confidence.
IX.FAQ
Is an API 6D trunnion mounted ball valve suitable for high pressure service?
Yes. The trunnion structure is widely used in high pressure and large diameter pipelines because it supports the ball and reduces operating torque.
What does fire safe mean in a ball valve?
Fire safe means the valve is designed to maintain a secondary sealing function after exposure to fire, improving emergency shutoff reliability.
Can a 12 inch trunnion ball valve be automated?
Yes. Many 12 inch trunnion mounted ball valves are designed for electric, pneumatic, or hydraulic actuation.
Where is this valve commonly used?
It is commonly used in oil, gas, petrochemical, LNG, refinery, and industrial pipeline systems.
X.Conclusion
A 12 inch API 6D trunnion mounted ball valve fire safe is more than just a large valve. It is a safety-focused pipeline solution designed for reliable shutoff, reduced operating torque, and enhanced protection in high-risk environments. With the right installation and maintenance, it can deliver long-term performance in critical applications.
