Introduction
In modern high-pressure pipeline systems, especially in oil and gas transmission, petrochemical processing, and offshore engineering, valve integrity and long-term reliability are critical. Among advanced valve configurations, the extended weld end trunnion mounted ball valve stands out as a highly reliable solution designed for permanent pipeline integration and high-safety isolation service.
This type of valve combines trunnion-mounted ball structure, extended welded ends, and high-strength forged or cast steel body design, making it ideal for buried pipelines, high-pressure systems, and applications where leakage prevention is essential.
Manufacturers such as J-VALVES provide engineered solutions for extended weld end trunnion ball valves that meet international standards such as API 6D and ASME requirements.
What Is an Extended Weld End Trunnion Mounted Ball Valve?
An extended weld end trunnion mounted ball valve is a pipeline isolation valve featuring:
Trunnion-supported fixed ball structure
Extended welded end connections for direct pipeline welding
Full bore or reduced bore flow design
Anti-blowout stem and fire-safe sealing options
The extended weld ends allow the valve to be directly welded into the pipeline without flanges, reducing potential leakage points.
Key Structural Features
1. Trunnion Mounted Ball Support System
The trunnion design ensures:
Stable ball positioning under high pressure
Reduced operating torque
Improved sealing consistency
Lower wear on seat surfaces
This structure is especially suitable for large diameter and high-pressure pipelines.
2. Extended Weld End Design
The welded end extension provides several engineering benefits:
Eliminates flange gasket leakage risk
Reduces pipeline stress concentration at valve connection
Improves suitability for buried or underground pipelines
Enhances long-term structural integrity
This design is widely used in cross-country pipeline systems.
3. Full Welded Pipeline Integration
The valve body is designed for permanent welding into the pipeline system, ensuring:
No external leakage joints
Reduced maintenance requirements
Improved resistance to vibration and thermal cycling
How It Improves Pipeline Safety Performance
1. Zero External Leakage Design
Because the valve is welded directly into the pipeline:
No flange joints are required
Gasket failure risk is eliminated
Long-term sealing reliability is significantly improved
2. High Pressure Stability
Trunnion mounted structure ensures:
Stable performance under high pressure differentials
Reduced seat deformation
Reliable shutoff in emergency conditions
3. Reduced Maintenance in Critical Systems
Extended weld end valves are ideal for:
Underground pipelines
Offshore pipeline networks
Remote installations
Because they minimize the need for frequent maintenance access.
4. Enhanced Mechanical Strength
The integrated welded structure improves:
Structural rigidity
Resistance to pipeline vibration
Performance under thermal expansion stress
Engineering and Manufacturing Advantages of J-VALVES
J-VALVES produces extended weld end trunnion mounted ball valves with strict engineering control and advanced manufacturing processes:
1. Precision Welding and Machining Technology
Controlled weld end dimensional accuracy
Automated welding process for consistency
Post-weld heat treatment (PWHT) for stress relief
2. API 6D Compliance Design
All valves are engineered according to:
API 6D pipeline valve standard
ASME pressure vessel requirements
ISO quality management systems
3. Advanced Sealing System
Spring-loaded or pressure-energized seats
Metal-to-metal sealing for high temperature service
Low emission stem packing systems
4. Full Pressure and Leakage Testing
Each valve undergoes:
Shell pressure test
Seat leakage test
Stem sealing verification
NDT inspection (UT/RT/PT)
Typical Applications
Extended weld end trunnion mounted ball valves are widely used in:
Natural gas transmission pipelines
Oil transportation trunk lines
Underground buried pipeline systems
LNG infrastructure projects
Offshore oil and gas platforms
High-pressure refinery systems

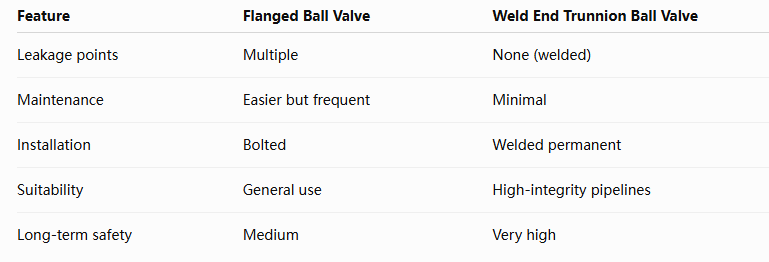

Advantages Compared to Flanged Ball Valves
Conclusion
The extended weld end trunnion mounted ball valve represents one of the most reliable solutions for high-integrity pipeline systems requiring zero-leakage performance and long-term operational stability. Its welded structure eliminates flange-related risks, while the trunnion-mounted design ensures stable operation under high pressure and demanding conditions.
With advanced engineering capabilities and strict quality control, J-VALVES delivers high-performance welded trunnion ball valves that meet global pipeline safety standards and support critical energy infrastructure worldwide.
