Introduction
In modern industrial pipeline systems, safety, reliability, and leakage prevention are critical engineering requirements. Whether in oil and gas transmission, LNG processing, petrochemical plants, or offshore platforms, even minimal leakage can lead to operational risks, environmental hazards, and costly downtime.
The Double Block and Bleed (DBB) ball valve is designed to provide a highly reliable isolation solution that ensures zero-leakage sealing performance and safe maintenance conditions. Through advanced sealing structure and precision engineering, DBB ball valves have become a key component in high-integrity pipeline systems.
Manufacturers such as J-VALVES focus on engineering DBB ball valves that meet strict international standards and deliver stable performance under extreme operating conditions.

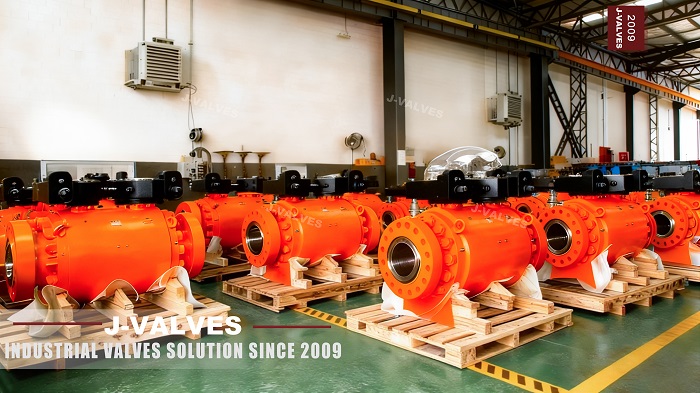

What Is a DBB Ball Valve?
A DBB ball valve integrates two independent sealing systems and a bleed/vent system within a single valve body.
Core Functions:
Double isolation (upstream and downstream sealing)
Cavity pressure release through bleed port
Verification of sealing integrity
Reduced installation space compared to multiple valve setups
This integrated structure improves both safety and system efficiency.
How DBB Ball Valves Achieve Zero Leakage Isolation
1. Dual Sealing Barrier Structure
The DBB ball valve contains two independent sealing seats:
Upstream seat provides first isolation barrier
Downstream seat provides second isolation barrier
This dual sealing system ensures that even if one seat experiences wear, the second barrier maintains isolation integrity.
2. Cavity Bleed System for Leak Verification
A key feature of DBB design is the central bleed port, which allows:
Release of trapped cavity pressure
Verification of upstream and downstream seal integrity
Early detection of potential leakage
When the bleed valve shows no pressure accumulation, true zero-leakage isolation is confirmed.
3. Precision Ball and Seat Machining
Zero leakage performance depends heavily on manufacturing accuracy. High-quality DBB valves require:
Mirror-finished ball surface
Precision-machined seat rings
Tight tolerance control during assembly
J-VALVES applies CNC precision machining and strict dimensional inspection to ensure consistent sealing performance.
4. Spring-Loaded or Pressure-Energized Seats
Advanced DBB ball valves often use:
Spring-loaded seat designs
Pressure-energized sealing systems
These mechanisms automatically compensate for wear and pressure changes, maintaining long-term sealing reliability.
5. Anti-Blowout Stem Design
To ensure safety under high-pressure conditions, DBB ball valves incorporate:
Anti-blowout stem structure
Secondary sealing systems
Fire-safe sealing options
This prevents external leakage and enhances operational safety.
API Standards and Testing Requirements
DBB ball valves are typically designed and tested according to API 6D standards, ensuring pipeline-grade performance.
Key Tests Include:
Shell strength test
Seat leakage test (zero leakage requirement)
Cavity pressure test (DBB function verification)
Stem sealing test
Hydrostatic and pneumatic pressure testing
These tests confirm that the valve can maintain isolation integrity under real operating conditions.
Advantages of DBB Ball Valves in Pipeline Systems
1. True Zero Leakage Isolation
The dual sealing system provides redundancy, ensuring maximum isolation safety.
2. Reduced Installation Complexity
A single DBB valve replaces multiple valve assemblies, reducing:
Pipeline space requirements
Installation cost
Maintenance complexity
3. Enhanced Operational Safety
Bleed function allows safe maintenance and depressurization before system intervention.
4. Long Service Life
Optimized sealing design reduces wear and extends operational lifespan.
5. Suitable for Critical Applications
Including:
High-pressure gas pipelines
LNG transfer systems
Refinery process lines
Offshore production platforms
Engineering Strength of J-VALVES DBB Ball Valves
J-VALVES integrates advanced engineering and manufacturing practices to ensure high-performance DBB ball valves:
Key Advantages:
Full material traceability system
Precision CNC machining of sealing components
Strict API 6D quality control process
High-performance seat design optimization
Comprehensive factory testing before delivery
These capabilities ensure consistent zero-leakage performance in demanding industrial environments.
Typical Industrial Applications
DBB ball valves are widely used in:
Natural gas transmission pipelines
Oil refinery isolation systems
LNG loading and unloading terminals
Chemical injection systems
Offshore platform safety systems
Metering and sampling systems
Conclusion
DBB ball valves play a critical role in ensuring zero leakage isolation in modern pipeline systems. Through dual sealing barriers, cavity bleed verification, and precision-engineered components, they provide a highly reliable solution for high-risk industrial applications.
With advanced manufacturing technology and strict quality control, J-VALVES delivers DBB ball valves that meet global pipeline safety standards and ensure long-term operational reliability.
