The only difference that matters: how you open it

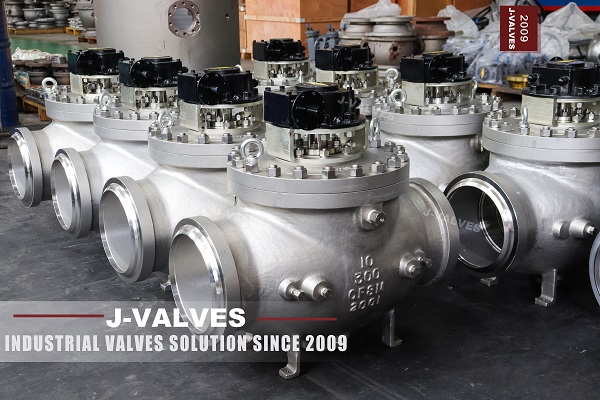

Top entry and side entry ball valves perform the same isolation duty, and the choice comes down to one question: how do you reach the sealing parts. A top entry valve carries a bonnet bolted to the top of the body, so the ball, seats and stem seals lift out vertically while the body stays welded or bolted in the pipeline. A side entry valve splits on the pipeline axis, so the body halves and the end connections must be separated to reach the same parts. Weight, face to face dimensions and pressure class are broadly comparable. The difference only becomes visible when maintenance is due, and that is when the cost of the design is either recovered or paid. In most specifications the maintenance philosophy, not the valve catalogue, drives the choice.

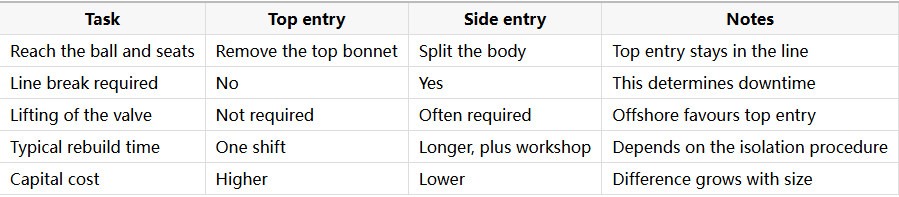

Line-breaking and downtime compared
Side entry maintenance requires the line to be broken. The valve is isolated, drained and purged, then one end is disconnected so the body can be split and the internals withdrawn; in many cases the valve is lifted out and taken to a workshop. Top entry maintenance keeps the valve in place. After isolation and draining, the bonnet is unbolted and the trim is lifted out through the top, with the body still welded into the line. The practical effect is measured in hours. A top entry rebuild can often be completed in a single shift once the line is isolated, while a side entry rebuild adds disconnection, lifting, workshop time and reassembly before the line can be returned to service.
When top entry pays for itself
Top entry costs more to buy and normally adds lead time, so it is justified where access is difficult or downtime is expensive. The classic cases are offshore platforms and subsea-adjacent installations, where lifting equipment and space are limited and a valve removed from the line is a major operation. It is also used on large diameter and high pressure lines, on manifolds, and in plants where the isolation window is short. The rule of thumb is that if one avoided line break covers the price difference, top entry is the better purchase. Over a service life with several seal replacements, the saving in labour and lost production usually exceeds the extra capital cost. J-VALVES supplies both designs from 1/2 to 56 inch (DN15 to DN1400).
In-line seal replacement procedure
An in-line rebuild follows a fixed sequence. The line is isolated and the cavity is bled to confirm that both seats hold. The actuator or gearbox is removed and the bonnet bolts are released in a controlled pattern. The stem, ball and seats are lifted out as an assembly and inspected for scoring, coating wear and seat damage. Seals, seat rings and anti-extrusion rings are replaced, and the ball is examined for the surface finish that controls leakage. The assembly is then refitted with new gaskets, torqued to the specified values and re-tested in place where the procedure allows. Because the body is never split, there is no need to re-align the ends or remake the pipeline joints.
Cost, lead time and application fit
Top entry valves carry more machining and a larger bonnet, so they generally cost more and take longer to produce than side entry valves of the same size and class, and the difference grows with diameter. Side entry remains the standard choice for general plant and pipeline service, where the valve can be lifted out and replaced or rebuilt in a workshop. Top entry is the standard choice offshore, on buried or high integrity lines, and in any location where a line break is unacceptable. The decision should be written into the maintenance philosophy at the design stage, because once a line is buried or a platform is installed, changing the concept is no longer practical.
Frequently Asked Questions
Which design suits offshore and FPSO service? Top entry is normally the standard choice offshore. Platform space and lifting capacity are limited, and removing a large valve from a live line is a major operation, so the ability to rebuild the trim through the bonnet without breaking the line is decisive. Side entry valves remain common on smaller, lower pressure duties where access is straightforward.
Can seals be replaced without removing the valve? With a top entry valve, yes. Once the line is isolated and the cavity bled, the bonnet is unbolted and the stem, ball and seats lift out while the body stays welded or bolted into the pipeline. A side entry valve must be split, which normally means disconnecting an end and lifting the valve to a workshop.
How much does top entry cost extra? Top entry generally costs more because the bonnet, the body machining and the assembly are more complex, and the gap widens with size and pressure class. Exact figures depend on diameter, class and material. The comparison should be made over service life, since one avoided line break often exceeds the price difference.
