Why the body is welded shut
Welding the body closed removes the body joint, and with it the largest single leak path in a ball valve. In gas transmission and buried service the body joint is also the part most exposed to soil load, coating damage and external corrosion, so eliminating it removes both a sealing risk and an inspection problem. A fully welded valve typically has one circumferential weld completed after assembly, leaving the stem seal as the only dynamic sealing point. That reduction in sealing paths is the reason the design dominates long distance gas transmission lines and buried installations where access for maintenance is difficult. J-VALVES builds welded body ball valves from 1/2 to 56 inch (DN15 to DN1400) in ASME Class 150 to 2500, with shell tests applied at 1.5 times the rated pressure.
Construction and sealing paths

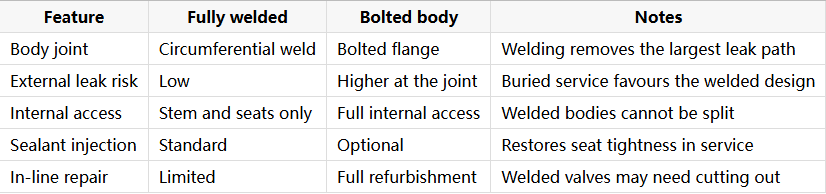

A fully welded valve has four sealing paths to control. The body weld joins the two shell halves. The seats seal against the ball. The stem seals against the bonnet, normally with a set of polymer rings and an anti-blowout stem shoulder. The end connections seal to the pipeline, either by welding or by flanged ends. Because the body joint is permanent, the design usually adds sealant injection ports that allow seats and stem seals to be re-energised in service, and a vent or drain port for cavity relief. Antistatic devices keep the ball, stem and body at the same potential. Materials follow the same rules as bolted valves, with ASTM B148 for aluminium bronze and carbon or stainless steel for gas service.
Standards, testing and marking
Fully welded valves for gas transmission are normally designed to API 6D and ASME B16.34, with fire-safe qualification to API 607 or ISO 10497 where required. Testing follows API 598 and ISO 5208, with the shell test at 1.5 times the rated pressure and the seat test at 1.1 times. NACE MR0175 applies where the gas contains hydrogen sulphide, and EN 10204 3.1 certificates are common on transmission projects. The nameplate shows size, pressure class, body material, heat number and the applicable standard, and it must remain readable after coating. For buried valves the marking is usually duplicated on a plate fixed to the extended stem so the data can be read without excavation.
Maintenance without a body joint
Because the body cannot be opened, the maintenance strategy is built around the parts that remain accessible. Stem seals are replaced from the top after unbolting the bonnet, without disturbing the body weld. Seats can be re-energised through sealant injection ports, which is normally enough to restore tightness when leakage is detected. The valve must usually be closed before injection so that the sealant reaches the sealing surfaces. Where the internals cannot be recovered in place, the valve is isolated and the whole unit is cut out of the line. This is the trade-off of the welded design: fewer leak paths and lower routine maintenance, but no access to the ball and seats without cutting the pipeline.
Burial, welding in and installation practice

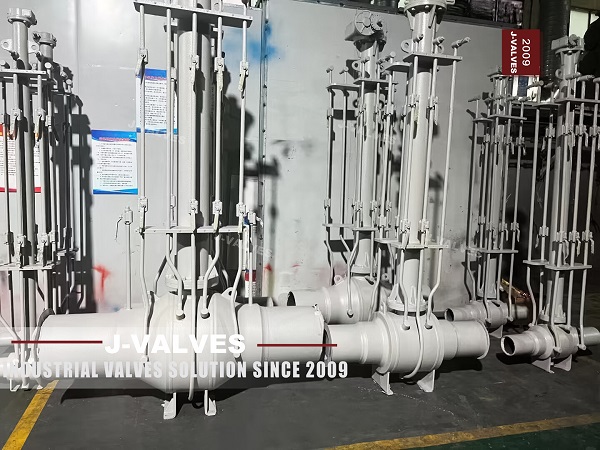

Buried service adds requirements that do not apply to above ground valves. The exterior is coated to the same specification as the pipeline, and the coating is usually extended over the body weld and the field joint. Extended stems or extended bonnets raise the operator and the gearbox above grade so the valve can be operated and serviced without excavation. Fully welded valves are commonly welded directly into the pipeline, so the welding procedure and the end preparation must match the line pipe, and the valve is usually installed with the stem vertical or horizontal as specified. Cathodic protection is normally applied to the pipeline, and the valve is bonded into the system. After welding, the joint is inspected and the coating is repaired before backfill.
Frequently Asked Questions
Can a fully welded ball valve be repaired? Partially. Stem seals can be replaced from the top and seats can be re-energised through sealant injection ports while the valve stays in the line. If the ball or seat rings are damaged beyond that, the body cannot be opened, so the valve is isolated and cut out. Repair strategy should therefore be agreed at the specification stage.
Can it be buried directly? Yes, fully welded valves are routinely buried, but not without preparation. The exterior coating must match the pipeline specification and be continuous over the body weld, the stem must be extended so the operator stays above grade, and the valve is normally welded into the line and bonded to the cathodic protection system. Coating repairs are completed before backfill.
How is the stem sealed? The stem is sealed with a set of polymer rings in the bonnet, supported by an anti-blowout stem shoulder that retains the stem if the rings fail. Fire-safe designs add a graphite or metal secondary seal that continues to limit leakage after the polymer is destroyed. Sealant injection ports allow the stem seal to be re-energised in service without opening the body.
