Floating ball valve is the core on-off valve for industrial fluid control systems. Improper selection will easily cause engineering failures such as leakage, stuck operation and corroded valve body, which are directly affected by medium corrosion, pipeline pressure, bore size and operation mode. With 16 years of supporting experience for floating ball valve projects, J-VALVES sorts out complete selection solutions for oil & gas, chemical and water treatment clients combined with real mass production photos of carbon steel and stainless steel floating ball valves in our workshop. We also introduce our unique customized service advantages and real project cases.
1. Floating Ball Valve Body Material Selection by Medium & Working Condition (Two Main Body Types from Workshop Photos)
WCB Carbon Steel Floating Ball Valve (Heavy-duty model in Picture 1)
Applicable medium: natural gas, crude oil, diesel, high-temperature steam, non-corrosive industrial oil;
Working pressure: Class300 / Class600 / Class900 high-pressure pipeline;
Advantages: high body strength, resistant to high pressure impact, moderate cost. Matched with metal hard seal to withstand temperature above 200℃, the mainstream selection for long-distance gas transmission and oilfield pipelines.
Applicable projects: city gas pipeline, coal chemical plant, crude oil gathering pipeline.

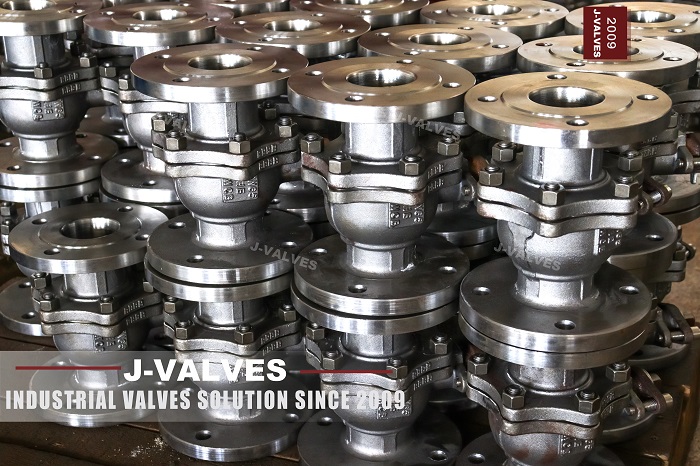

304 / 316L Stainless Steel Floating Ball Valve (Mass finished model in Picture 2)
304 stainless steel: clean water, normal temperature weak corrosive water treatment, food fluid;
316L stainless steel: hydrochloric acid, lye, chemical solvent, strong corrosive fine chemical medium;
Advantages: full body acid & alkali resistance without extra anti-rust coating, PTFE soft seal achieves zero leakage under normal temperature, sufficient spot stock for small & medium bore with fast delivery lead time.
Applicable projects: fine chemical industrial park, wastewater treatment plant, beverage & food production line.
2. Matching Guide for Floating Ball Valve Pressure Class & Bore Size
J-VALVES floating ball valves cover ASME pressure classes Class150, Class300, Class600, Class900 with bore size DN25-DN400:
Class150: low-pressure water treatment, normal temperature chemical pipeline, mass spot stock of small & medium bore stainless steel ball valves;
Class300 / Class600: general natural gas & crude oil transmission, main specification of WCB carbon steel flanged floating ball valve;
Class900: high-pressure coal chemical and wellhead oil extraction pipeline, heavy-duty thickened body floating ball valve with gear actuator, customizable DBB double block and bleed structure.
3. How to Choose Actuator for Floating Ball Valves (Gear actuator real shot in workshop Picture 1)
Hand lever manual: small bore floating ball valve below DN50 under low pressure, easy operation with lowest cost;
Worm gear actuator (red gear operator in Picture 1): large bore DN100+ high-pressure floating ball valve, greatly reduce operation torque for easy single-person switch, the top choice for outdoor buried underground pipeline;
Pneumatic / electric actuator: automatic production line, unattended long-distance transmission pipeline, matched with explosion-proof actuator for remote automatic cut-off control.
4. Four Exclusive Supporting Advantages of J-VALVES Floating Ball Valve Selection Service
Free Technical Working Condition Selection: send us medium, temperature, pressure and bore parameters, our engineers provide floating ball valve drawing & quotation within 24 hours to avoid engineering loss caused by wrong selection;
Flexible Dual Sealing Switch: same valve body can be fitted with soft seal or metal hard seal seat, clients do not need to replace whole valve if medium working condition changes later, cutting reconstruction cost;
Complete Package Supporting Capacity: floating ball valves can be delivered together with matching flanges, gaskets and actuators for one-stop purchasing of overseas projects, eliminating troubles of docking multiple suppliers;
Extended Warranty After-Sales Service: 18-month warranty for all shipped floating ball valves, exclusive foreign trade technical contact assigned for overseas projects, remote guidance for installation, pressure test and fault troubleshooting.
5. Successful Real Selection Cases
Case 1: High-Pressure Syngas Pipeline for Coal Chemical Industry (WCB Class900 Gear Floating Ball Valve)
A high-pressure syngas pipeline project of coal chemical plant in Inner Mongolia, medium is 280℃ high-temperature syngas with Class900 pressure and DN250 large bore. J-VALVES WCB carbon steel metal hard-seal gear operated floating ball valve was selected, stably operated for 3 years without maintenance after bulk delivery with no leakage under high temperature and pressure.
Case 2: Strong Corrosion Solvent Pipeline for Pharmaceutical Factory (316L Stainless Steel Soft Seal Floating Ball Valve)
A pharmaceutical production line in Jiangsu transports weak acid organic solvent with normal temperature low pressure Class150, all pipelines adopt 316L stainless steel flanged floating ball valves with zero-leakage soft seal. Spot stock from workshop enables fast delivery, no seal aging or leakage after 4 years of production operation.
6. Common Selection Pitfall Reminders
Do not use ordinary 304 stainless steel floating ball valve for high temperature, high pressure and corrosive medium, prioritize WCB metal hard seal or thickened 316L body;
For large bore pipeline DN100+ under high pressure, gear actuator is mandatory instead of simple hand lever;
Confirm API 6D & CE certificates for export projects to avoid unqualified local engineering acceptance.
