What fire-safe certification actually proves
Fire-safe certification proves one narrow but critical thing: after a controlled burn the valve still limits leakage to an agreed rate and can still be operated. It does not prove that the valve survives undamaged, nor that it keeps its original seat tightness. The test simulates a surrounding fire by heating the valve in a defined way, then cooling it and measuring leakage past the seat and through the body seals. A valve that passes is described as fire-safe tested to API 607 or ISO 10497, and the certificate is only valid for the exact design, size range and materials that were tested. J-VALVES qualifies ball valve designs against both API 607 and ISO 10497 in its own test programme.

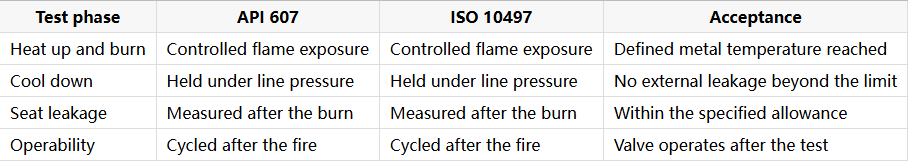

The test sequence step by step
The sequence is deliberately fixed so that results can be compared between suppliers. The valve is mounted, brought to a defined pressure, then exposed to a controlled flame. Metal temperatures are monitored so the test proves the valve rather than the burner. After the burn period the valve is allowed to cool while still under pressure, and leakage is collected and measured. Finally the valve is cycled by its lever or actuator to confirm it can still be operated. API 607 and ISO 10497 share the same underlying logic: pressurise, burn, cool, measure leakage, then prove operation. The differences lie in the detailed acceptance allowances and in how the heat is applied and instrumented.

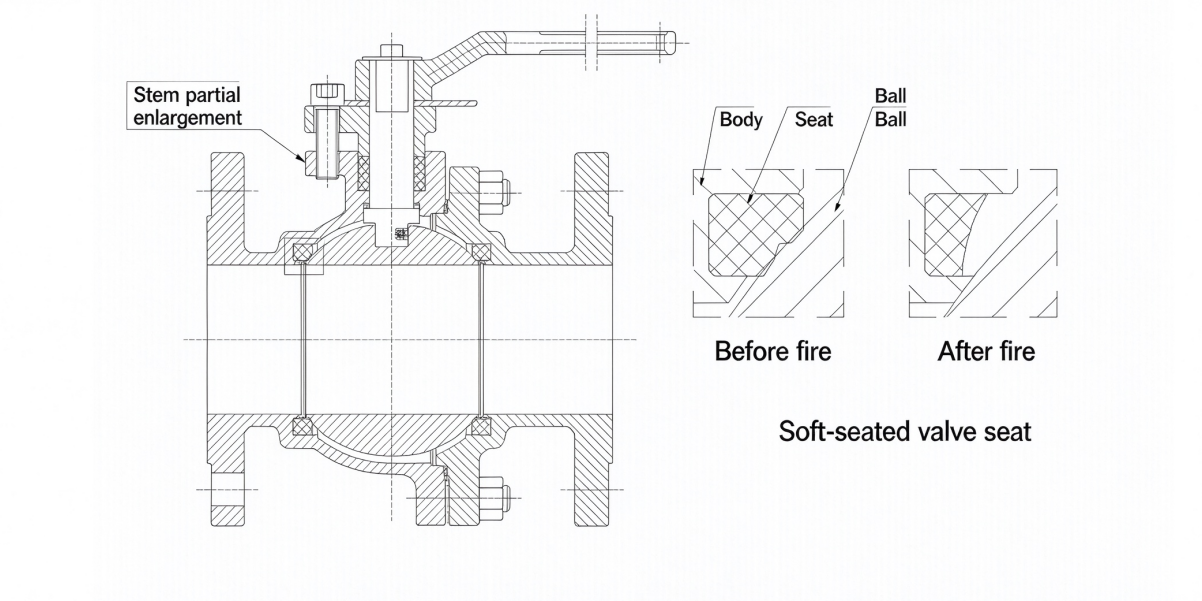

Design features that pass the test
Fire-safe performance comes from design rather than from luck. Three features do most of the work: a secondary metal seat that contacts the ball once the soft insert is destroyed, graphite or other high-temperature sealing in the body, stem and seat areas, and anti-static and stem-retention features that keep the assembly together. A ball valve with only a soft seat and elastomer seals will fail once those components are consumed. Soft-seated valves can still be fire-safe, but they must include that secondary metal-to-metal sealing path. Fire-safe designs are usually combined with API 607 or ISO 10497 qualification and, where fugitive emissions matter, with testing to ISO 15848-1.
Leakage acceptance and post-fire operation
Acceptance is judged on two things: leakage during and after the burn, and whether the valve can still be cycled. External leakage must stay inside the allowance written into the standard, and seat leakage is measured against a specified rate. Post-fire operation matters as much as leakage, because a valve that seals but cannot be closed is of no use for emergency isolation. Test results are recorded and supplied as a certificate, and buyers should confirm that the certificate covers the size and pressure class actually ordered rather than a smaller representative size. Buyers should also confirm whether the test was witnessed, because an unwitnessed result is harder to defend to a plant operator or an end user. Third-party witness of the fire test can be arranged on request.
How to specify fire-safe in a datasheet
The datasheet line should read fire-safe tested to API 607 or to ISO 10497, with the test standard named explicitly and the certificate required at delivery. Do not write fire-safe on its own, because the term is not self-defining. Add the secondary metal seat requirement, the body seal material and anti-static construction. Note the temperature limit separately, since standard ball valve materials span a wide range and the full envelope from -196 C to 650 C covers cryogenic through high-temperature service. State whether fugitive emission testing to ISO 15848-1 is also required. J-VALVES applies fire-safe qualification across 1/2 to 56 inch and Class 150 to 2500, with shell testing at 1.5 times the rated pressure and seat testing at 1.1 times.
Frequently Asked Questions
How long does the burn period last? The burn period is fixed by the test standard rather than by the buyer, and it is long enough to drive the valve metal to a defined temperature. The exact duration depends on the standard and on the valve size. What matters for specification is not the minute count but that the valve is tested to a named standard and that the certificate covers the size and class ordered.
Is fire-safe certification the same as API 6FA? No. API 607 and ISO 10497 are ball valve fire test standards, while API 6FA is a separate fire test standard written for valves more generally. They test the same underlying behaviour, controlled burning followed by leakage measurement and operation checks, but they are different documents with different acceptance details. The buyer should name the one required by the project specification.
Do soft-seated valves need a secondary metal seat? Yes, if they are expected to pass a fire test. Once the soft insert is consumed by the fire, only a metal-to-metal sealing path can limit leakage, so a secondary metal seat is what makes a soft-seated ball valve fire-safe. Without it the valve has no sealing element left after the burn, and it will not meet the leakage acceptance criteria.
