Why the standard decides everything downstream

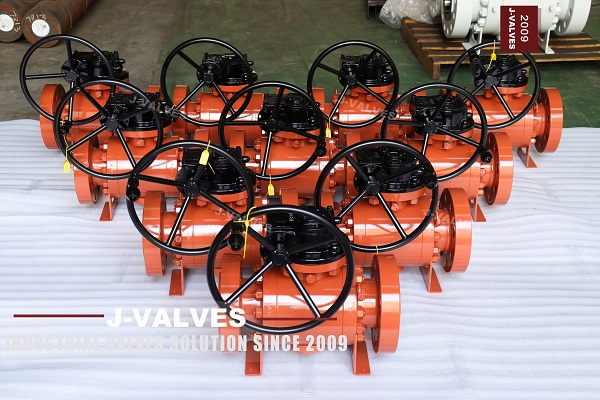

The standard chosen for a ball valve drives almost every later decision: wall thickness, test pressures, nameplate text, the documentation package, and whether a third-party inspector will release the unit. A valve built to API 608 is a general industrial product. The same size built to API 6D carries a different design margin, a mandatory double block and bleed philosophy, and a much heavier paperwork trail. Change the standard mid-project and the drawings, the pressure test regime and the release certificates all change with it. That is why the standard is normally fixed on the first page of the buyer specification, before material or operator questions are even raised. J-VALVES builds and certifies ball valves to API 6D, API 608 and ISO 17292, so the comparison below reflects the differences handled in daily production.

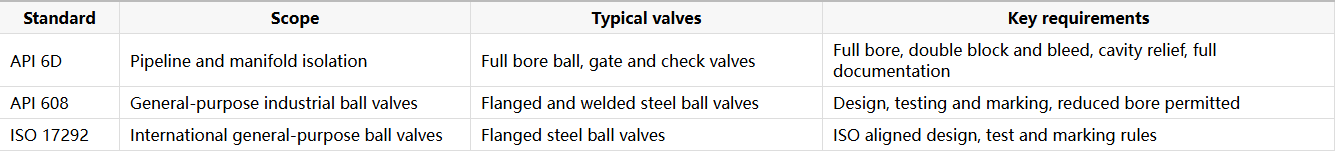

What each standard actually covers
API 6D is a pipeline and manifold standard. It covers ball, check and gate valves for pipeline service and sets requirements for full bore design, double block and bleed capability, anti-static features and stem retention. API 608 is the general-purpose ball valve standard, written for flanged and butt-welding steel ball valves from DN15 upward in process and utility duty. ISO 17292 is the international counterpart of API 608 and appears in European specifications where an ISO reference is preferred. All three address design, materials, testing and marking, but API 6D assumes a critical isolation function and therefore demands the most. A useful reference point for specifiers is that shell testing is applied at 1.5 times the rated pressure while seat testing is applied at 1.1 times the rated pressure.
Where the three overlap and where they diverge
The three standards agree on core items: material traceability, pressure testing and marking of size, class and material. They diverge on scope and depth. API 6D requires full bore construction for most pipeline valves and treats cavity relief and double block and bleed as design requirements, while API 608 allows reduced bore options. Fire-safe qualification is handled elsewhere: API 607 and ISO 10497 are separate test standards, and a fire-safe claim is only valid when the valve has been tested to one of them. API 608 does not by itself demand fire-safe design, so that requirement must be written in explicitly. API 6D is also stricter on documentation, requiring material certificates and test records as a controlled package.
Selection rules for EPC and OEM projects
For pipeline and manifold isolation, specify API 6D. It matches the design and documentation expectations of pipeline operators and their third-party inspectors. For process plants, utilities and general isolation up to around Class 600, API 608 is normally sufficient and more economical. Where a European client writes the specification around ISO references, ISO 17292 is the correct citation and avoids a discussion about API equivalence. The deciding questions are simple: is double block and bleed required, is full bore required, is fire-safe qualification in scope, and does the client want independent material certification? If two or more answers are yes, API 6D is the safer call. A 20 inch pipeline isolation valve belongs to API 6D by both size and function, and a specifier who cites API 608 there will normally be asked to revise the datasheet before the order is placed.
Marking and documentation differences
Every valve must be marked with size, pressure class, material, standard and heat identification before it leaves the works. API 6D marking is more extensive and ties directly to the documentation package: material certificates, pressure test reports and, when requested, witness records. API 608 and ISO 17292 require the same core identity marks with a lighter default documentation set. J-VALVES issues EN 10204 2.2, 3.1 or 3.2 certificates on request, and third-party witness inspection can be arranged through SGS or TUV. Quotations are typically returned within three working hours, which lets buyers confirm the standard and documentation scope before drawings are frozen.
Frequently Asked Questions
Can one valve be certified to both API 6D and API 608? Yes, but not usually on the same nameplate, because the two standards set different design and documentation baselines. A valve can be designed to satisfy both sets of requirements where they overlap, and manufacturers sometimes do this to cover two markets with one product line. For any given order the buyer should state clearly which standard governs, since it controls testing, marking and the certificate package.
Which standard applies to a 20 inch pipeline isolation valve? API 6D applies. Pipeline isolation at that size falls squarely within the API 6D scope, which covers full bore pipeline valves and treats double block and bleed capability and cavity relief as design requirements. API 608 and ISO 17292 are aimed at general-purpose process and utility duty and are not the usual citation for a 20 inch pipeline valve. Always confirm against the project specification.
Does API 608 require fire-safe design? No. API 608 does not by itself require fire-safe design; it is a general-purpose ball valve standard covering design, testing and marking. Where fire-safe performance is needed, the specification must call for qualification to API 607 or ISO 10497 separately, and the valve must carry a valid test certificate covering the design and size range ordered.
