Introduction
In modern pipeline systems used in oil & gas, petrochemical, LNG, and offshore industries, Double Block and Bleed (DBB) ball valves are critical components for achieving safe isolation and zero-leakage performance. One of the most important design decisions in DBB valve engineering is the selection of the valve body manufacturing method: forged body vs cast body.
The choice between forged and cast construction directly impacts valve strength, sealing reliability, pressure capability, and long-term service performance. High-quality manufacturers such as J-VALVES engineer both forged and cast DBB ball valves based on specific application requirements and international standards.

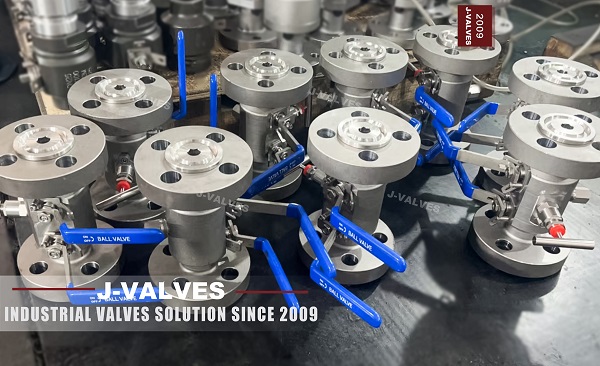

What Is a DBB Ball Valve?
A DBB ball valve (Double Block and Bleed) integrates two independent sealing systems and a bleed mechanism within a single valve body, providing:
Dual isolation (upstream and downstream sealing)
Cavity pressure venting
Leakage verification capability
Reduced pipeline installation complexity
Because DBB valves are used in high-risk pipeline environments, body integrity is a critical safety factor.
Forged Body DBB Ball Valves
1. Manufacturing Process
Forged body valves are produced by:
Heating solid metal billets
Applying high-pressure forging
Forming dense, grain-aligned metal structure
This process eliminates internal porosity and improves mechanical strength.
2. Key Advantages
High Strength and Pressure Resistance
Forged bodies offer:
Superior tensile strength
Excellent resistance to high pressure
Reduced risk of cracking under stress
Better Material Density
Forging creates:
Uniform internal structure
No casting voids or shrinkage defects
Ideal for Critical Service
Commonly used in:
High-pressure gas pipelines
Subsea systems
LNG cryogenic applications
3. Limitations
Higher manufacturing cost
Limited size availability for very large valves
More complex machining process
Cast Body DBB Ball Valves
1. Manufacturing Process
Cast body valves are produced by:
Melting metal
Pouring into precision molds
Solidifying into final shape
This allows more complex geometries and larger sizes.
2. Key Advantages
Cost Efficiency
Casting is more economical for:
Large diameter valves
Mass production projects
Design Flexibility
Casting allows:
Complex internal flow paths
Integrated DBB cavity structures
Reduced machining requirements
Wide Size Range
Cast DBB valves are commonly used in:
Medium to large pipeline systems
Industrial process piping
3. Limitations
Possible internal porosity
Lower mechanical strength compared to forging
Requires strict quality control (NDT testing essential)

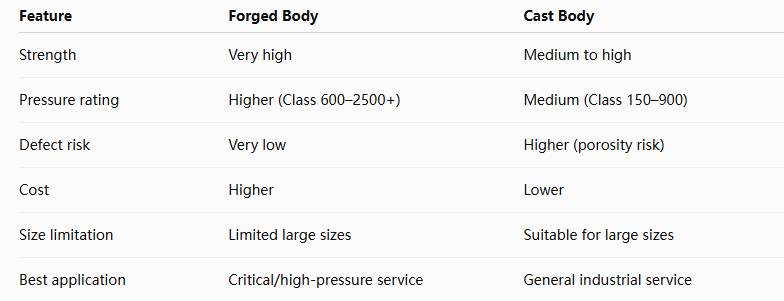

Forged vs Cast: Engineering Comparison
Impact on DBB Valve Performance
1. Sealing Reliability
Forged DBB valves typically provide:
More stable seat alignment
Lower deformation under pressure
Better long-term sealing performance
Cast valves rely heavily on:
Precision machining
Strict pressure testing
2. Safety Performance
In DBB systems, body integrity ensures:
Safe isolation of pipeline sections
Reliable cavity pressure control
Prevention of external leakage
Forged construction generally offers higher safety margins.
3. Service Life
Forged DBB valves: longer lifecycle in high-pressure service
Cast DBB valves: suitable for moderate-duty industrial systems
Quality Control and Testing Requirements
Regardless of forging or casting, DBB valves must undergo strict inspection:
Shell pressure test
Seat leakage test (zero leakage requirement)
NDT inspection (UT, RT, PT, MT)
Material traceability verification
Cavity bleed function test
Manufacturers like J-VALVES implement full-process quality control to ensure both forged and cast DBB valves meet API 6D standards.
Application Selection Guide
Choose Forged Body DBB Valves When:
High-pressure pipelines are involved
Safety-critical isolation is required
Offshore or subsea applications are present
Cryogenic service conditions exist
Choose Cast Body DBB Valves When:
Large diameter pipelines are required
Budget optimization is important
Operating pressure is moderate
General industrial applications are used
Conclusion
The choice between forged and cast body DBB ball valves plays a crucial role in determining system safety, performance, and lifecycle cost. Forged bodies offer superior strength and reliability for high-pressure and critical applications, while cast bodies provide cost-effective solutions for large-scale and general industrial systems.
With advanced engineering capabilities and strict quality control systems, J-VALVES delivers both forged and cast DBB valve solutions tailored to diverse pipeline requirements, ensuring safety, efficiency, and long-term operational stability.
