Introduction
In modern oil & gas, petrochemical, LNG, power generation, and process industries, Double Block and Bleed (DBB) Ball Valves play an important role in achieving safe isolation, maintenance efficiency, and reliable pipeline operation. Selecting the correct seat design is one of the most critical factors affecting valve performance.
The two main sealing configurations used in DBB ball valves are metal seated DBB ball valves and soft seated DBB ball valves. Each design has unique advantages depending on operating temperature, pressure, media characteristics, and service requirements.
J-VALVES provides engineered DBB ball valve solutions with optimized seat designs, advanced material selection, and strict quality control to meet demanding industrial applications.
1. Understanding DBB Ball Valve Seat Design
A DBB ball valve is designed to provide two independent sealing barriers between the upstream and downstream sides while allowing pressure release from the valve cavity through the bleed system.
The seat design directly influences:
Leakage performance
Temperature capability
Wear resistance
Chemical compatibility
Service life
Operating torque
The selection between metal seated and soft seated DBB ball valves should be based on the actual working environment rather than only initial cost considerations.
2. Soft Seated DBB Ball Valve Performance Characteristics
Soft seated DBB ball valves use non-metallic sealing materials between the ball and valve seat. Common seat materials include:
PTFE
Reinforced PTFE
PEEK
Nylon-based materials
These materials provide excellent sealing capability because of their flexibility and low friction characteristics.
Advantages of Soft Seated DBB Ball Valves
2.1 Excellent Bubble Tight Shut-Off Performance
Soft seat materials can compensate for small surface irregularities between the ball and seat, creating a highly reliable sealing interface.
Typical benefits include:
Low leakage rate
Improved sealing consistency
Reduced risk of internal bypass
This makes soft seated DBB valves suitable for applications requiring frequent operation and tight shut-off performance.
2.2 Low Operating Torque
The low friction characteristics of PTFE and similar materials reduce the force required to rotate the ball.
Benefits include:
Smaller actuator requirements
Lower operating energy consumption
Longer actuator service life
For automated pipeline systems, low torque operation can improve overall system efficiency.
2.3 Wide Application Range for Clean Media
Soft seated DBB ball valves are commonly used in:
Natural gas pipelines
LNG facilities
Chemical processing
Instrument isolation systems
Terminal applications
They provide reliable sealing performance where media conditions are clean and operating temperatures are within material limits.
3. Limitations of Soft Seated DBB Ball Valves
Although soft seated designs offer excellent sealing performance, they have certain limitations.
Temperature Restrictions
Non-metallic seat materials have maximum temperature limits. Excessive heat may cause:
Seat deformation
Reduced sealing force
Material degradation
For high-temperature applications, metal seated designs are usually preferred.
Lower Resistance to Abrasive Media
Particles or solid contaminants in the pipeline may damage soft sealing surfaces.
Applications involving:
Sand
Slurry
Metallic particles
High-cycle operation
may require a more wear-resistant seat solution.
4. Metal Seated DBB Ball Valve Performance Characteristics
Metal seated DBB ball valves use metal-to-metal contact between the ball and seat. Typical materials include:
Stainless steel
Inconel alloys
Tungsten carbide coating
Hardened alloy materials
Metal seated designs are developed for severe service conditions where durability and temperature resistance are critical.
5. Advantages of Metal Seated DBB Ball Valves
5.1 Excellent High Temperature Performance
Metal seated DBB ball valves can operate under extreme temperature conditions where soft materials may not be suitable.
Applications include:
High-temperature oil systems
Refinery processes
Steam-related applications
Thermal processing systems
The metallic sealing structure maintains mechanical stability under elevated temperatures.
5.2 Superior Wear and Erosion Resistance
The hardened sealing surfaces provide excellent resistance against:
Abrasion
Erosion
High velocity flow
Frequent cycling
This makes metal seated DBB ball valves suitable for challenging industrial environments.
5.3 Reliable Performance in Severe Service Applications
Metal seated designs are widely applied in:
Upstream oil & gas facilities
Chemical plants
High-pressure pipeline systems
Offshore platforms
They provide long-term operational reliability under harsh conditions.

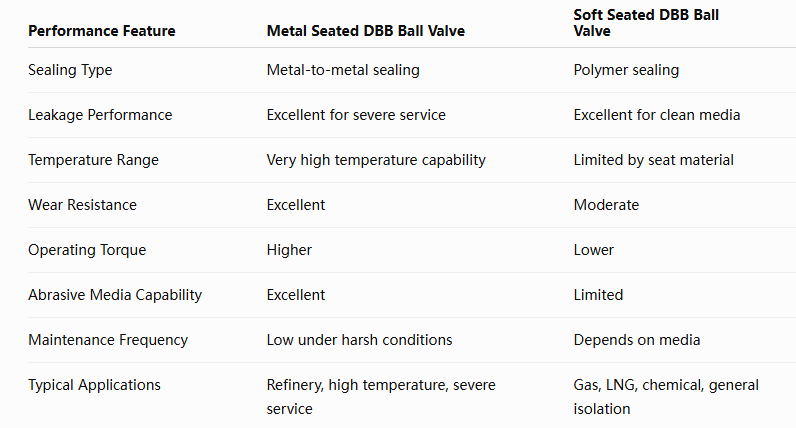

6. Metal Seated vs Soft Seated DBB Ball Valve Comparison
7. J-VALVES DBB Ball Valve Engineering Advantages
J-VALVES understands that DBB ball valve performance depends on integrated engineering rather than a single component. The company focuses on optimized design from material selection to final testing.
7.1 Customized Seat Material Selection
J-VALVES evaluates:
Operating temperature
Pressure rating
Media properties
Cycling frequency
Leakage requirements
to recommend suitable seat configurations.
Available solutions include:
Soft seated DBB ball valves
Metal seated DBB ball valves
Fire safe DBB designs
Cryogenic DBB ball valves
7.2 Advanced Sealing Structure Design
J-VALVES DBB ball valves feature:
Double isolation capability
Reliable cavity pressure relief design
Precision machined sealing surfaces
Optimized seat loading system
These features improve sealing stability and operational safety.
7.3 Manufacturing Quality Control
Each J-VALVES DBB ball valve is manufactured under strict quality procedures, including:
Material traceability
Dimensional inspection
Pressure testing
Seat leakage testing
Functional operation testing
This ensures consistent performance for critical pipeline applications.
8. How to Select the Right DBB Ball Valve Seat Design
The correct choice depends on application requirements.
Choose soft seated DBB ball valves when:
Tight shut-off is the priority
Operating temperature is moderate
Media is clean
Frequent operation is required
Choose metal seated DBB ball valves when:
Temperature is high
Media contains particles
Erosion resistance is required
Long service life is critical
A professional valve manufacturer can help optimize the design based on actual operating conditions.
Conclusion
Both metal seated and soft seated DBB ball valves provide reliable isolation solutions, but their performance advantages are designed for different industrial requirements.
Soft seated DBB ball valves deliver excellent sealing performance, low torque operation, and cost-effective isolation for clean service applications. Metal seated DBB ball valves provide superior durability, temperature resistance, and reliability in severe operating environments.
With advanced engineering capability, customized material selection, and strict manufacturing control, J-VALVES provides high-performance DBB ball valve solutions designed for safe, efficient, and long-term pipeline operation.
