In modern heavy industrial supply chains, "Made in China" is rapidly transforming into "Precision Engineered in China." As a brand focused on providing "INDUSTRIAL VALVES SOLUTION SINCE 2009," J-VALVES owes its success in the high-end international valve market to its highly professionalized, standardized workshop and rigorous quality control.
High-pressure DBB (Double Block and Bleed) ball valves integrate two sets of sealing structures and a bleed valve, requiring extremely tight machining tolerances, assembly precision, and material density. Today, let’s go inside J-VALVES' modern workshop to uncover the four core manufacturing processes behind these high-pressure DBB ball valves.
1. Precision Forging & Rigorous Non-Destructive Testing (NDT)
Under high-pressure conditions (such as ANSI Class 900/1500/2500), valve castings are susceptible to stress concentration or bursting due to internal porosities or blowholes under prolonged high-pressure erosion. Therefore, J-VALVES high-pressure DBB ball valves are constructed from solid forged components.
During raw material receiving, J-VALVES performs 100% Ultrasonic Testing (UT) and Magnetic Particle Testing (MT) to eliminate micro-cracks and material defects right from the source, guaranteeing a long operational life under pressure.
2. CNC Integrated Precision Machining
As observed from the finished product photos released by J-VALVES, the valve bodies exhibit high surface finishes and perfectly flat flange sealing surfaces. This is driven by the workshop's advanced CNC machining centers.
Concentricity Control: A DBB ball valve contains two distinct balls. If the concentricity error between the two seat pockets exceeds 0.02mm, it will increase operating torque and accelerate seat wear. J-VALVES uses single-clamping, multi-step integrated machining to ensure flawless alignment of the valve cavity.
Stem & Ball Grinding: The valve stem undergoes mirror-finish grinding to a roughness of $Ra \le 0.4 \mu m$, which significantly reduces opening/closing friction, extends packing life, and prevents stem fugitive emissions.
3. Rigorous "Bi-Directional" Pressure & Leakage Testing
Every J-VALVES DBB ball valve must pass an examination on the digital pressure test bench that is far stricter than standard valves:
Double Isolation Test (Block Test): Hydrostatic pressure at 1.5 times the rated pressure is applied from the upstream and downstream sides alternately. With the valve closed, the central bleed valve is monitored to ensure no bubbles or drops escape.
High-Pressure Gas Test: According to custom client requirements, high-pressure Nitrogen gas tests are performed to simulate highly permeable natural gas pipelines, ensuring the valve achieves Rate A (Zero Leakage) standards per API 598 or ISO 5208.
4. Surface Anti-Corrosion & Industrial-Grade Coating

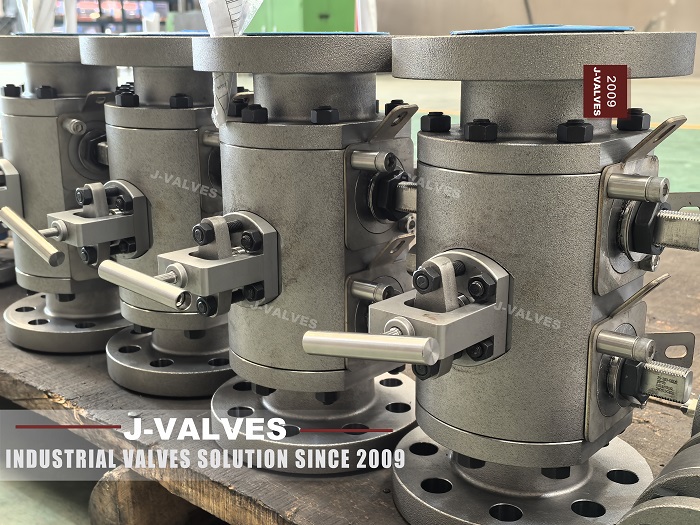

The distinctive silver-gray metallic texture displayed in the product photos is the result of J-VALVES' high-performance anti-corrosion coating process. The workshop applies sandblasting (achieving Sa 2.5 grade), followed by zinc-rich primers and epoxy topcoats. For extreme offshore conditions, three-layer fluorocarbon or solvent-free epoxy systems are utilized, ensuring the valves resist salt spray and harsh environments.
Conclusion
High-quality valves are not merely inspected; they are meticulously manufactured. J-VALVES adheres to the craftsmanship it was founded on in 2009, embedding rigorous standards into every workshop procedure. Choosing J-VALVES high-pressure DBB ball valves means choosing trouble-free plant operation and incredibly low maintenance costs.
