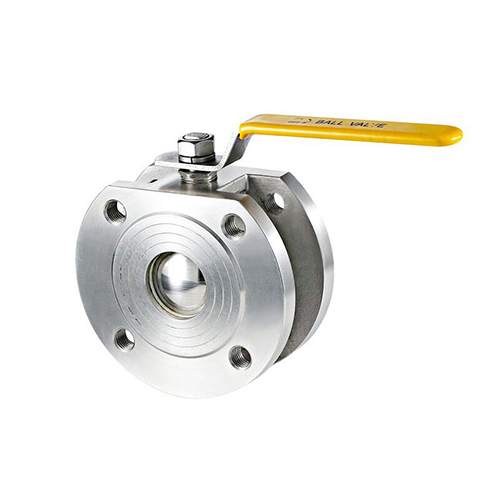

Stainless Steel Wafer Type Reduce Port Floating Ball Valve

Stainless Steel Wafer Type Reduce Port Floating Ball Valve

Stainless steel wafer ball valve, it designs like Italy type ball valve, also called 1pc flange ball valve, it is integrated body, generally is made in DIN/EN/GB standards, pressure from PN16-PN40. Stainless steel wafer ball valve, could make in full port and reduce port meet different pipeline's fluid rate. Compare to normal ball valve, wafer ball valve structure is shorter, weight is lighter, volume is smaller. And wafer ball valve use flexible seat structure, which make seal reliable. For wafer ball valve, we could use fire safe and anti-static proof design according to customer's needs.

Products Specifications:

1. Material: SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc.

2. Size: 1/2~6 inch (DN15~DN150)

3. Connection ends: Wafer

4. Port: educe Port

5. Working Pressure: 150LB~300LB/PN16~PN40

6. Working Temp.: -20~300℃, or according to customer requirements for different industry

7. Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid.

8. Operated:Handle or Handle with locking device.
