Q41F
-
MSNL

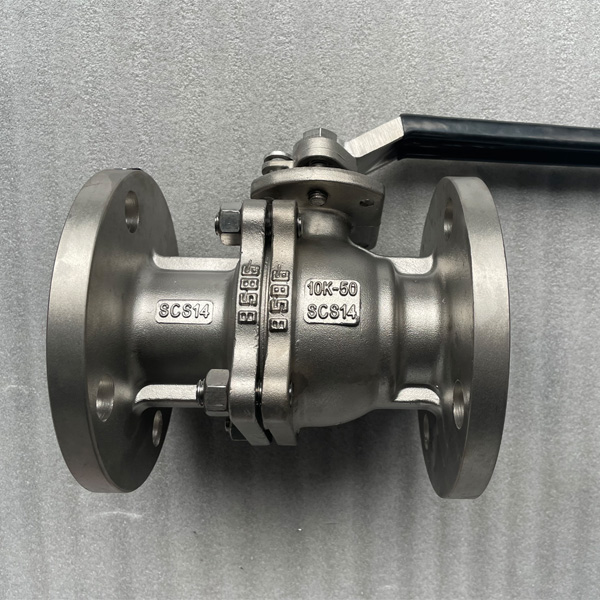

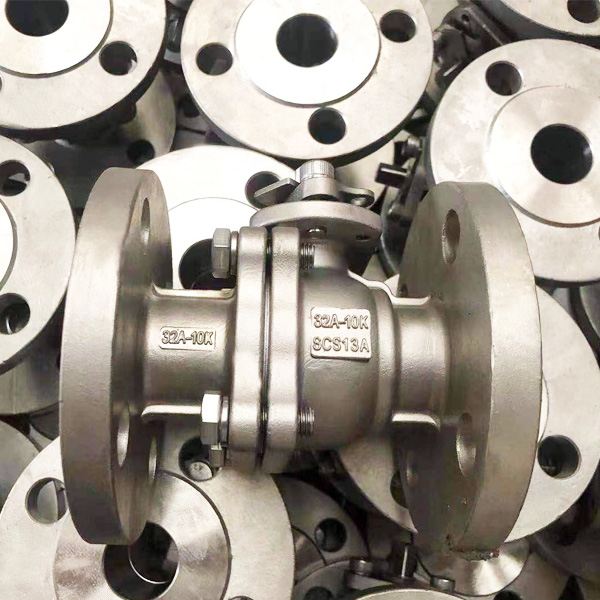

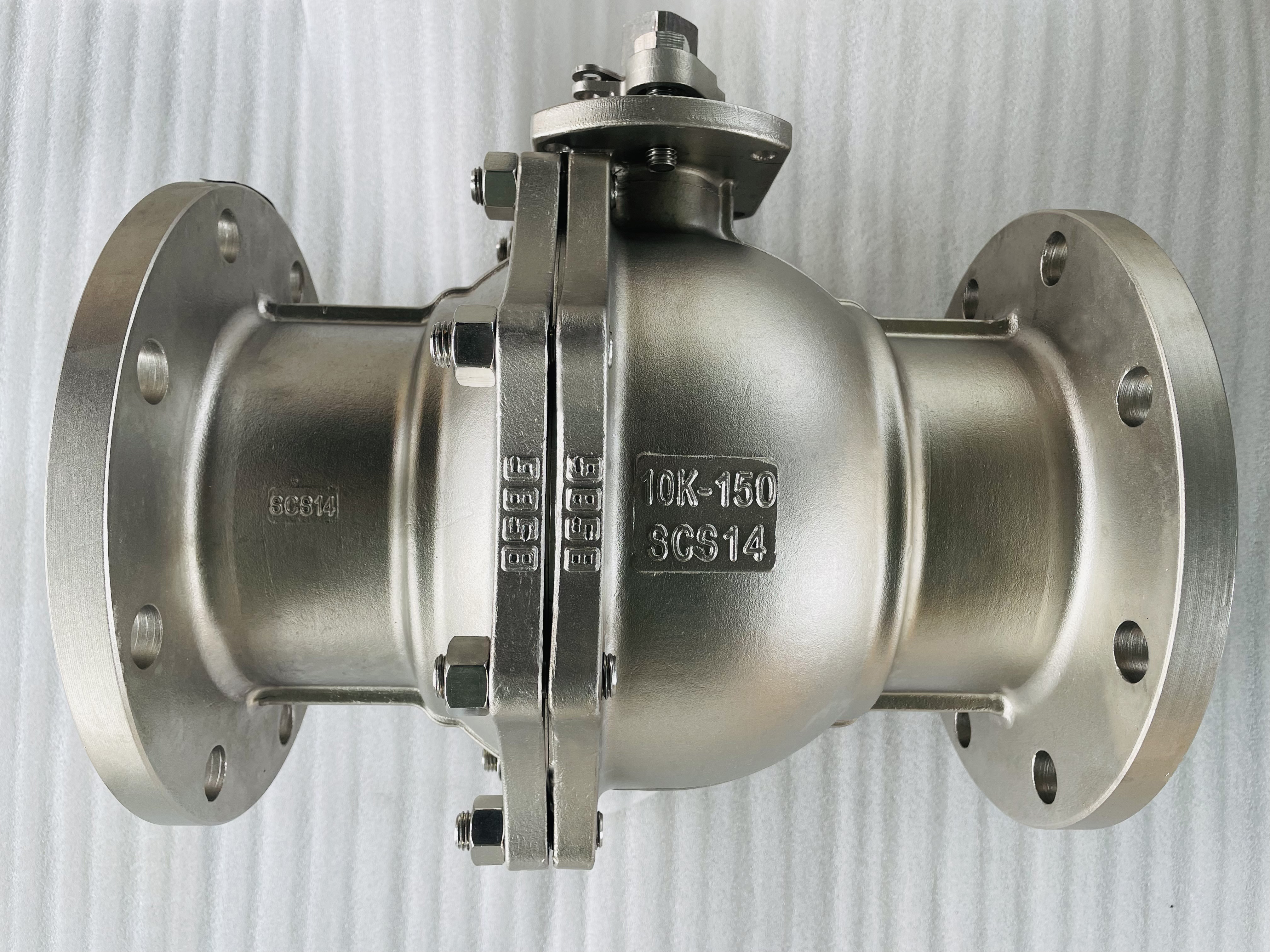

Two Piece Body Floating Flange end JIS10K Ball Valve
Introducing our high-quality Flange Ball Valve JIS10K, designed to meet the strict standards set by the Japanese Industrial Standards (JIS). This professional-grade valve is specifically engineered for use in various industries such as oil and gas, chemical, chemical pharmaceutical, and mining.
With its exceptional performance and reliability, our Flange Ball Valve JIS10K serves as an essential tool for cutting off or distributing medium within pipelines or equipment. Its robust construction ensures long-lasting durability, even in demanding environments.
The Flange Ball Valve JIS10K is meticulously crafted to provide superior functionality and efficiency. Its precision-engineered design guarantees smooth operation and precise control over the flow of fluids, allowing for seamless integration into your industrial processes.
Whether you require a reliable valve for oil and gas applications, chemical processing, or mining operations, our Flange Ball Valve JIS10K is the ideal solution. Rest assured that this product adheres to the stringent JIS10K standard, ensuring optimal performance and safety.
Invest in our Flange Ball Valve JIS10K and experience the utmost confidence in your fluid control systems. Trust in our commitment to delivering professional-grade products that exceed your expectations.
JIS10K Ball Valve design description:
1. Full Bore
2. JIS 10K/20K/40K Flange connection
3. Size: 1/2’’ to 8’’ (DN15-200)
4. Material:SCS13(A351-CF8),SCS14(A351-CF8M),SCS13A(A351-CF3),SCS14A(A351-CF3M)
5. Fire-Safe Design According to API 607
6. Applicable Medium: General oil, Gas & Water applications
7. Blow-out Proof Stem Design
8. Temperature Range: -29°C to 250°C
JIS10K Flanged Stainless Steel Ball Valve technical specification:
1. Design & Manufacture standard: JIS B2071
2. Face to face dimension standard: JIS B2002
3. Flange standard: JIS B2220
4. Test & Inspect standard: JIS B2003.
JIS Flanged Stainless Steel Ball Valve material list:
Item No | Part Name | Material |
1 | Nut | SS304 |
2 | Stud | SS304 |
3 | Cap | CF8M/CF8/ WCB |
4 | Body Gasket | PTFE/RPTFE |
5 | Seat | PTFE/RPTFE |
6 | Ball | SS316/SS304 |
7 | Body | CF8M/CF8/ WCB |
8 | Thrust Washer | PTFE |
9 | Stem Packing | PTFE |
10 | Stem | SS316/SS304 |
11 | Stop Cap | SS304 |
12 | Bolt | SS304 |
13 | Locking Pin | SS304 |
14 | Locking Nut | SS304 |
15 | Handle | Plastic+201 |
16 | Stop Washer | SS304 |
Note: All the data should be confirmed with the approved drawings of manufacturer.
