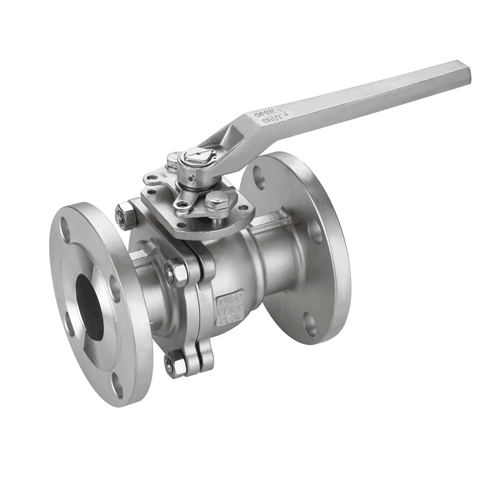

API608/API6D Stainless Steel Floating 2PC Flange Ball Valve

API608/API6D Stainless Steel Floating 2PC Flange Ball Valve

API Stainless Steel Ball Valve Specifications:

1. Size: 1/2’’~8’’(DN15~DN200)

2. Pressure: 150LB~600LB

3. Material: A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, A216-WCB

4. Ends: RF, RTJ, BW

5. Port: Full Port

6. Seal/Seat: PTFE, RPTFE, PPL, PEEK

API Stainless Steel Ball Valve Design Description:

1. Floating ball, full bore.

2. ISO5211 mounting pad for option.

3. Blow-out proof stem design.

4. PTFE/RPTFE/PPL/PEEK seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition).

5. Fire-proof and anti-static design if need.

6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

API Stainless Steel Ball Valve technical specification:

1. Design & Manufacture standard: API 6D, API 608, BS 5351.

2. Pressure & Temperature standard: ASME B16.34.

3. Face to face dimension standard: ASME B16.10.

4. Flange standard: ASME B16.5, ASME B16.47.

5. Test & Inspect standard: API 598, API 6D.

API Stainless Steel Ball Valve competitive advantage:

1. GOOD QUALITY

2. RESONABLE PRICE

3. ON-TIME DELIVERY

4. STRICT EXAMINATION

5. SINCERE SERVICE

6. DURABLE IN USE

7. PROFESSIONAL EXPORT EXPERIENCE

API Stainless Steel Ball Valve, the connection between valve body & bonnet use a gasket for seal, to avoid leakage due to fire, high temperature or vibration, etc. The body and bonnet are designed metal to metal contacted, thus to form up a seal flange to ensure leak-tightness. API Stainless Steel Ball Valve use fire safe structure, in case of fire, the nonmetal packing or seat will be burnt, the considerable leakage may possibly cause fire spread. Then the fire protection structure functions to prevent medium from mass leakage. Once the seat is burnt, the ball will directly contact the metal face on valve body, thus to prevent medium leaking our from the burnt seat. It’s s good helpful design in oil & gas pipelines.

API Stainless Steel Ball Valve material list:

 NoteAll the data should be confirmed with the approved drawings of manufacturer.
