Q41F
MSNL

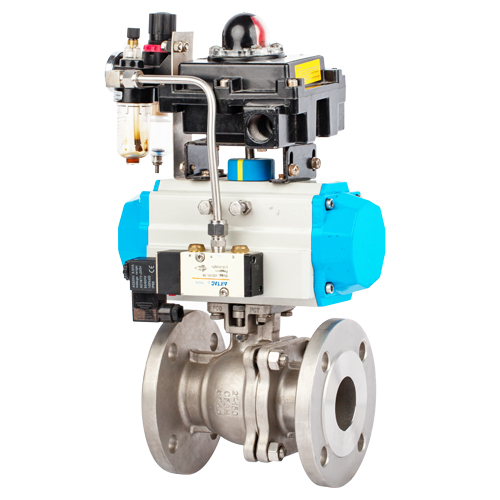

API608/API6D Stainless Steel Flange Floating 2PC Ball Valve with Pneumatic Actuator with Limit Switch/Air Filter/Solenoid Valve(150LB/300LB/600LB)
The Stainless Steel Flange Floating 2PC Ball Valve with Pneumatic Actuator and additional components like the Limit Switch, Air Filter, and Solenoid Valve (available in 150LB, 300LB, and 600LB options) is designed for long-distance control in pipelines. The pneumatic actuator allows for faster opening and closing speeds compared to a handle or worm gear. It also provides the ability to adjust the speed of operation. The 2PC flange ball valve features a floating solid ball design with API607 fire safe and anti-static device design. This type of ball valve is commonly used in the oil and gas industry. Soft seat and metal seat options are available depending on the medium being handled. For corrosive mediums, a metal seat is recommended. Before installation, the air pressure required to operate the pneumatic actuator should be confirmed. This will determine the appropriate type of actuator to use. If the air pressure is low, a low torque pneumatic actuator should be chosen. It is also important to ensure that the valve torque is suitable for the selected actuator.
Pnuematic Actuator Features:
1. Adhere to the most recent standards: ISO5211, DIN3337, VD/VDE3845, and Namur;
2. Impressive, compact, and contemporary design;
3. Advanced surface technology, resulting in minimal friction, extended lifespan, and noise-free operation;
4. Identical external structure for both single acting (spring return) and double acting, facilitating easy installation of accessories;
5. Utilizes die-casting aluminum for the piston and end caps, providing exceptional strength and lightweight properties;
6. Offers various seal materials suitable for different temperature ranges;
7. Additional accessories available: Limit switch box, solenoid valves, positioner, etc.;
8. Equipped with two independent stroke adjustment mechanisms, enabling precise adjustments of ±5° in both open and closed positions.
Stainless Steel Ball Valve Description:
1. Size: 1/2’’~10’’(DN15~DN250)
2. Pressure: 150LB/300LB/600LB
3. Material: A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, A216-WCB
4. Ends: RF, RTJ, BW
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
Stainless Steel Ball Valve products construction:
1. Cast/Stainless Steel material
2. Solid Ball
3. Blow-out Proof Stainless Steel Stem
4. Reinforced PTFE Seats or high temperature seats in PPL/PEEK
5. Full Opening for Unrestricted Flow
6. Lockable in Full Open or Closed Positions
7. API 607 Fire Safe Design available
8. Mounting Pad for Easy Actuation
9. Adjustable Length/Removable Handles to fit into areas of limited space
10. Certified to meet the requirements of different markets.
Stainless Steel Ball Valve technical specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351
2. Pressure & Temperature standard: ASME B16.34
3. Face to face dimension standard: ASME B16.10
4. Flange standard: ASME B16.5, ASME B16.47
5. Test & Inspect standard: API 598, API 6D
Stainless Steel Ball Valve applications:
1. Chemical Industry
2. Petro-chemical Industry
3. Plant Construction
4. Power Plant Engineer
5. Paper & Pump Industry
6. Mining
7. Gas Utilities
8. Environment Technologies
9. Steam Generation
10. Drink water
11. Sewage water industry
