Q41F
MSNL

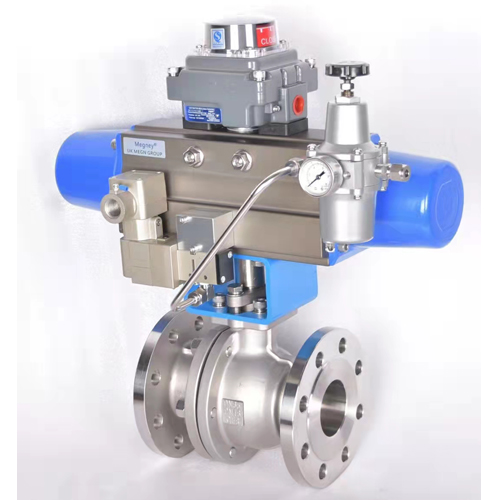

API608/API6D Stainless Steel Flange Floating 2PC Ball Valve with Pneumatic Actuator with Limit Switch/Air Filter/Solenoid Valve(150LB/300LB/600LB)
2PC Flange Ball Valve with Pneumatic actuator operate for long distance control in pipelines, and pneumatic actuator could equip solenoid valve, air filter and limited switch. Compare to handle or worm gear, pneumatic actuator open and close speed is faster. And it could asjust speed of open or close according to operation. 2PC flange ball valve, floating solid ball design with API607 fire safe and anti-static device design. Ball valve is widely used in oil and gas industry, generally use soft seat and metal seat for different mediums, like some corrosion medium need use metal seat. Pneumatic actuator need air pressure to open and close, before install it, need to confirm the air pressure then confirm pneumatic actuator type, if air pressure is small, they need to use low torque pneumatic actuator to open it. But also need to confirm that valve torque is suitable for this actuator.
Stainless Steel Ball Valve Specifications:
1. Size: 1/2’’~10’’(DN15~DN250)
2. Pressure: 150LB/300LB/600LB
3. Material: A351-CF8, A351-CF8M, A351-CF3, A351-CF3M, A216-WCB
4. Ends: RF, RTJ, BW
5. Port: Full Port
6. Seal/Seat: PTFE, RPTFE, PPL, PEEK
Stainless Steel Ball Valve design description:
1. Cast/Stainless Steel material
2. Solid Ball
3. Blow-out Proof Stainless Steel Stem
4. Reinforced PTFE Seats or high temperature seats in PPL/PEEK
5. Full Opening for Unrestricted Flow
6. Lockable in Full Open or Closed Positions
7. API 607 Fire Safe Design available
8. Mounting Pad for Easy Actuation
9. Adjustable Length/Removable Handles to fit into areas of limited space
10. Certified to meet the requirements of different markets.
Stainless Steel Ball Valve technical specification:
1. Design & Manufacture standard: API 6D, API 608, BS 5351
2. Pressure & Temperature standard: ASME B16.34
3. Face to face dimension standard: ASME B16.10
4. Flange standard: ASME B16.5, ASME B16.47
5. Test & Inspect standard: API 598, API 6D
Stainless Steel Ball Valve applications:
1. Chemical Industry
2. Petro-chemical Industry
3. Plant Construction
4. Power Plant Engineer
5. Paper & Pump Industry
6. Mining
7. Gas Utilities
8. Environment Technologies
9. Steam Generation
10. Drink water
11. Sewage water industry
