Flanged Stainless Steel Three Way Ball Valve with ISO5211 Direct Mounting Pad ( T/L Port) 1/2~8 inch

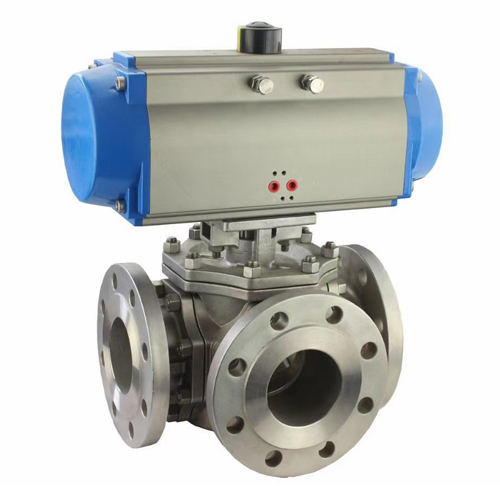

Masoneilan Valve offer flange three way flange ball valve with L port or T port in ISO5211 high mounting pad design, suitable for pneumatic actuator, electric actuator or handle directly. Flange three way ball valve design with fire safe and anti-static device for safety operation. L port is used for flow switch, could connect two channels that are perpendicular to each other,T-type is suitable for medium splitting, confluence or flow direction switching. Flange three way ball valve has soft seat in PTFE/RPTFE/PPL/PEEK, as well as metal seat for high temperature.
Three- and four-way have an L- or T-shaped hole through the middle. The different combinations of flow are shown in the figure. It is easy to see that a T valve can connect any pair of ports, or all three, together, but the 45 degree position which might disconnect all three leaves no margin for error. The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together.
Flange 3 Way Bal Valve is a true multi-way ball valve with balanced 4-seat construction. This full port valve is available in a variety of flow plans which can replace multiple 2-way valves in a process system. A standard ISO 5211 pattern mounting pad allows for easy assembly of pneumatic and electric actuators.
Flange Three Way Ball Valve Specifications:
Product Name | T/L Port Flange 3 Way Ball Valve with ISO5211 Mounting Pad for Pneumatic actuator |
1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
2. Size | 1/2~8 inch (DN15~DN200) |
3. Connection ends | Flange |
4. Port | Reduce Port/Full Port |
5. Working Pressure | 150LB/300LB/PN16/PN25/PN40/JIS10K/JIS20K |
8. Working Temp. | -20~300℃, or according to customer requirements for different industry. |
9. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
10.Design & manufacture standard | API6D |
11. Pressure & Temp. standard | ASME 16.34 |
12. Face to face dimension standard | ASME 16.10 |
13. Flange standard | ASME16.5/16.34 |
14. Inspection & Testing | API598, API6D |
15. Certificate | ISO9001:2008, CE & TS |
Shipment | |
Delivery Time | 15~20 Days |
Package | Standard Exporting Plywood Case |
Shipping Port | Ningbo/Shanghai, China |
Shipping Terms | Exw, FOB, CFR, CIF, etc. |
Payment Terms | T/T, Western Union, PayPal, etc. |
30% prepayment, 70% balance paid before shipping or against copy of BL | |
Country of Origin | Wenzhou city, China |
Production Capacity | 6000 ton/year |
MOQ | 10 PCS/size |
Flange Three Way Ball Valve features:
1. Floating ball for normal pressure
2. L type and T type port for choice.
3. Blow-out stem proof design.
4. Soft seat and metal seat, seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition).
5. ISO 5211 high mounting pad for option.
6. Fire-proof and anti-static design.
7. Extended stem design for low temperature operation.
8. Operation: Hand wheel, Lockable handle, Pneumatic actuator & Electric Actuator.
Competitive Advantage:
1. 18 Months Guarantee for quality.
2. OEM manufacturer, print client’s LOGO on the valve body.
3. Offer Operation Manual & Install Introduction for safety use.
4. Offer manufacturer’s reasonable price to win the market for both.
5. Accept any the third party inspection.
6. As a factory, every production process can be controlled during manufacture.
7. Offer inspection & testing reports for raw materials, production process, wall thickness, face to face dimension, pressure test, welding test, painting test, etc.
