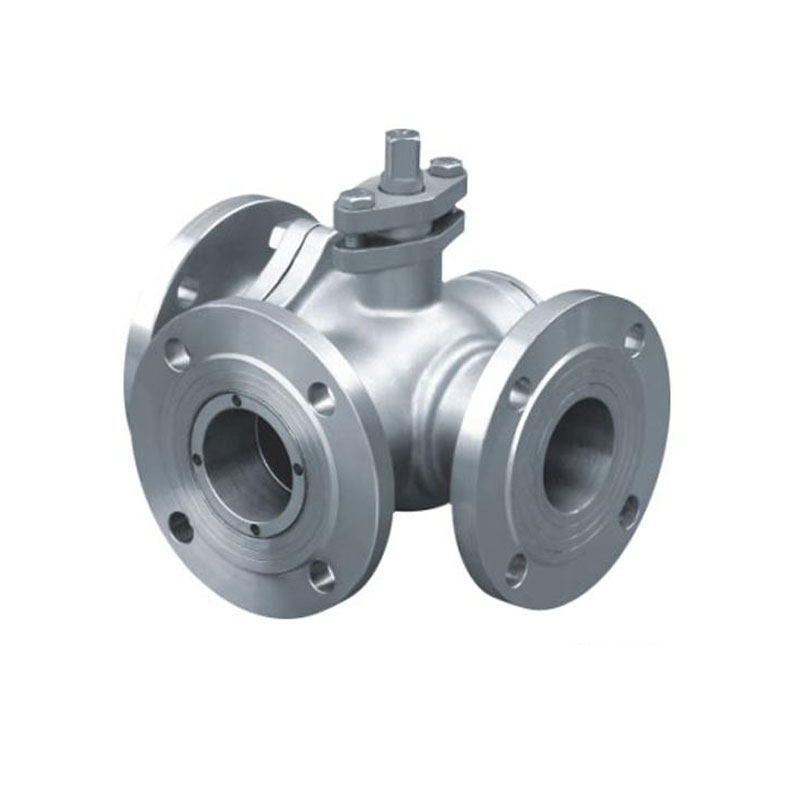

3way Stainless Steel Ball Valves

Structural Features

• High-Quality Stainless Steel Material: The valve body, ball, and stem are all made of 304 or 316 stainless steel, featuring high strength and good corrosion resistance. They can resist erosion from various chemical media, extending the valve's service life.

• Three-Way Switching Function: By rotating the ball, it enables flexible switching and distribution of fluids in three directions, meeting complex fluid control requirements.

• Floating Ball Design: The ball floats freely under medium pressure, closely fitting the valve seat to form an excellent sealing effect, ensuring no leakage risk.

• Fire-Safe Design: Complies with relevant fire safety standards. Even in fire conditions, the valve can maintain sealing performance, preventing medium leakage and ensuring system safety.

• Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion, and is particularly suitable for controlling flammable and explosive media.

• Blowout-Proof Stem Design: The stem adopts a blowout-proof design to ensure operational safety and prevent the stem from blowing out due to accidental pressure increases.

• Compact Design: Small in size and light in weight, it is easy to install and integrate into existing systems, saving space.

Technical Parameters

• Size Range: 1/2″ to 8″ (DN15 to DN200)

• Pressure Rating: 150LB to 600LB (PN20 to PN100)

• Temperature Range: -20℃ to +180℃

• Materials:

• Valve Body: 304, 316 stainless steel

• Ball: 316 stainless steel

• Stem: 316 stainless steel

• Sealing Material: PTFE, RPTFE

• Connection Type: Flange connection (RF), compliant with ASME B16.5 standards

• Operation Mode: Manual (handwheel operation), pneumatic

• Design Standards: ASME B16.34, API 608

• Testing Standards: API 598

• End-to-End Dimensions: Compliant with ASME B16.10 standards

Application Fields

• Oil and Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing medium leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure media isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements, used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Utilized in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Use: Suitable for controlling and isolating media such as water, oil, and gas.
