3 Way Floating Stainless Steel Threaded Ball Valve with ISO 5211 Mounting Pad, 1000 PSI WOG, L And T Port

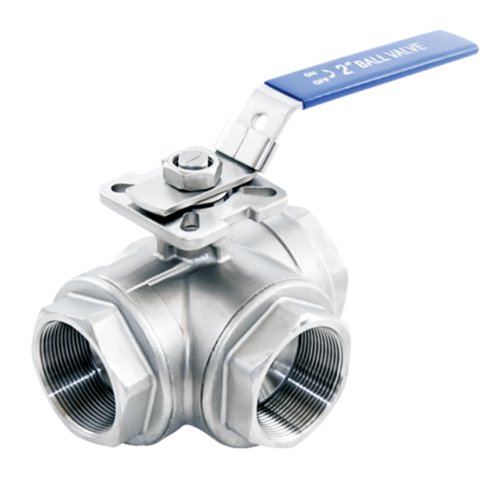

Overview of the J-VALVES 3 Way Floating Stainless Steel Threaded Ball Valve

The J-VALVES three way floating stainless steel ball valve is a multi-port quarter-turn valve built for diverting, selecting, combining and mixing duties in threaded piping systems. It covers 1/4 inch to 4 inch (DN8 to DN100) with a 1000 PSI (PN63) WOG pressure rating, an investment cast CF8M (AISI 316) or CF8 (AISI 304) body and a full bore flow path. The defining feature of this model is the machined ISO 5211 mounting pad on the valve boss: pneumatic and electric quarter-turn actuators bolt straight onto the valve without brackets or coupling inserts, so a manual valve and an automated valve share exactly the same body.

In a floating ball valve the ball is not fixed to the stem. Line pressure pushes the ball slightly downstream so it presses against the seat, and the sealing force grows with the working pressure. This self-energizing behaviour delivers bubble-tight shut-off in both flow directions to the seat leakage acceptance of ISO 5208 and API 598, without springs, pistons or other auxiliary loading parts.

The valve is produced in two flow geometries. The L port (model Q14F) connects the common bottom port to either of the two side ports one at a time, which suits source selection and flow diversion with positive shut-off of the idle branch. The T port (model Q15F) connects all three ports at once or any two of them, which suits blending two inlet streams into a common outlet and splitting one supply to two consumers. Anti-static grounding between ball, stem and body and a blow-out proof stem are fitted as standard on every size.

Floating Ball Design and Sealing Principle

The floating ball sits between two seats and is free to move a fraction of a millimetre along the valve axis. Under line pressure the hydraulic load on the upstream side shifts the ball toward the downstream seat, so the contact force between ball and seat rises in proportion to the line pressure. At low pressure the PTFE seats provide the sealing energy on their own; as pressure rises the line load takes over and the seal becomes tighter. The result is a valve that performs better as conditions get harder, with a short and predictable torque curve and fewer wearing parts than a trunnion design in this size class.

The stem transmits torque but does not carry axial load, and it is retained below a shoulder inside the body so it cannot blow out even if the packing is removed while the line is pressurized. An anti-static device bonds the ball, stem and body so that static charge generated by media flow is dissipated to the pipeline, a requirement for flammable media such as fuel, paint and solvent duties. Seats are PTFE as standard, with RPTFE and PEEK options for higher temperature, higher pressure margin and abrasive service.

ISO 5211 Direct Mounting Pad

The ISO 5211 pad is a standardized machined flange on top of the valve with a defined bolt circle, pilot diameter and stem drive dimension. Because the pad face and the stem bore are machined in one setup, actuator mounting is inherently concentric. Concentric actuation matters for three way valves in particular: an off-axis bracket allows side load on the stem, and in a floating design that side load translates into uneven seat wear and torque drift over time. Direct mounting removes this failure mode at the design level rather than compensating for it in service.

Pad size follows valve size: F03 on 1/4 to 1/2 inch, F04 on 3/4 and 1 inch, F05 on 1-1/4 to 2 inch and F07 on 2-1/2 to 4 inch. The double-D stem drive accepts standard actuator couplings, so rack and pinion pneumatic actuators, spring return actuators and quarter-turn electric actuators from any ISO 5211 compliant brand can be fitted without adaptation. For skid builders this cuts actuation assembly time by more than half compared with bracketed solutions, and for plant operators it means a manual valve can be converted to automated service at any time without removing it from the line.

L Port and T Port Flow Patterns

The L port bore is drilled at 90 degrees through the ball. With the common bottom port as reference, a quarter turn selects the left side port or the right side port, one at a time, and the idle branch is positively shut off. Typical duties include switching a dosing line between two metering pumps, routing one supply to two alternative consumers, and selecting between a process stream and a bypass line.

The T port bore connects the bottom port with both side ports in one position, so all three ports can communicate at once. Rotating the ball pairs any two ports or keeps all three open. This geometry is the standard choice for blending two inlet streams into a common outlet, for splitting one supply between two consumers, and for straight-through pass with a tee branch open at the same time. One T port limitation should be noted at specification stage: a T port ball cannot shut off all three ports simultaneously, so a true three-way isolation duty needs two 2-way valves or an L port plus a separate block valve.

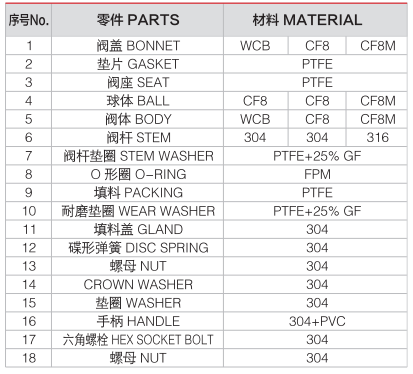

Material Options

Bodies are investment cast, which gives smooth internal flow passages, consistent wall thickness and a clean surface finish around the seat pockets. CF8M (SS316) is the standard body material because it resists chlorides, dilute acids and marine atmospheres; CF8 (SS304) is offered where the media is milder and cost is the priority. The ball is SS316 and mirror polished to lower running torque and extend seat life; the stem is SS316, blow-out proof and anti-static bonded. Seat inserts follow the duty: PTFE for general water, oil, gas and mild chemical service from -20 C to +180 C, RPTFE for extra wear life and pressure margin, and PEEK for temperatures up to approximately +300 C or abrasive media.

Technical Specifications

The table lists the standard technical envelope of the valve. Values apply to the standard trim and may shift when the seat, end connection or actuator is changed per the order specification.

Standards and Compliance

The valve is designed and inspected against the standards that govern threaded ball valves. MSS SP-110 covers quality and test requirements for threaded end ball valves, seat and shell testing follow API 598 and the leakage acceptance of ISO 5208, and the actuator interface is machined to the flange and drive dimensions of ISO 5211. Fire safe construction to API 607 is available where the media and plant specification call for a secondary metal seal path if the soft seat is destroyed. Low emission stem sealing can be arranged to ISO 15848-1 on request for fugitive emission controlled installations.

Every valve ships with a test report, and pressure-retaining materials are documented with EN 10204 3.1 material certificates linked to heat numbers. For European installations PED 2014/68/EU documentation can be supplied, and threaded connections are machined to ASME B1.20.1 for NPT, ISO 7-1 for BSPT and ISO 228-1 for BSPP.

Manufacturing Process

J-VALVES operates the process chain for this valve in house. Investment castings are poured from a controlled wax line so the CF8M and CF8 bodies hold the required wall thickness and internal surface condition, and every casting is shell tested with air before machining. All seat pockets, thread ends and the ISO 5211 pad are produced on CNC machining centres in single setups, which is what keeps the pad face, stem bore and seat bores concentric with each other. Threads are gauged against GO and NO-GO plug gauges for the selected standard.

Assembly is torque controlled, with seats lubricated and the stem packing set to the specified gland load. Each valve is cycle tested, marked by laser with size, body material, pressure rating and heat number, and packed for export with the bore protected. Third party inspection can be arranged at any stage on request, and witness points are recorded in the order file.

Quality Control and Testing

The valve passes an eight step inspection sequence before it leaves the plant. Each step is recorded so the test report and material certificates form a complete document package for the order.

Shell strength testing pressurizes the body to 1.5 times the rated pressure with water and holds it while all joints are inspected for weeping. Seat testing applies 1.1 times the rated pressure alternately to each port and checks leakage past both seats in both flow directions, which is how the three way geometry is proved rather than assumed.

Applications and Industry Service

Chemical dosing skids use the L port valve to switch metering lines between duty and standby pumps without breaking pipe joints, and the SS316 body handles the acid and solvent environment. Water and wastewater plants apply the T port valve where coagulant and polymer streams are blended at the filter inlet, and the stainless construction withstands chlorinated water. In HVAC and hydronic systems the direct-mount pad accepts quarter-turn electric actuators wired into BMS controls for heating and cooling loop changeover between boilers, chillers and heat exchangers.

Instrument air headers and OEM machinery use the valve as a compact selection point where the standardized ISO pad lets one actuator platform cover all valve sizes on the skid, simplifying spares. Marine and shipbuilding service selects SS316 for seawater cooling, ballast selection and fuel changeover duties that resist salt spray. Where the media is flammable, the anti-static device and the optional API 607 fire safe construction keep the valve compliant with plant safety specifications.

Installation, Operation and Maintenance

Before installation confirm the thread standard on the drawing matches the piping system, and apply thread sealant or PTFE tape to male threads only, keeping tape off the first two threads so it cannot migrate into the flow path. Wrench only on the end flats nearest the pipe, never on the body joint or the ISO pad, and install pipe supports on both sides because a threaded valve must never carry pipe weight or misalignment stress. For actuated assemblies, bolt the actuator to the pad with grade A2-70 screws, set the actuator stops to the 90 degree stroke and cycle the package twice before pressurizing.

During operation cycle the valve at least once a month in infrequently used lines to keep the seats free. Stem packing is adjustable, and a quarter turn of the gland nut typically restores sealing if stem leakage appears. For planned maintenance isolate the valve, depressurize, and replace the complete seat and seal kit, which is available as a single spare set covering seats, stem packing and body gasket.

How to Specify and Order

To place an order, state the size in inch and DN, the flow pattern L port or T port, the thread standard among NPT, BSPT and BSPP, the body material CF8M or CF8, the seat material and the operator, whether lever handle or an ISO 5211 actuator from your own or our supply. Indicate whether fire safe construction, low emission sealing or PED documentation is required, and mention the media and temperature so the seat choice can be confirmed.

Standard specifications are accepted from a minimum order of one piece and delivered in a regular lead time of 2 to 4 weeks. Actuated packages are assembled and cycle tested as a unit before shipment, with solenoid valves, limit switches and positioners fitted on request. The delivery file includes the test report, the EN 10204 3.1 material certificate and a packing list, and OEM branding with your logo on the body, handle and packaging is available from trial quantities of 10 pieces upward.

FAQ

Q: What is the difference between an L port and a T port three way ball valve?

A: An L port valve connects the common port to one of the two side ports at a time and positively shuts off the idle branch, which suits diverting and source selection. A T port valve can connect all three ports simultaneously, which suits mixing two inlet streams into one outlet or splitting one supply to two consumers. A T port valve cannot shut off all three ports at once.

Q: Why choose an ISO 5211 mounting pad instead of a bracket?

A: The ISO 5211 pad is machined in the same setup as the stem bore, so any compliant pneumatic or electric actuator bolts on concentric without a bracket. This removes side load on the stem, cuts assembly time by more than half, and lets a manual valve be converted to automated service without removing it from the line.

Q: What pressure and temperature can this valve handle?

A: The standard rating is 1000 PSI (PN63) WOG at ambient temperature. PTFE seats cover -20 C to +180 C, RPTFE adds wear life and pressure margin, and PEEK seats extend the service temperature to approximately +300 C. Ratings derate with temperature per the pressure-temperature curve supplied with each valve.

Q: Which thread standards and seat materials are available?

A: Threads are offered in NPT per ASME B1.20.1, BSPT per ISO 7-1 and BSPP per ISO 228-1, with NPTF and custom threads on request. Seats are PTFE as standard, with RPTFE for higher wear life and PEEK for temperatures up to about +300 C or abrasive media.
