Q41F
MSNL

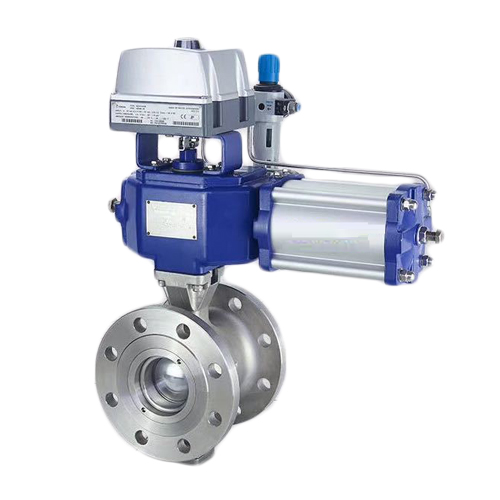

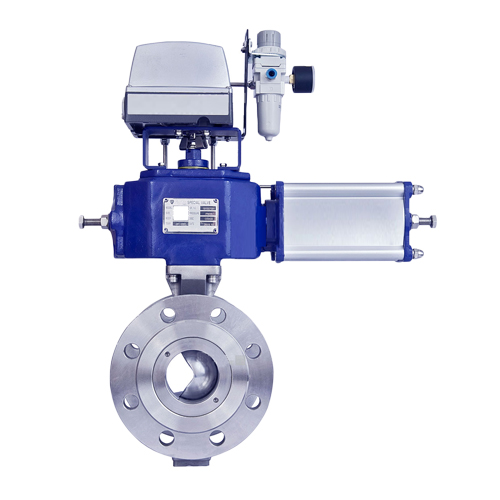

Stainless Steel Trunnion Mounted V Port Flange Ball Valve
Stainless Steel V Port Ball Valve is a kind of trunnion/fixed ball, and only has one seat, not the same as ball valve, which has two seats. But V port ball valve regulation performance is much better than normal ball valve, so it is mostly used in regulation lines. It has a shearing effect between the V-shaped incision and the metal valve seat, which is especially suitable for media containing fibers, small solid particles, slurry and other media. Ball valves are most used as on-off and shut-off valves, but recent years have designed ball valves to throttle and control flow, such as V-shaped ball valves with developments.
Stainless Steel V Port Ball Valve specifications:
Size: 1''~20''
Material: Stainless Steel, Alloy Steel
Pressure: 150LB~600LB/PN10~PN63
Temperature: -29 ~ +450℃
Seat: Metal seat- Class IV, resilient seat-Class VI
Manufacture standard: API/JIS/DIN/HG/JB/GB
Application: Pulp & Paper, Water Treatment, Food & Beverage, Fine Chemical, Power Plant, Steel Industry
Stainless Steel V Port Ball Valve features:
Integral body design offers greater rigidity against fluctuating pipe loads.
Eliminates the leak path associated with two piece body designs.
Both wafer and flange connection are available.
Specially designed V-notch ball provides strong cutting stress and tight sealing.
Hard chromium, nitriding, and HCOF treatments are all available for the ball surface treatment, improving hardness,
abrasion resistance, fatigue resistance, corrosion resistance and performance under high temperature.
Well ground notched ball surface ensures small operating torque and tight seal, especially for metal seated segment valve.
For valve rated under class 150, retainer is casted on valve body to eliminate any possible space between seat ring and body for residue accumulation. Consequently, this ensures perfect seal.
Specialized spring design decreases valve torque while providing force for tight sealing.
Pressure energized seat design offers excellent sealing even at very low differential pressures.
The stem is finely ground to match the actuator excellently, which prevents rocking motion and potential failure of the segmented valve.
API Stainless Steel Ball Valve competitive advantage:
1. GOOD QUALITY
2. RESONABLE PRICE
3. ON-TIME DELIVERY
4. STRICT EXAMINATION
5. SINCERE SERVICE
6. DURABLE IN USE
7. PROFESSIONAL EXPORT EXPERIENCE
