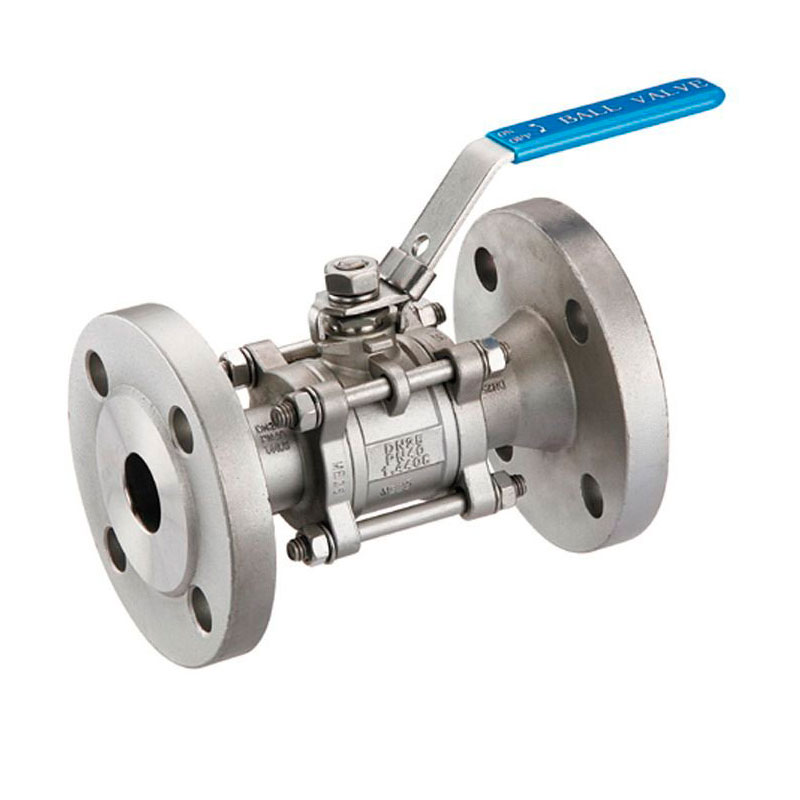

DIN DN25 PN40 Stainless Steel Floating Ball Valves

DIN DN25 PN40 Stainless Steel Floating Ball Valves

Structural Features

• Stainless Steel Material: The valve body is made of 316 stainless steel, offering high strength and good corrosion resistance.

• Floating Ball Design: The ball can float freely under medium pressure, closely fitting the valve seat to achieve an excellent sealing effect.

• Flange Connection: Adopts DIN standard flange connection to ensure reliable installation and tight sealing.

• Fire-Safe Design: Complies with API 607 standards, maintaining sealing performance even in case of fire to prevent medium leakage.

• Anti-Static Device: Built-in anti-static device effectively prevents static accumulation, reducing the risk of fire and explosion.

• Stem Blowout Prevention: The stem features a blowout-proof design to ensure operational safety.

• Compact Design: Small in size and light in weight, facilitating installation and integration into existing systems.

Technical Parameters

• Size: DN25

• Pressure Rating: PN40

• Temperature Range: -20℃ to +180℃

• Materials:

• Valve Body: 316 stainless steel

• Ball: 316 stainless steel

• Stem: 316 stainless steel

• Sealing Material: PTFE, RPTFE

• Connection Type: Flange connection (DIN standard)

• Operation Mode: Manual (handwheel operation), pneumatic

• Design Standards: DIN 3357

• Testing Standards: EN 12266

• End-to-End Dimensions: Compliant with DIN 3202 standards

Application Fields

• Oil and Gas Industry: Used in oil and gas field exploration, gathering, transportation, and processing systems to ensure reliable isolation and control of media.

• Chemical Industry: Suitable for conveying and reaction systems of various chemical media, preventing leakage and ensuring production safety.

• Pharmaceutical Industry: Applied in pipeline systems during pharmaceutical production to ensure media isolation and cleanliness in the drug manufacturing process.

• Food and Beverage Industry: Meets food-grade requirements, used in pipeline systems for food and beverage production to ensure hygiene and safety.

• HVAC: Used in cooling water systems, hot water systems, etc., to ensure efficient operation of the system.

• General Industrial Applications: Suitable for controlling and isolating media such as water, oil, and gas.

Advantages and Value

• High Reliability: The stainless steel material and floating ball design ensure stable operation of the valve in high-pressure and high-temperature environments, reducing maintenance frequency and downtime.

• High Safety: Fire-resistant and anti-static designs, along with reliable sealing performance, effectively reduce leakage risks and protect personnel and equipment safety.

• Easy Installation and Maintenance: The flange connection simplifies installation and allows for convenient maintenance and repair.

• Wide Applicability: Multiple material options and a broad range of pressure and temperature ratings enable adaptation to various complex working conditions and media characteristics.
