STAINLESS STEEL 304 150LB FLOATING FIRE SAFE BALL VALVE

1. Splity body, floating ball type, 150LB and 300LB pressure, fire safe design with graphite sealing and packing.
2. API608, ASME B16.34, API6D standards.
3. Solid ball with RPTFE body seat for zero leakage.
4. Bidirectional sealing to ensure valves operation in pipelines.
5. Blow-out proof stem.
6. Low mounting pad for actuator and locking device with casting handle.
7. B8/8 bolt and nuts.
Availability:
Quantity:
Inquire Add to Basket

  • Q41F

  • MSNL

ASME B16.34 Stainless Steel Flanged Two Piece Ball Valve



Two Piece Flange Ball Valve Applicable Standards:


Ball valves, API608/API6D

Ball valves, ISO 10434/ISO 14313

Fire safe design, API607

Anti-static device, API608

Valve flange, ASME B16.34/B16.5

Face to face dimensions, ASME B16.10

Butt welding ends, ASME B16.25

Inspection and test, API598/API6D


Two Piece Flange Ball Valve Design description:


Full port design

Bolted bonnet, split body

Floating ball type

Blow-out proof stem

Fire safe construction

Anti-static device

Locking device

ISO5211 direct mounting pad available for actuators operations

Flange ends or butt welding ends



Flange Two Piece Ball Valve Design Construction:

MSNL VALVE STAINLESS STEEL FLANGE 150LB BALL VALVE

Flange Two Piece Ball Valve Q41F-150LB Dimensions:

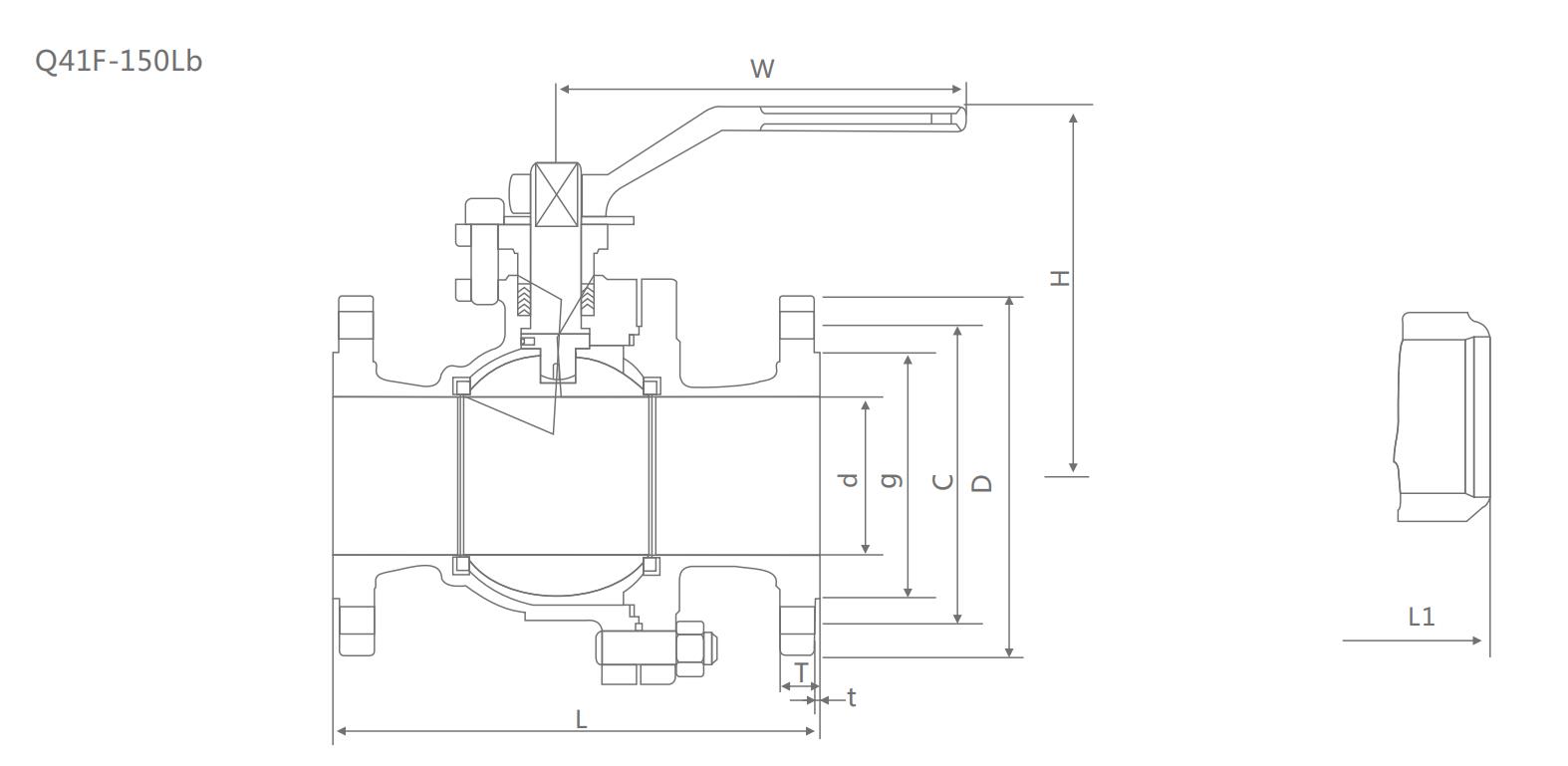

Q41F-150LB FIRE SAFE TWO PIECE FLANGE BALL VALVE

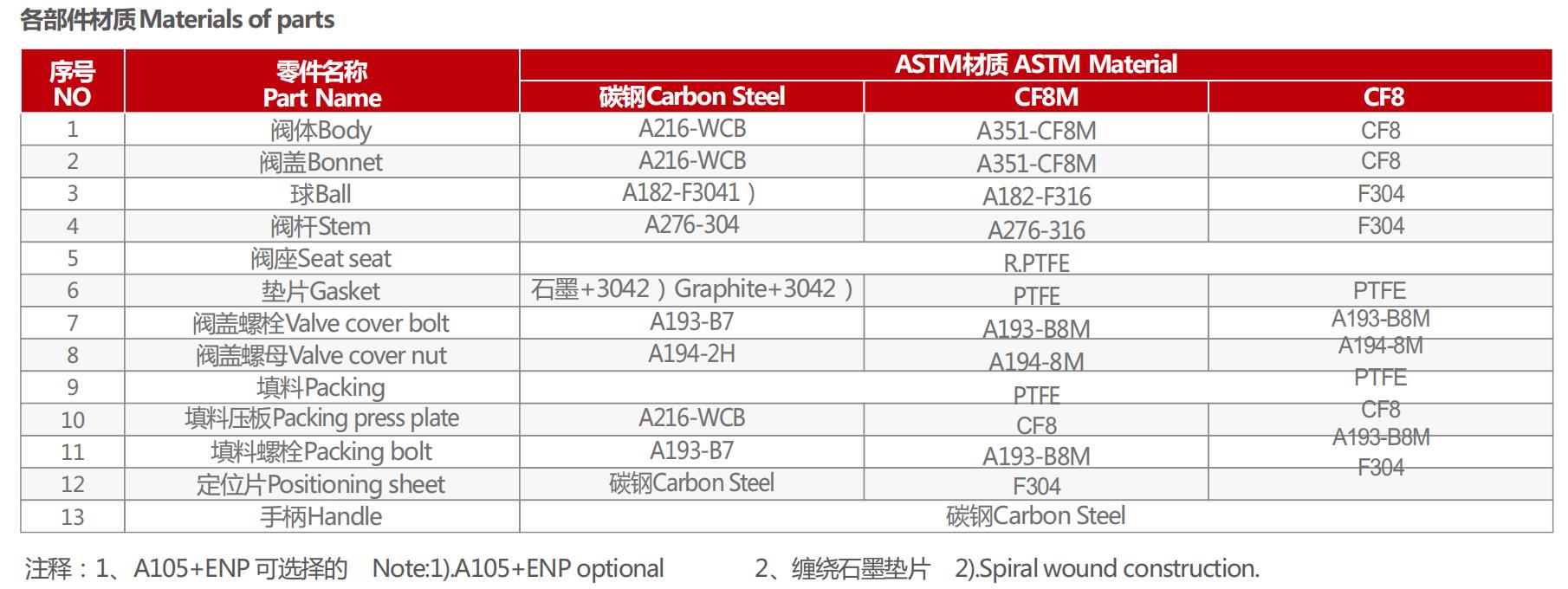

TWO PIECE FLANGE BALL VALVE API ASME MATERIALS LIST

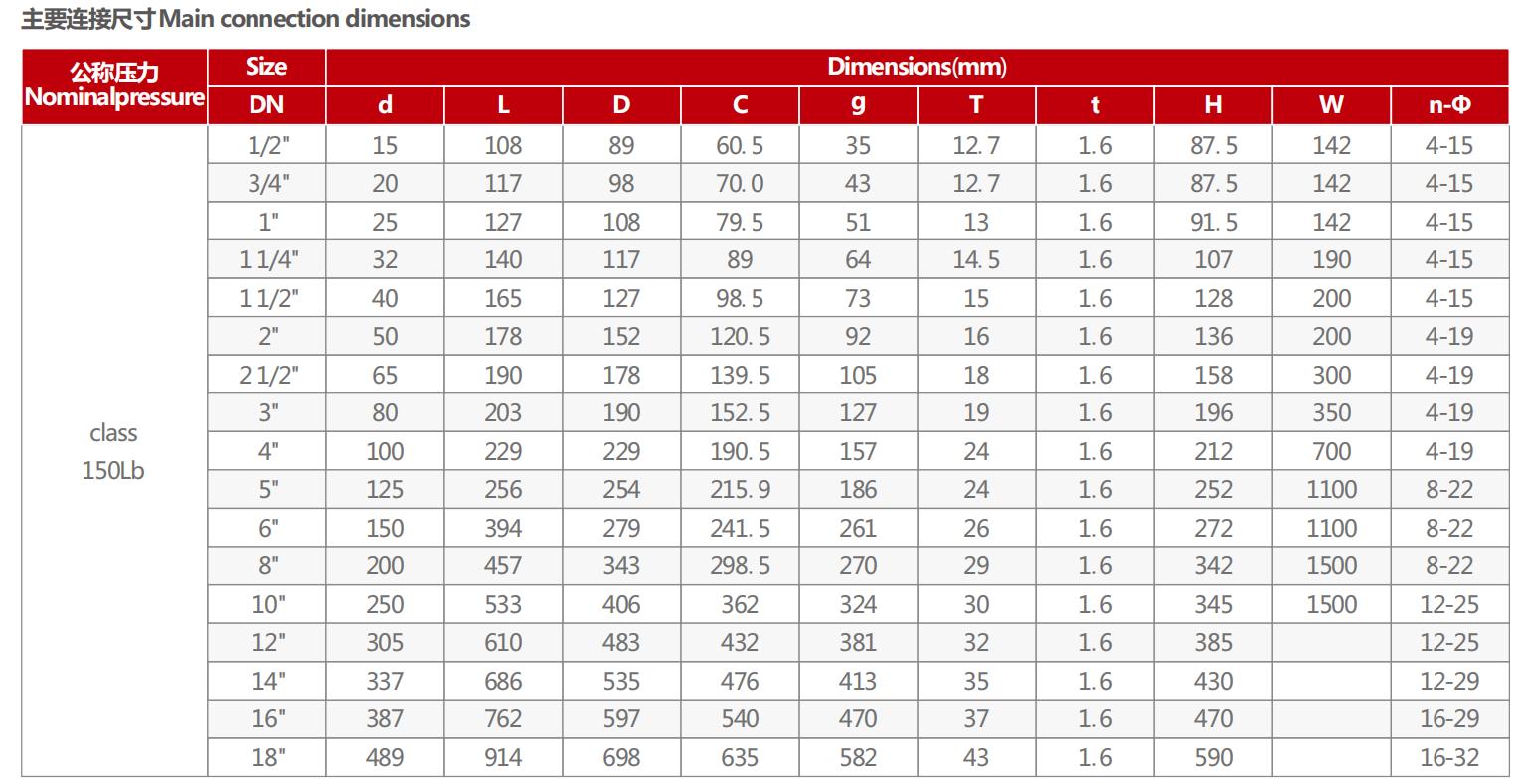

2PC 150LB FLANGE BALL VALVE DIMENSIONS

300LB and 600LB flange ball valve dimensions

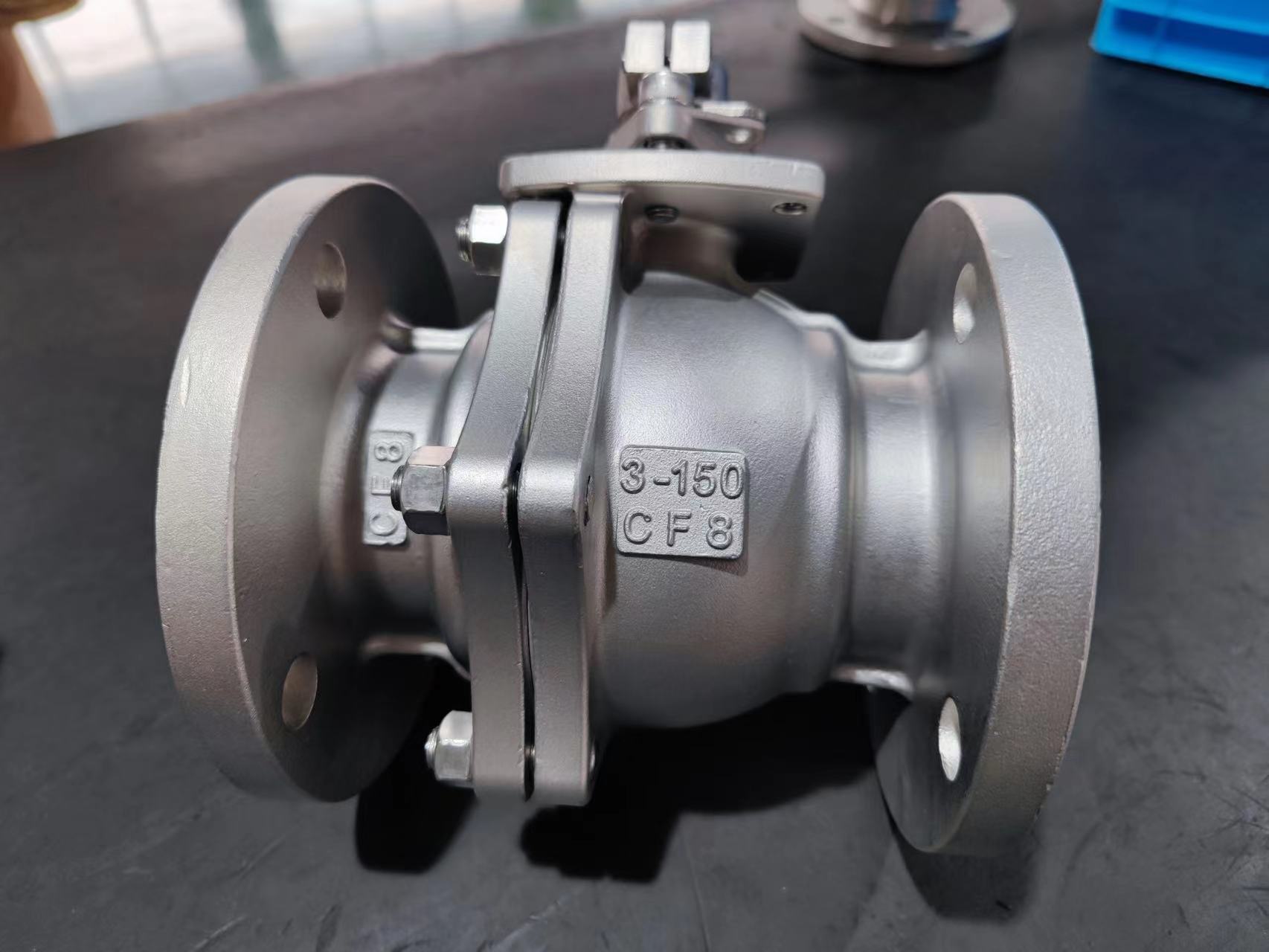

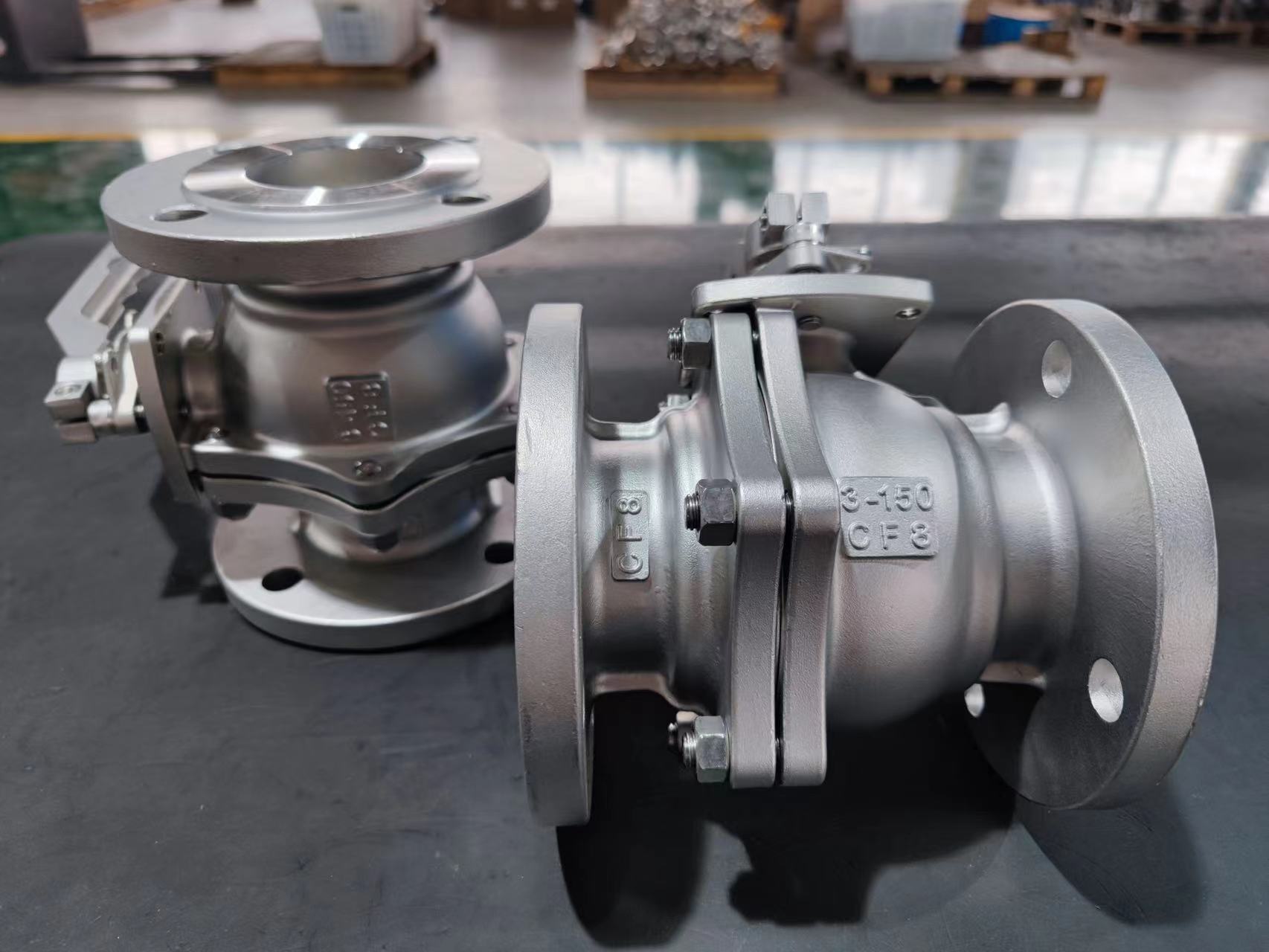

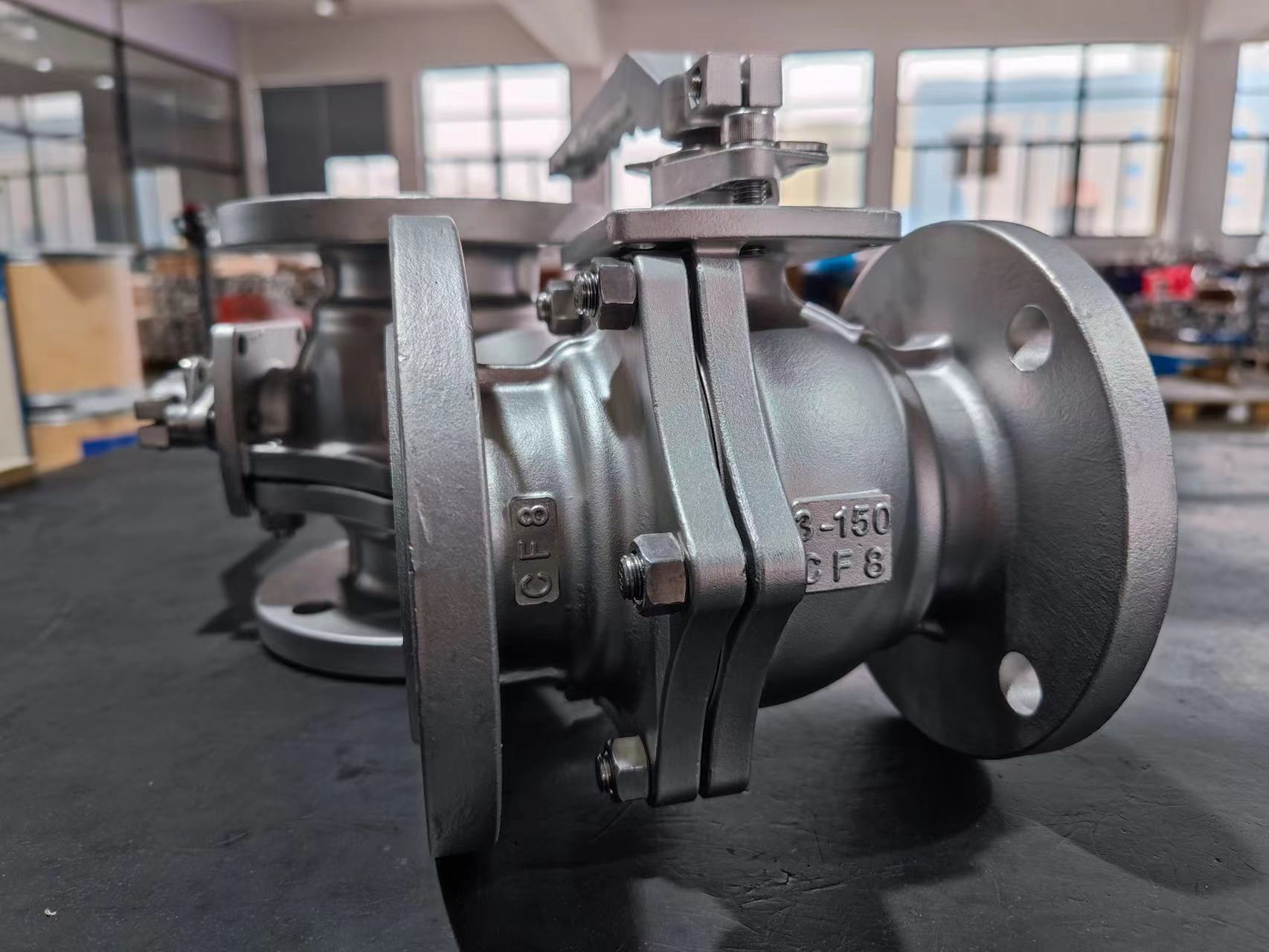

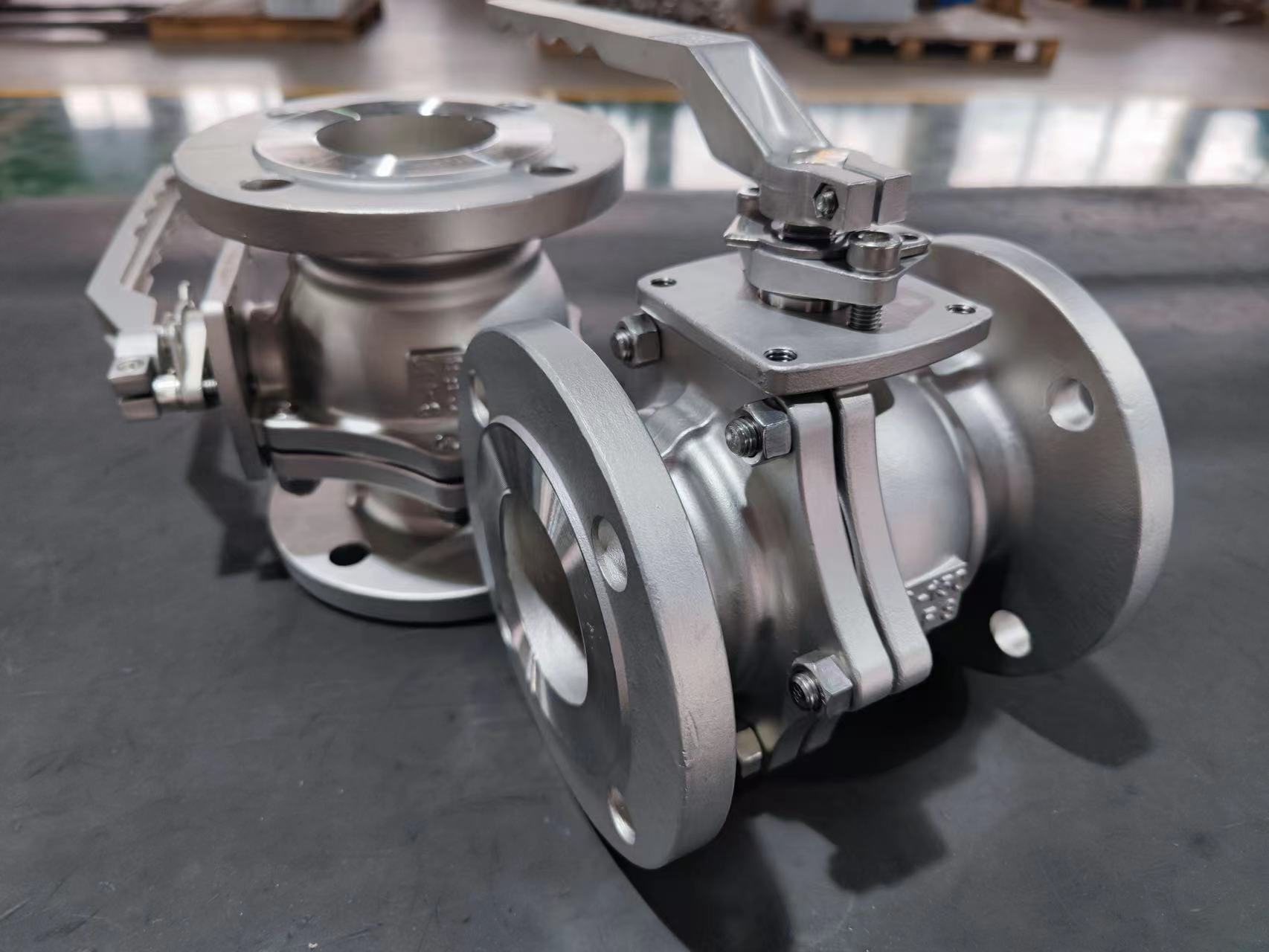

150LB API608 FLANGE FLOATING BALL VALVE 304 316STAINLESS STEEL FLANGE FLOATING FIRE SAFE BALL VALVE MASONEILAN VALVEMASONEILAN VALVE SS BALL VALVE 150LBPTFE SEAT 150LB 300LB 304 316 STAINLESS STEEL BALL VALVE LOCKING LEVER
