Q11F
MSNL

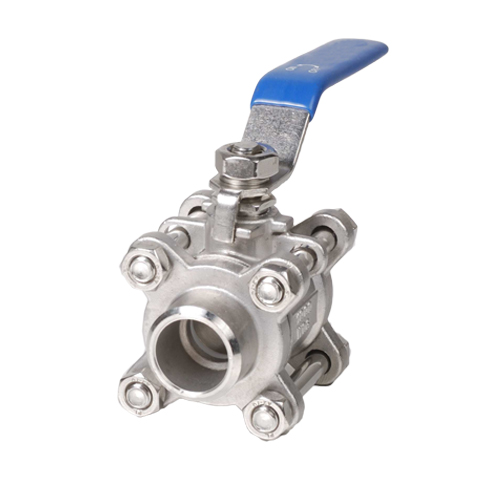

Stainless Steel Three Piece Body Full Port Floating Butt Welded Ends Ball Valve(1000PSI with Lever Operated)
3PC Butt Welded Ball Valve consist of three piece body with bolts and nuts. Generally speaking, 3pc ball valve in butt welded ends could bear higher pressure than threaded ends. 3PC ball valve use PTFE or RPTFE or PPL or PEEK seat to meet differnet temperature needs. 3PC stainless steel ball valve, is more useful than 1pc and 2pc, it's more convenient than 1pc and 3pc during maintenance. It is full port design, medium fluid rate is high. 3PC butt welded ball valve should use higher temperature seat and seal, because when install it, need to make welding, so temperature is very high, if don't use higher temperature seat and seal, it will be easy for leakage.
Product Name | Stainless Steel Three Piece Body Full Port Floating Butt Welded Ends Ball Valve |
1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, etc. |
2. Size | 1/4'' 3/8’’ 1/2’’ 3/4’’ 1’’ 1-1/4’’ 1-1/2’’ 2’’ 2-1/2’’ 3’’ 4’’ |
3. Thread standard | ISO9001 & CE, TS |
4. Port | Full Port |
5. Working Pressure | 1000WOG( PN64/6.4 Mpa) |
6. Connection Ends | End connections: All to B16.34; NPT to B1.20.1; socket weld to B16.11; butt weld to B16.25; flanged to B16.5 |
7. Working Temp. | -20~300℃, or according to customer requirements for different industry. |
8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
9. Operated | Handle operated, Locking device is option |
10. Inspection & Testing | According to API598 |
3PC Screwed Ball Valve Design Features:
1. High quality investment castings improve dimensional control and reduce porosity; certified material test reports are available upon request.
2. High Temperature Seats and Seals
3. Blow-Out-Proof Stem. Stem is bottom loaded to prevent removal when valve is in service
4. Temperature Range: -20° to 600° F (depending on seats)
5. Connection ends: NPT/BSP/BSPT/DIN259/DIN2999, Butt Welding, Socket Welding.
6. Three piece construction, swing-out construction makes the valve easy to repair in line 3PC ball valve delivers exceptional performance and economy in a 3-piece design.
3PC Butt Welded Ball Valve competitive advantage:
1. We have professional inspectors to control every production process to guarantee the quality of our products.
2. 18 Months warranty after delivery.
3. Offer free samples for testing before orders.
4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.
5. 100% leakage testing.
6. 100% inspection & testing for every production process before delivery.
7. Light torque for easy operation & long service life.
