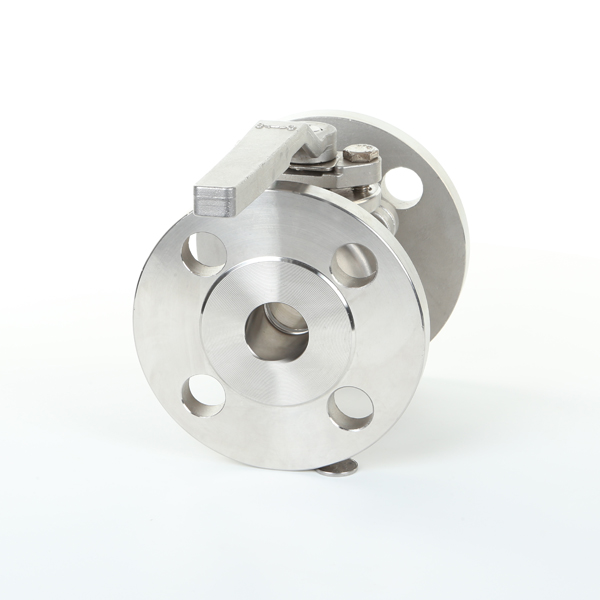

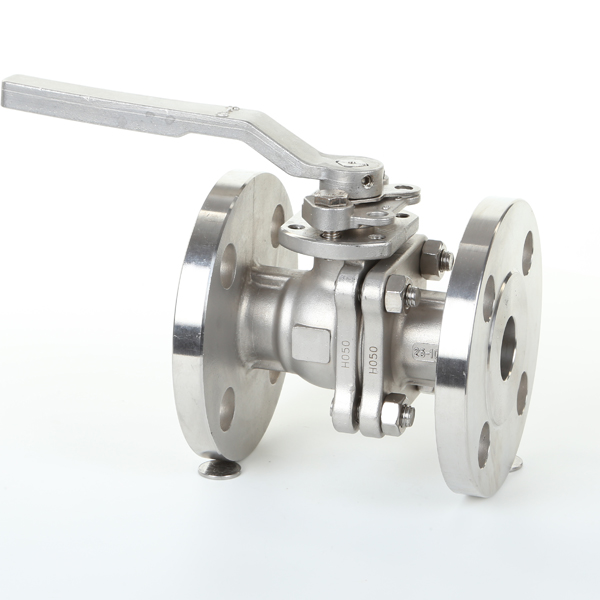

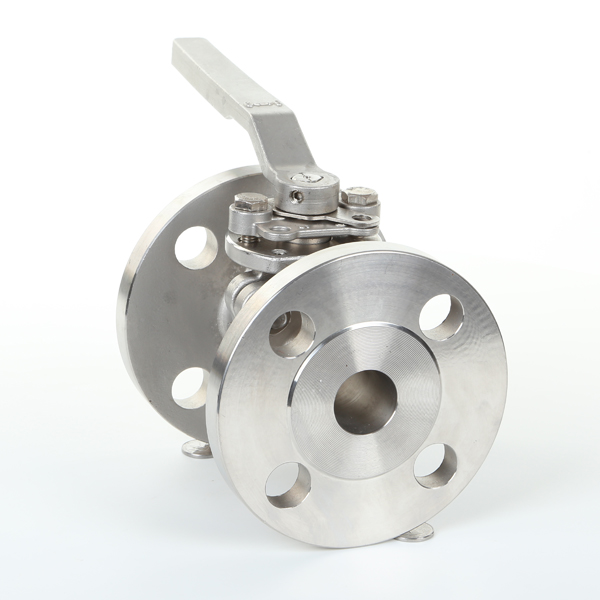

Floating Flange JIS10K Stainless Steel Ball Valve with ISO5211 Mounting Pad

Floating Flange JIS10K Stainless Steel Ball Valve with ISO5211 Mounting Pad

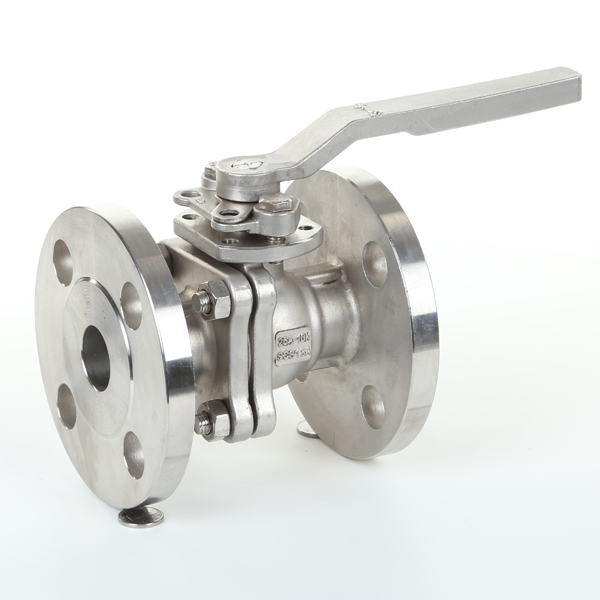

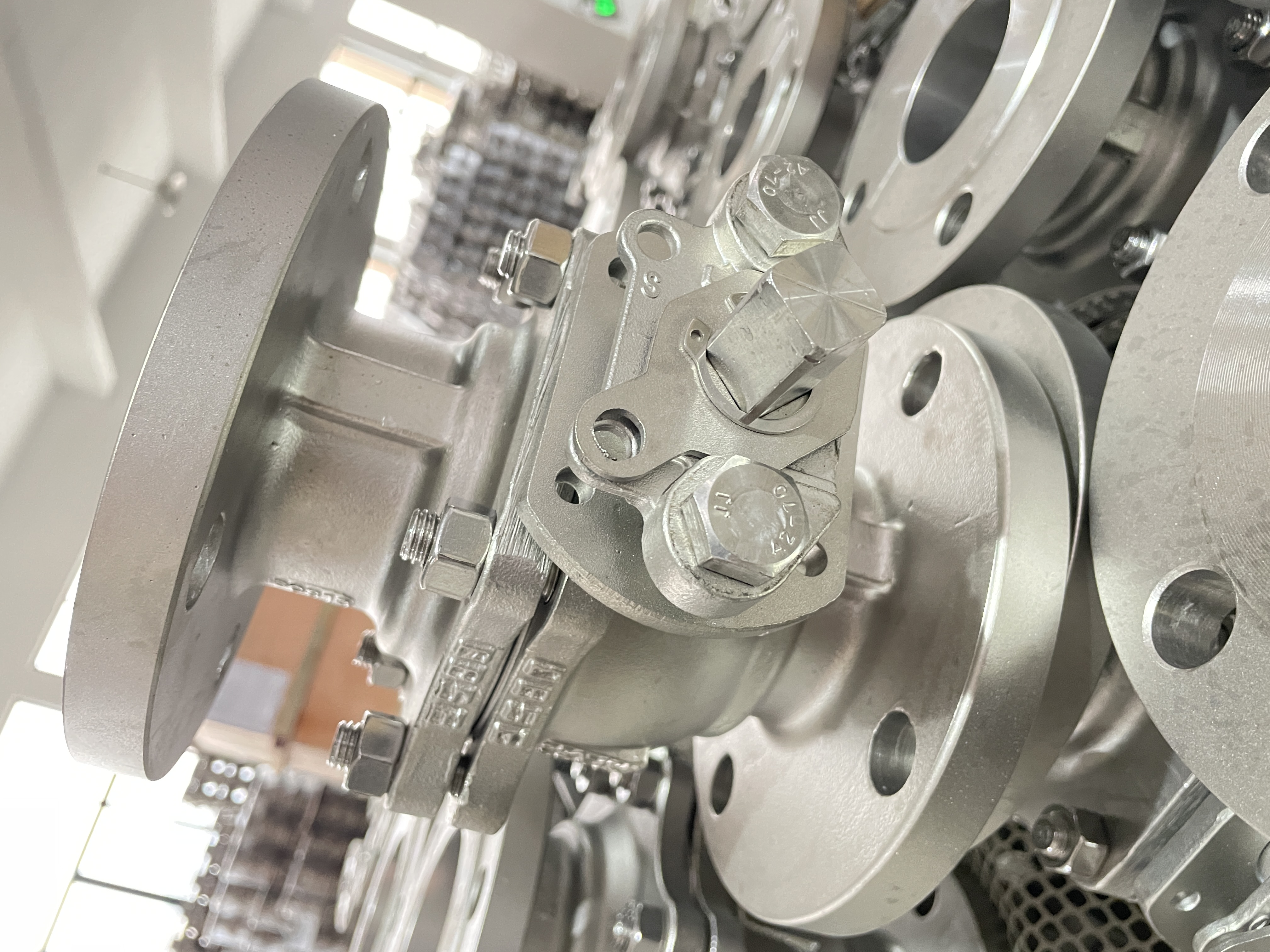

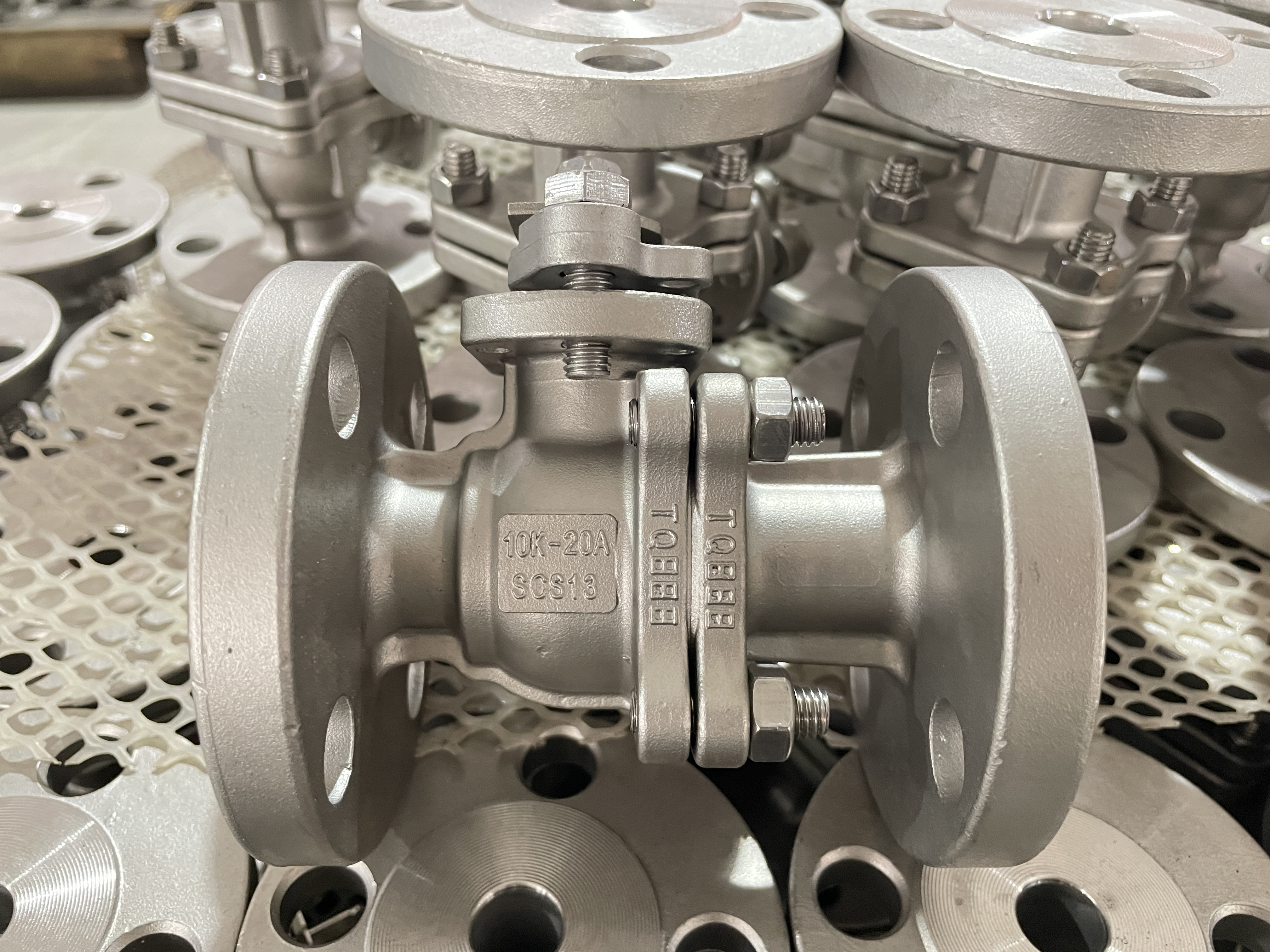

JIS10K flange stainless steel ball valve conforms to the JIS standard and is widely used in countries like Japan, Korea, and Vietnam. However, China is the largest manufacturing hub for this product. The JIS10K ball valve is a soft seat type, ensuring zero leakage and providing enhanced safety compared to metal seats. The main seat materials used for this valve include PTFE, RPTFE, PTFE+Carbon, PTFE+glass fiber, PPL, PEEK, VITON, and more. The floating ball valve has a compact size, making it easy to install and maintain, and it has a long lifespan. Additionally, the floating JIS10K flange ball valve requires minimal torque to operate, and it is equipped with an ISO5211 mounting pad for actuators. Stainless steel JIS10K ball valves can be manufactured as either floating or fixed type, depending on the pressure requirements of the pipelines. While the floating type can be operated with light torque, it is recommended to use a worm or actuator for the trunnion type ball valve.

JIS10K Stainless Steel Ball Valve design description:

1. Full port

2.  Flange connection type:JIS 10K/20K/40K

3. Size: 1/2’’ to 8’’ (DN15-200)

4. Material:SCS13(A351-CF8),SCS14(A351-CF8M),SCS13A(A351-CF3),SCS14A(A351-CF3M)

5. Fire-Safe Design According to API 607

6. Applicable Medium: General oil, Gas & Water applications

7. Blow-out Proof Stem Design

8. Temperature Range: -29°C to 250°C

JIS10K Stainless Steel Ball Valve technical specification:

1. Design & Manufacture standard: JIS B2071

2. Face to face dimension standard: JIS B2002

3. Flange standard: JIS B2220

4. Test & Inspect standard: JIS B2003.

JIS10K Stainless Steel Ball Valve material list:

 NoteAll the data should be confirmed with the approved drawings of manufacturer.
