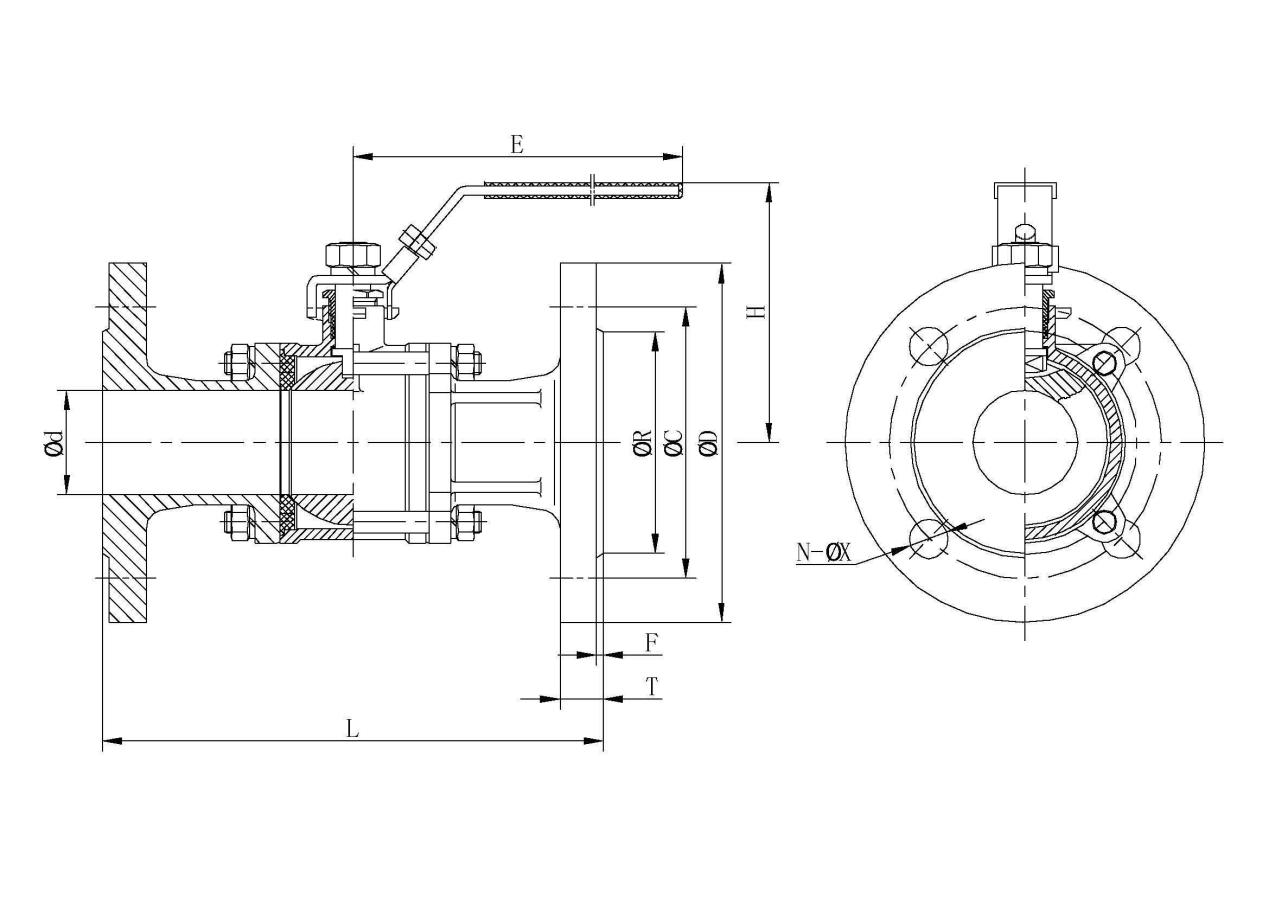

3 Piece Stainless Steel Floating Flange Ball Valve
3PC Flange SS Ball Valve design description:
1. Size: 1/2’’~6’’
2. Material: SS304, SS316, SS304L, SS316L, Alloy steel, etc.
3. Pressure: PN16/PN25/PN40
4. Floating ball, full bore
5. ISO5211 mounting pad option
6. Blow-out proof stem design
7. PTFE/RPTFE seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition)
8. Fire-proof and anti-static design
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
3PC Flange SS Ball Valve technical specification:
1. Design & Manufacture standard: EN13709
2. Face to face dimension standard: EN558
3. Flange standard: EN1092-1
4. Test & Inspect standard: EN12266
3PC Flange SS Ball Valve competitive advantage:
1. Sturdy construction
2. Long service life
3. Dimensional accuracy
4. 18 Months warranty
5. Free samples
6. OEM manufacturer
7. 100% inspection & testing before delivery
3PC Flange SS Ball Valve, widely used in water treatment chemical, natural gas and oil and other industries. Technology to reach the international leading level, provide process design, machinery manufacturing, installation, technical training. Professional high quality valve supplier, complete engineering valve solution.Suitable medium: Oil, gas, water and some corrosion medium, it is soft seat to ensure zero leakage.
3 Piece Stainless Steel Floating Flange Ball Valve
3PC Flange SS Ball Valve design description:
1. Size: 1/2’’~6’’
2. Material: SS304, SS316, SS304L, SS316L, Alloy steel, etc.
3. Pressure: PN16/PN25/PN40
4. Floating ball, full bore
5. ISO5211 mounting pad option
6. Blow-out proof stem design
7. PTFE/RPTFE seat seal( Seat seal material could be decided by customer’s request or according to valve’s medium & temp. condition)
8. Fire-proof and anti-static design
9. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
3PC Flange SS Ball Valve technical specification:
1. Design & Manufacture standard: EN13709
2. Face to face dimension standard: EN558
3. Flange standard: EN1092-1
4. Test & Inspect standard: EN12266
3PC Flange SS Ball Valve competitive advantage:
1. Sturdy construction
2. Long service life
3. Dimensional accuracy
4. 18 Months warranty
5. Free samples
6. OEM manufacturer
7. 100% inspection & testing before delivery
3PC Flange SS Ball Valve, widely used in water treatment chemical, natural gas and oil and other industries. Technology to reach the international leading level, provide process design, machinery manufacturing, installation, technical training. Professional high quality valve supplier, complete engineering valve solution.Suitable medium: Oil, gas, water and some corrosion medium, it is soft seat to ensure zero leakage.
